Birlea Corfu Bunk Bed Assembly Instructions

FURNITURE FURNITURE
Before you start, here is some helpful advice
1. We suggest you spend a short time reading through this
leaflet and then follow the simple step by step instructions.
2. It is important for you to follow the instruction carefully.
Assembling the bed without following the instructions
might cause the bed to collapse and lead to fatal injuries.
3. To ensure an easier assembly, we strongly advise that all fittings
are only finger tightened during initial assembly. Only upon
completion of the assembly, should all fixing points be
fully tightened.
4. Do not use this bed if any parts are missing, damage or worn.
5. Retain these instruction for future reference.
6. In case for any claims, please retain this product original packing
What is included in this pack?
HARDWARE LIST
NAME
Upper Frame
Bottom Frame
Bottom Base
Top Base
Back Rail
Front Rail
Ladder
Frame Connector
M4 Allen Key (Small) - 2pcs
M5 Allen Key (Big) - 1pc
6 5 4
Top Base
2 3
Bo tto
m Ba
se
Birlea Furniture
R R
Instructions for assembly and installation

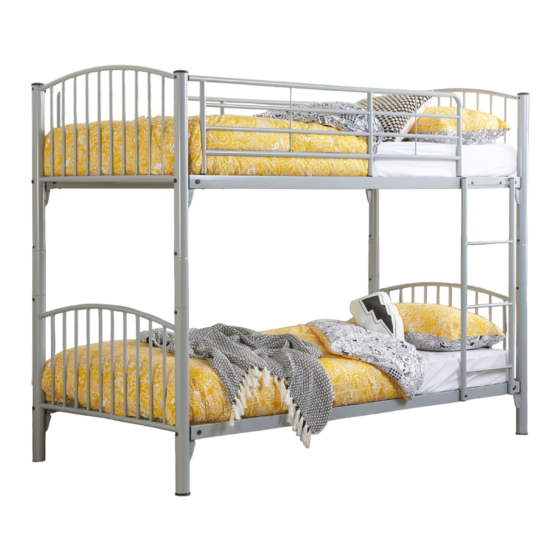

Corfu Bunk Bed
IMPORTANT!
Q'TY
NO
01 02
02 02
03 01
04 01
05 01
06 01
07 01
08 04
1
8
7
Health & Safety
1. DO NOT JUMP ON THIS BED!.
2. DO NOT use this bed unless all fixings are tightly secured.
3. Periodically check all bolts, screws & fixings to ensure they
are tightly secured.
4. Always use on a level and even surface.
5. Warning! if this bed is on a laminated floor, you must place
some protection under all legs to stop the bed from moving.
If this is not adhered to, there is no guarantee if the
bed collapses.
7. Always use on a level and even surface.
8.
Be aware of the danger of young children (under 6) falling
from the upper bunk. It is not advisable for children under
6 years of age to sleep on the top bunk.
9. Recommended thickness of mattress is max 200mm.
10. Caution! Children might strangle in items such as ropes,
strings, cords harnesses & belts strings attached to or
hang on the bunk bed.
11. Warning! Children can become trapped between the bed &
the wall. To avoid risk of serious injuries, please aware of the
distance between the top safety barrier & the wall.
12. This bunk bed is comply to EN 747 - 1 & 2 [2012]
How do I care for this Corfu Bunk Bed?
1.
Keep away any sharp object from the metal part of
the bed.
What is included in this pack?
PARTS LIST
NAME
M8 Metal
Square Nut
M8 x 95mm
JCBC Screw
M6 x 45mm
JCBC Screw
M6 x 15mm
JCN Nut
M6 x 80mm
JCBC Screw
M6 x 35mm
JCBC Screw
M6 Cap Nut
19mm M6 Flat
Round Washer
B203 - 50mm Black
Round Stopper
PP22 (2") - 50mm
Beige Round Cap
B018 : Black
Round Stud
Vendor Code: S000053
QTY.
FIGURE NO.
A
08
B
08
C
04
D
04
E
09
F
04
G
02
H
02
I
04
J
04
K
10
