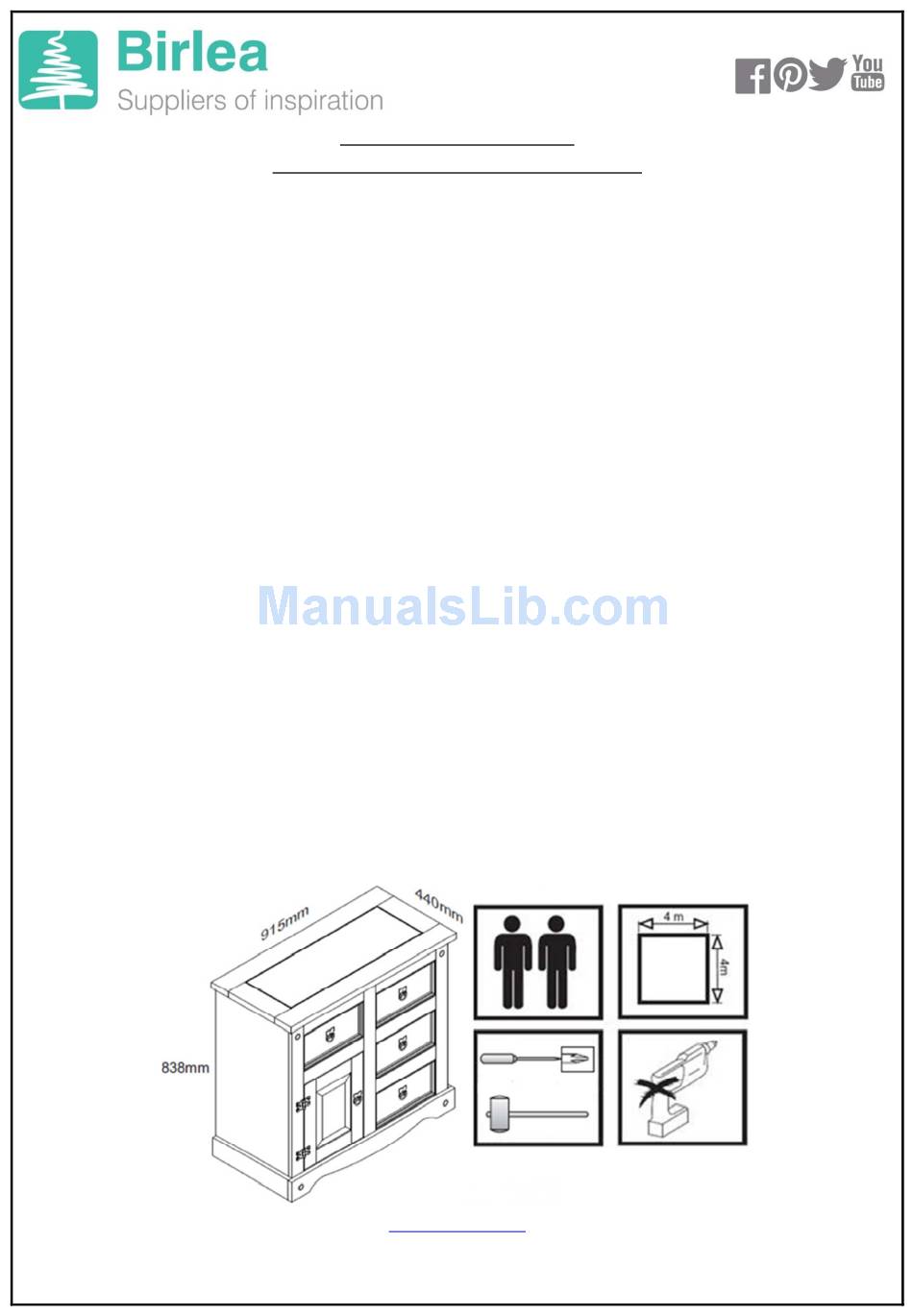

ASSEMBLY INSTRUCTIONS
CORONA 1 DOOR 4 DRAWER SIDEBOARD
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR CORONA 1 DOOR
4 DRAWER SIDEBOARD.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ASSEMBLY INSTRUCTIONS:
Please check contents and read instructions carefully before commencing assembly.
To avoid damages assemble the item on a soft, clean surface.
Assemble in the room of use.
HEALTH & SAFETY:
DO NOT use this item if any parts are missing, damaged or worn.
DO NOT use this item unless all fixings are secured.
Always use on a level, even surface.
It is recommended that two people handle and assemble the item.
Keep small parts out of the reach of children.
CARE & MAINTENANCE:
This product is manufactured in pine which is a wood with natural characteristics including knots, grains,
clusters or indentations.
On unpacking the item you may notice an odour due to the production process, however, this will disappear
after a period of time.
DO NOT place the item next to a radiator or direct sunlight as this item is susceptible to temperature
change. It is recommended to maintain an even room temperature with no sudden fluctuations.
For general cleaning use a duster or damp cloth (almost dry) not wet – do not use soap and water,
detergents, aerosol sprays or any polish as the use of these materials would invalidate any claims.
You may wish to re-treat the surface to maintain the original finish. This can be done using block wax (un-
perfumed). Please follow the manufacturer's instructions carefully.
DO NOT place the item onto wet or damp flooring as staining may occur to the floor.
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the item as this will damage the base.
Keep any sharp objects away from the item.
www.birlea.com
