ASSEMBLY INSTRUCTIONS

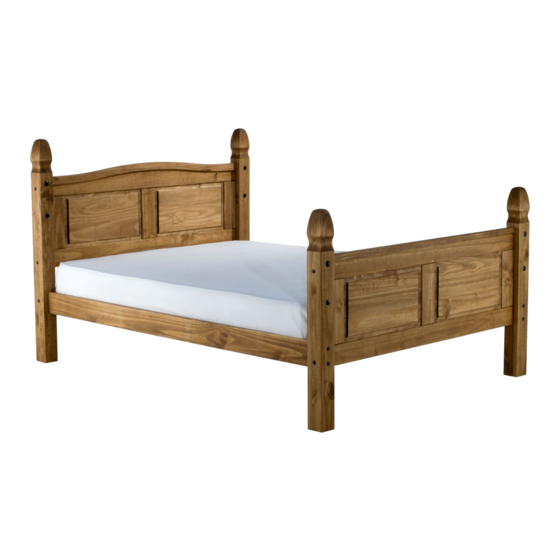

4'0 CORONA HIGH END BED
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR
USING YOUR 4'0 CORONA HIGH END BED.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT jump on this bed frame.
DO NOT use this bed frame if any parts are missing, damaged or worn.
DO NOT use this bed frame unless all fixings are secured.
Always use on a level, even surface.
WARNING:
If this bed is placed on a non-carpeted floor you must place some protection under all legs to stop
the bed frame from moving. If this is not adhered to there is no guarantee if the bed frame collapses.
CARE & MAINTENANCE:
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the bed frame as this will damage the legs.
Always lift the bed with two people to reposition.
Keep any sharp objects away from the frame.
4 m
www.birlea.com
Page 1 of 7
Advertisement
Related Manuals for Birlea COROB4HPINV2
Summary of Contents for Birlea COROB4HPINV2
- Page 1 Periodically check all screws & fixings to ensure they are secure. DO NOT push the bed frame as this will damage the legs. Always lift the bed with two people to reposition. Keep any sharp objects away from the frame. www.birlea.com Page 1 of 7...
- Page 2 Vendor: S000238 Left headboard post (110 x 8.2cm) - Box 2 1 Headboard panel (117 x 49cm) - Box 1 Right headboard post (110 x 8.2cm) - Box 2 2 Headboard rail (117 x 9.2cm) - Box 1 Left footboard post (88 x 8.2cm) - Box 2 Right footboard post (88 x 8.2cm) - Box 2...
- Page 3 Step 1: Join the support legs (11) to the centre rail (9) using hardware N and G. Vendor: S000238 Insert hardware part B to the side rails (8) using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Insert hardware part A to the headend panel (1), footboard panel (3) and Headboard rail (2) using a small mallet (not provided).
- Page 4 Step 3: Attach the left headboard post (4) and right headboard post (5) to the headend panel (1) Vendor: S000238 and headend rail (2) using hardware parts N and H DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 4: Attach the left footend post (6) and right footend post (7) to the footend panel (3) using hardware parts N and H.
- Page 5 Step 5: Fix hardware parts L to the headboard rail (2) and footboard panel (3) using hardware part C Vendor: S000238 and a screwdriver (not provided) DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 6: Attach the side rails (8) to the headboard posts using hardware parts N, J and K.
- Page 6 Step 7: Attach the footend using hardware parts N, J and K and fix the centre rail (9) in place using Vendor: S000238 hardware parts E and F with an M11 spanner (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8: Fix slats (10) to the side rails (8) and centre rail (9) using hardware parts O and D with a screwdriver (not provided).
-
Page 7: Additional Information
• If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. • Why don’t you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on Instagram.
