FabiaTech FX5511 Users Quick Reference

Version 1.0

1. Brief

The FX5511 is a compact size embedded system with Intel Celeron J1900 quad core processor board
inside. This user's quick reference provides the I/O outlets description and their pin assignment.

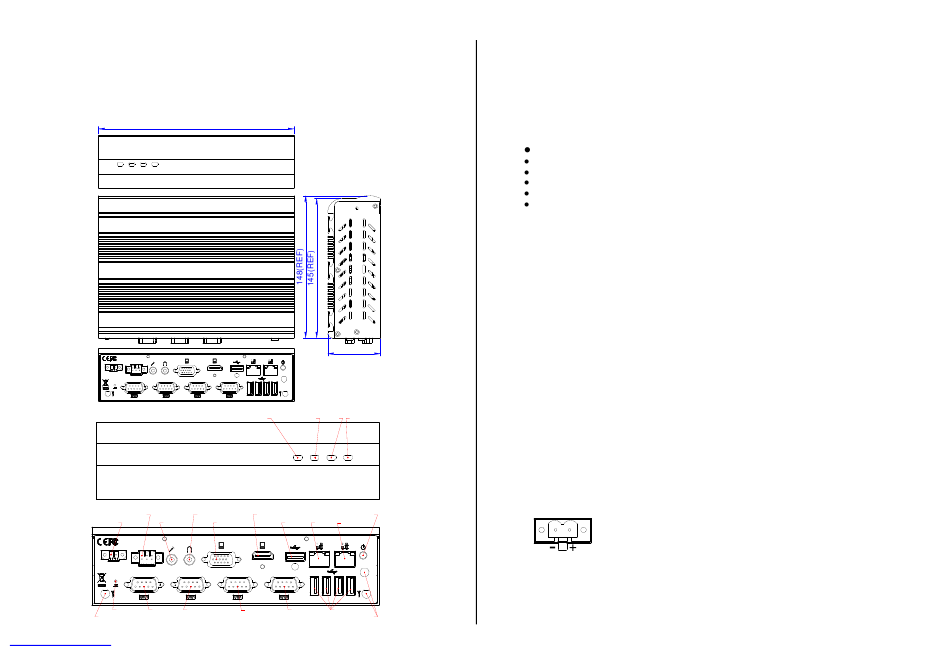

2. Dimensions (in mm) and Front/Real Panel Information

D I/O
-
1 0 IN
-
+
DC12~24V +
12~24V 1 0 OUT
CAN
4 3
DIGITAL I/O
DC IN MIC
D I/O
-
1 0 IN
-
+
DC12~24V +
12~24V 1 0 OUT
CAN
4
RESET COM4 COM3/CAN
ANTENNA
www.fabiatech.com
FX5511 User's Quick Reference
203
55
2
1
2 1
LINK/ACT1 LINK/ACT2 HDD POWER
EAR-PHONE DISPLAY POWER BUTTON
CRT USB
LAN1 LAN2
1 2
3 2 1
COM2 COM1 USB
ANTENNA

3. Packing List

A. Standard Items
1 FX5511 embedded system.
2 SATA cables (signal & power) and 4 screws for fixing and connecting a 2.5" hard disk drive.
1 2-pin apartable terminal block and 4 screws for full size mini PCIe module installation.
1 6-pin apartable terminal block for digital I/O input.
1 compact disc includes software utilities and manuals.
B. Optional Items
Half size mPCIe module adapter kit (AK1006, 1 piece of metal with 2 screws, P/N: 0606010028G)
Wall mounting kit (FX5501K1, 2 stands with 4 screws, P/N: 0606010009G)
Panel back mounting kit #1 (FX5407K3, 2 pieces of metal with 2+10 screws, P/N: 0606010038R)
Panel back mounting kit #2 (FX5504K1, 1 stand with 2 screws, P/N: 0606010012G)
Rack mounting kit (FX5507K2, 1 piece of metal with 5+4 screws, P/N: 0606010029G)
Din Rail mounting kit (AK1010, 3 pieces of metal with 2+4 screws, P/N: 0606010046G)

4. Features

* Processor Board
Intel Celeron J1900 processor (2.0GHz to 2.42GHz, 4C/4T, 2MB Cache, 1333MHz FSB, 10 Watts)
with 4GB DDR3L RAM.
* I/O Outlets
Two 10/100/1000 base-TX Ethernet ports.
5 USB ports, 2 RS-232, 1 RS-232/422/485, and 1 RS232/CAN BUS serial ports.
1 VGA and 1 HD display port, 1 Earphone and 1 Microphone connectors.
2 sockets for mini PCIe modules, especially for WLAN/GPRS/3G modules.
1 2-pin terminal block for power input with 1 power push button.
1 6-pin terminal block for digital I/O input.
* Storage Bay
1 CompactFlash socket and 1 SD socket.
1 SIM socket for GPRS/3G moduals.
One 2.5" SATA hard disk space.
* Power requirement
+12 ~ +24V DC, 2.2A maximum (1.2A typical) with 19V input voltage.
* Dimensions
148mm(D) x 203mm(W) x 55mm(H)

5. I/O outlets and LED Indicators

A. Power Connectors (DC +12 to +24V, 50W minimum)
DC12~24V
Terminal Block
B. LAN LED Indicators (RJ45)
The LAN port is a RJ45 connector with 2 LEDs. The orange LED indicates data is accessing and the
green LED indicates on-line status.
