1. Brief
The FX5401 is a compact size embedded system with 3.5" low-power Pentium CPU module inside.
This user's quick reference provides the I/O outlets description and their pin assignment.

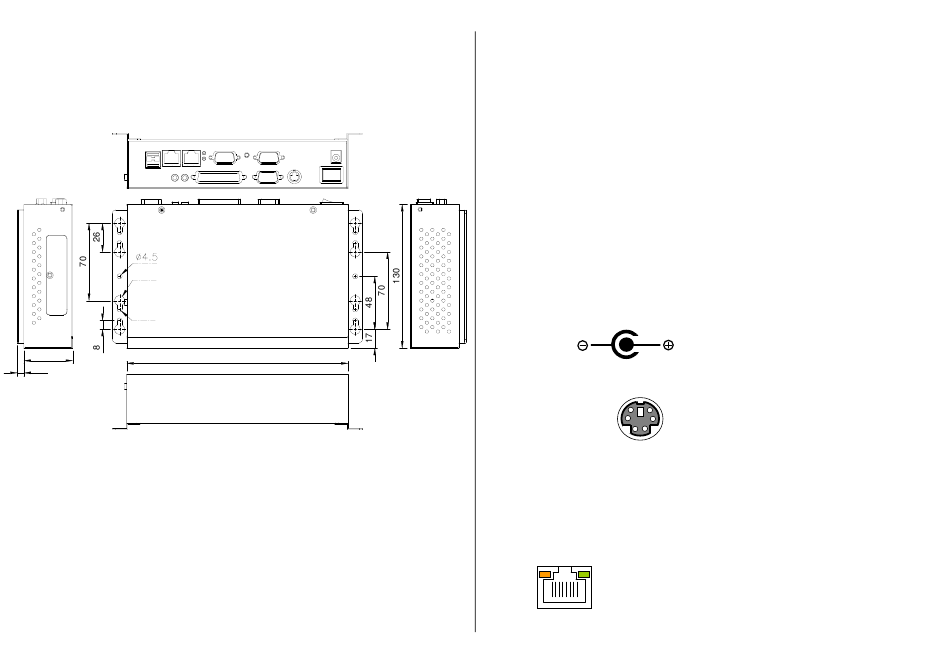

2. Dimensions (in mm)
R4.5
R2.3
44.2
6
3. Packing List
1 FX5401 embedded system.
1 AC to DC24V power adapter and 1 AC power code.
1 2.5" HDD clamp holder accessory pack.
1 Y-type (3-terminal) PS/2 keyboard plus mouse port adapter cable. (Optional)
2 L-type universal fixers and 6 screws.
6 stamp pads for this enclosure.
1 compact disc includes software utility.
1 hard copies of this quick reference.
FX5401 User's Quick Reference
200
4. Features
*
Processor Board
FB2530 inside, 300 MHz low-power Pentium CPU with 128MB SDRAM.
*
I/O Outlets
Two 100/10 base-TX Ethernet ports.
2 USB ports, 2 RS-232 serial ports, and 1 parallel port.
1 CRT interface and PS/2 compatible keyboard/mouse interface.
1 Line-In and 1 Line-Out ear-jet connectors.
1 DC-In plug connector.
1 Push bottom reset switch.
1 power LED and 1 hard disk/CompactFlash access LED.
*
Storage Bay
1 CompactFlash slot with plug-in aperture and cover.
One 44-pin DiskOnModule space, or
One 2.5" hard disk space with HDD clamp holder.
*
Power requirement
+24V with 25% tolerance, 0.5A maximum.
*
Dimensions
(1U
height)
130.0mm(D) x 200.0mm(W) x 44.2mm(H)
5. I/O outlets and LED Indicators
A. Power Connector
B. Keyboard and Mouse Connector
(Front View)
Standard PS/2 keyboard can be plugged into this connector without any adapter cable. If PS/2
keyboard and mouse will be used simultaneously, an Y-type (3-terminal) adapter cable is needed.
C. LAN Connectors and LED Indicators (RJ45)
The left side LED (orange) indicates data is accessing and the right side LED (green) indicates
on-line status. (When lighted indicates on-line and off indicates off-line).
Pin 1: TPTX+
Pin 2: TPTX-
Pin 3: TPRX+
Pin 4: FBG1
8
1
(Front View)
Page 1/2
DC +24V, 25% tolerance
0.8A minimum
(6-pin mini-DIN,
Female)
Pin 5: FBG1
Pin 6: TPRX-
Pin 7: FBG2
Pin 8: FBG2
