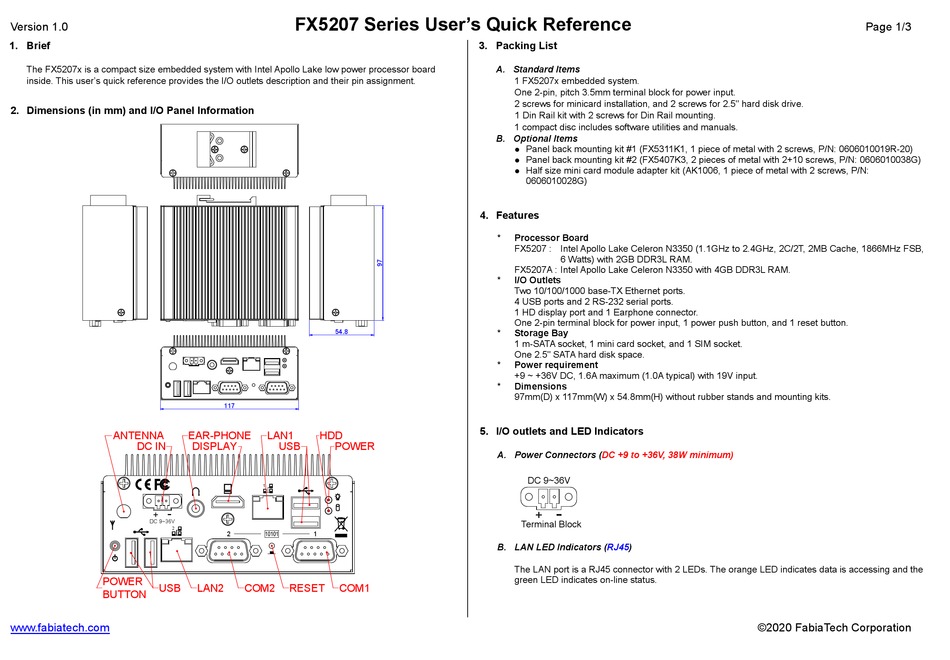

FabiaTech FX5207 Series Users Quick Reference

Version 1.0

1. Brief

The FX5207x is a compact size embedded system with Intel Apollo Lake low power processor board
inside. This user's quick reference provides the I/O outlets description and their pin assignment.

2. Dimensions (in mm) and I/O Panel Information

ANTENNA
DC IN
-
+
DC 9~36V
2
POWER
USB
BUTTON
www.fabiatech.com
FX5207 Series User's Quick Reference
54.8
117
EAR-PHONE LAN1 HDD
DISPLAY USB POWER
1
2 1
LAN2 COM2 RESET COM1

3. Packing List

A. Standard Items
1 FX5207x embedded system.
One 2-pin, pitch 3.5mm terminal block for power input.
2 screws for minicard installation, and 2 screws for 2.5" hard disk drive.
1 Din Rail kit with 2 screws for Din Rail mounting.
1 compact disc includes software utilities and manuals.
B. Optional Items
Panel back mounting kit #1 (FX5311K1, 1 piece of metal with 2 screws, P/N: 0606010019R-20)

Panel back mounting kit #2 (FX5407K3, 2 pieces of metal with 2+10 screws, P/N: 0606010038G)

Half size mini card module adapter kit (AK1006, 1 piece of metal with 2 screws, P/N:

0606010028G)

4. Features

* Processor Board
FX5207 : Intel Apollo Lake Celeron N3350 (1.1GHz to 2.4GHz, 2C/2T, 2MB Cache, 1866MHz FSB,
6 Watts) with 2GB DDR3L RAM.
FX5207A : Intel Apollo Lake Celeron N3350 with 4GB DDR3L RAM.
* I/O Outlets
Two 10/100/1000 base-TX Ethernet ports.
4 USB ports and 2 RS-232 serial ports.
1 HD display port and 1 Earphone connector.
One 2-pin terminal block for power input, 1 power push button, and 1 reset button.
* Storage Bay
1 m-SATA socket, 1 mini card socket, and 1 SIM socket.
One 2.5" SATA hard disk space.
* Power requirement
+9 ~ +36V DC, 1.6A maximum (1.0A typical) with 19V input.
* Dimensions
97mm(D) x 117mm(W) x 54.8mm(H) without rubber stands and mounting kits.

5. I/O outlets and LED Indicators

A. Power Connectors (DC +9 to +36V, 38W minimum)
DC 9~36V
Terminal Block
B. LAN LED Indicators (RJ45)
The LAN port is a RJ45 connector with 2 LEDs. The orange LED indicates data is accessing and the
green LED indicates on-line status.
