FabiaTech FX5505 Series Users Quick Reference

Advertisement

Version 1.1

1. Brief

The FX5505x is a compact size embedded system with Intel low-power Celeron-M or Pentium-M
processor board inside. This user's quick reference provides the I/O outlets description and their pin
assignment.

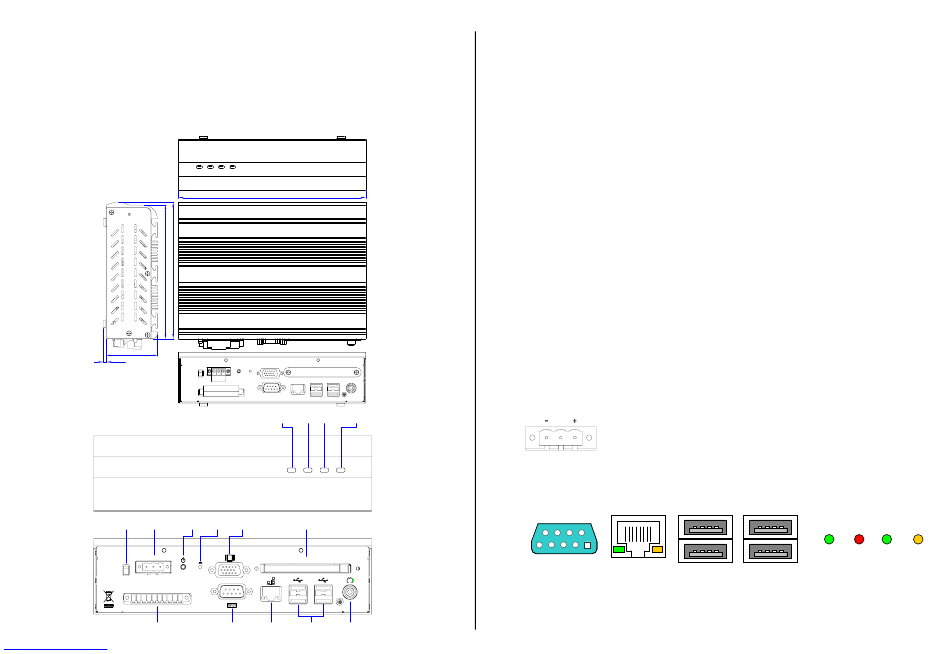

2. Dimensions (in mm) and Front/Rear Panel Information

55
3.5
POWER DC IN 12~24V SWITCH RESET
DC12~24V
ON
OFF
-
CTL
+
DIGITAL I/O
DIGITAL I/O
www.fabiatech.com
FX5505 Series User's Quick Reference
203
LAN
STANDBY
HDD
POWER
CRT
PCMCIA
PCMCIA
TV
COM
LAN
USB
TV

3. Packing List

1 FX5505x embedded system.
1 44-pin flat cable and 4 screws for fixing and connecting a 2.5" hard disk drive.
1 3-pin pluggable terminal block (0.2" pitch) for power and car ignition signal inputs.
1 10-pin pluggable terminal block (0.15" pitch) for I/O signal inputs.
1 compact disc includes software utilities and manuals.

4. Features

*
Processor Board
Intel low power Celeron-M 600MHz processor (FX5505) with 512MB DDR RAM.
*
I/O Outlets
One 10/100 base-TX Ethernet, 1 VGA (CRT), and 1 TV-out connectors.
4 USB ports (V2.0) and 1 RS-232 serial port.
1 Audio line-in, 1 Audio line-out, and 1 Microphone connectors.
1 PCMCIA socket for card bus I/O modules, especially for WLAN/GSM/GPRS modules.
1 3-pin terminal block for power and 1 10-pin terminal block for I/O signals
1 push button power switch and 1 push button reset switch.
1 power LED, 1 standby LED, 1 HDD/CF access LED, and 1 LAN LED.
*
Storage Bay
1 CompactFlash socket for CompactFlash modules or MicroDrives.
One 2.5" hard disk space.
*
Power requirement
FX5505: +12 ~ +24V DC with 15% tolerance, 28VA maximum with 2.5" HDD & 19V input voltage.
*
Dimensions
148mm(D) x 203mm(W) x 55mm(H)

5. I/O outlets and LED Indicators

A. Power and ACC Signal Connector
+:
Power Input,
CTL
FX5505:
-:
Power Ground
CTL: Car Ignition Signal Input
DC12~24V
Terminal Block
B. USB, Serial Port, and LAN Connectors
9
6
COM1 1
5
LAN
The right side LAN LED (orange) indicates data is accessing and the left side LAN LED (green)
indicates on-line status. (When lighted indicates on-line and off indicates off-line)
(3-pin 0.2" Terminal
Block)
DC +12 to +24V, 15% tolerance,
45VA minimum
LEDs on the Front Panel
LAN HDD PWR
USB #1, #2
USB #3, #4
©2007-2008 FabiaTech Corporation
Page 1/2
