FabiaTech FX5406 Series Users Quick Reference

Version 1.0

1. Brief

The FX5406x is a compact size embedded system with Intel® Atom™ D425 processor board inside.
This user's quick reference provides the I/O outlets description and their pin assignment.

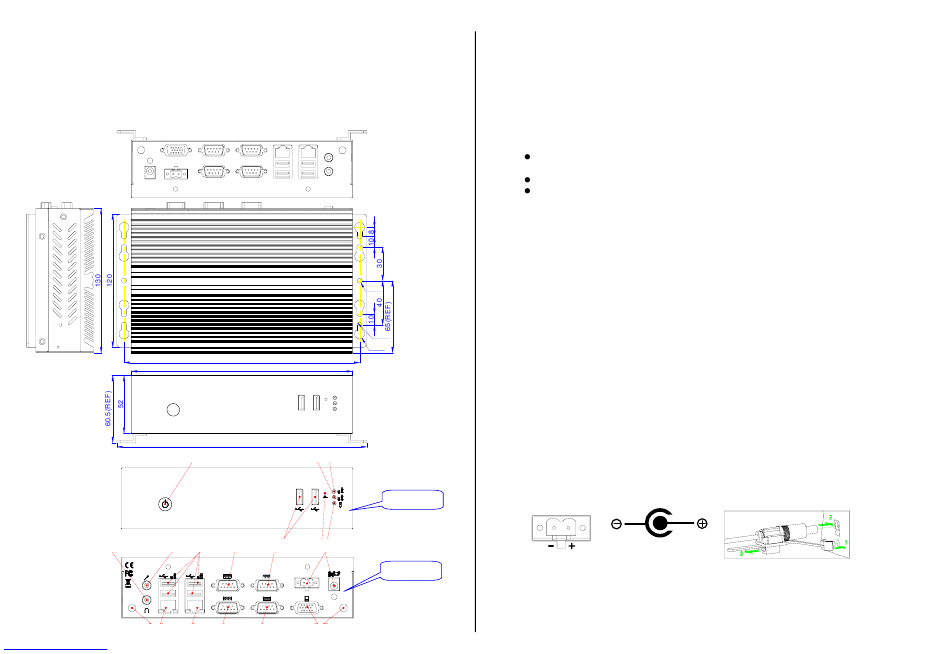

2. Dimensions (in mm) and Front/Real Panel Information

POWER BUTTON
EAR-PHONE MIC
2
Antenna
ANTENNA LAN2
www.fabiatech.com
FX5406 Series User's Quick Reference
O4.5
R4.5
213(REF)
200
226(REF)
LAN2 LAN1
1
2
USB RESET HDD
USB COM4 COM2 DC IN
1
4 2 DC12~24V
-
+
3 1
Antenna
LAN1 COM3 COM1 CRT ANTENNA

3. Packing List

A. Standard Items
1 FX5406x embedded system.
1 AC to DC power adapter and 1 AC power cord cable.
1 pack of 2.5" SATA hard disk installation kit (2 cables with 4 fixed screws).
1 pack of wall mounting kit (2 pieces of metal with 4 fixed screws)
1 2-pin apartable terminal block.
1 compact disc includes software utilities and manuals.
B. Optional Items
Half size mini PCIe module adapter kit (AK1006, 1 piece of metal with 2 screws, P/N:
0606010028G)
Rack mounting kit (FX5403K1, 2 pieces of metal with 4 screws, P/N: 0606010011G)
Panel back mounting kit (FX5504K1, 1 stand with 2 screws, P/N: 0606010012G)

4. Features

* Processor Board
Intel® Atom™ D425 (1.8GHz, 512KB L2, FSB 800MHz, 10 Watts) low power processor with 1GB
(2GB maximum) DDR3 RAM.
* I/O Outlets
Two 10/100/1000 base-TX Ethernet ports.
6 USB ports, 2 RS-232, and 2 RS-232/422/485 serial ports.
1 VGA, 1 Earphone and 1 Microphone connectors.
1 DC-In plug connector, 1 terminal block, and 1 power switch with power LED indicator.
R2.5
1 HDD/CF access LED and 2 LAN LEDs.
* Storage Bay
1 CompactFlash socket for CompactFlash modules or MicroDrives.
1 SATA DOM space.
One 2.5" SATA hard disk space.
* Power requirement
+12 ~ +24V DC, 2.17A maximum (1.35A typical) with 19V input voltage.
* Dimensions
130.0mm(D) x 200.0mm(W) x 52.0mm(H)

5. I/O outlets and LED Indicators

A. Power Connectors
Front Panel
DC12~24V
Terminal Block
Rear Panel
B. LAN LED Indicators (RJ45)
The LAN port is a RJ45 connector with 2 LEDs. The orange LED indicates data is accessing and
the green LED indicates on-line status.
(DC +12 to +24V, 52W minimum)
DC Plug-In Connector
