FabiaTech FX5409 Series Users Quick Reference

Version 1.1

1. Brief

The FX5409 is a compact size embedded system with Intel Apollo Lake low power processor board
inside. This user's quick reference provides the I/O outlets description and their pin assignment.

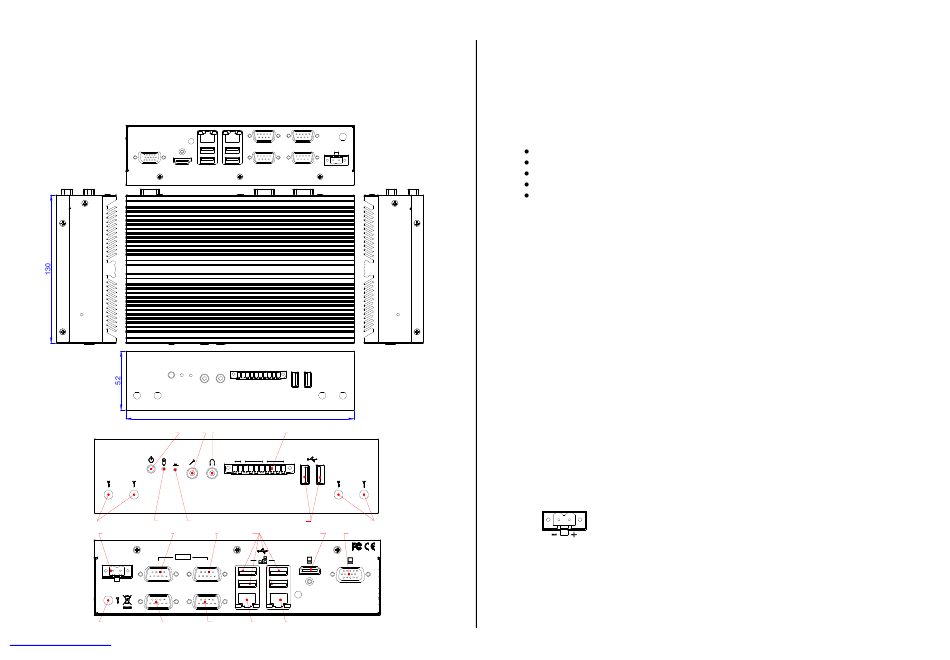

2. Dimensions (in mm) and Front/Real Panel Information

POWER BUTTON MIC
ANTENNA HDD
DC IN COM1 COM3
10101
DC12~36V
1
-
+
2
ANTENNA COM2
www.fabiatech.com
FX5409 Series User's Quick Reference
200
EAR-PHONE DIGITAL IO
DC
12~40V DI DO
-
+
0 1 2 3 0 1 2 3
RESET USB ANTENNA
USB DISPLAY VGA
2 1
1 2
3
4
COM4 LAN1 LAN2

3. Packing List

A. Standard Items
1 FX5409 embedded system.
2 SATA cables (signal & power) and 4 screws for fixing and connecting a 2.5" hard disk drive.
One 2-pin, pitch 5.08mm terminal block for power input, and one 10-pin, pitch 3.81mm for digital I/O.
4 screws for minicard installation.
1 compact disc includes software utilities and manuals.
B. Optional Items
Wall mounting kit (FX5407K1, 2 pieces of metal with 4 fixed screws, P/N: 0606010036R)
Panel back mounting kit (FX5504K1, 1 stand with 2 screws, P/N: 0606010012G)
Rack mounting kit (FX5403K1, 2 pieces of metal with 4 screws, P/N: 0606010011G)
Din Rail mounting kit (AK1010, 3 pieces of metal with 4+4 screws, P/N: 0606010046G)
Half size mini card module adapter kit (AK1006, 1 piece of metal with 2 screws, P/N:
0606010028G)

4. Features

* Processor Board
Intel Apollo Lake low power processor with 4GB (8GB maximum) DDR3L RAM.
J3455 (Desktop Celeron): 1.5GHz to 2.3GHz, 4C/4T, 2MB Cache, 1866MHz FSB, 10 Watts
* I/O Outlets
Two 10/100/1000 base-TX Ethernet ports.
6 USB ports, 2 RS-232, 2 RS-232/RS422/RS485 serial ports.
1 HD and 1 VGA display port, 1 Earphone, and 1 Microphone connectors.
One 10-pin terminal block for 4 isolated digital inputs and 4 isolated digital outputs.
One 2-pin terminal block for power input, 1 power push button, and 1 reset button.
* Storage Bay
1 m-SATA socket, 1 full size mini card socket, and 1 SIM socket.
One 2.5" SATA hard disk space.
* Power requirement
J3455: +12V DC, 3.7A maximum (1.85A typical) .or. +36V DC, 1.5A maximum (0.9A typical).
* Dimensions
130mm(D) x 200mm(W) x 52mm(H) without rubber stands and wall mounting kit.

5. I/O outlets and LED Indicators

A. Power Connectors (DC +12 to +36V, 60W minimum)
DC12~36V
Terminal Block
B. LAN LED Indicators (RJ45)
The LAN port is a RJ45 connector with 2 LEDs. The orange LED indicates data is accessing and the
green LED indicates on-line status.
