Summary of Contents for ADJ ENCORE BURST UV IP
- Page 1 ENCORE BURST UV IP User Manual...
- Page 2 Products, LLC brands and product names are trademarks or registered trademarks of their respective companies. ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
- Page 3 C O N T E N T S Introduction Limited Warranty (USA Only) Features | Warranty Registration IP65 Safety Guidelines Overview Torque Settings for Screws Installation Omega Brackets Connections System Menu Dimmer Mode Chart DMX Setup DMX Traits Daisy Chain Power Linking | Cleaning and Maintenance Specifications Dimension Drawings...
- Page 4 Voice: 800-322-6337 | Fax: 323-582-2941 | support@adj.com ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | support@adj.eu ADJ PRODUCTS LLC USA 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-2650 | Fax 323-532-2941 | www.adj.com...
-
Page 5: L I M I T E D Wa R R A N T Y ( U S A O N Ly )
All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. -
Page 6: Included Items

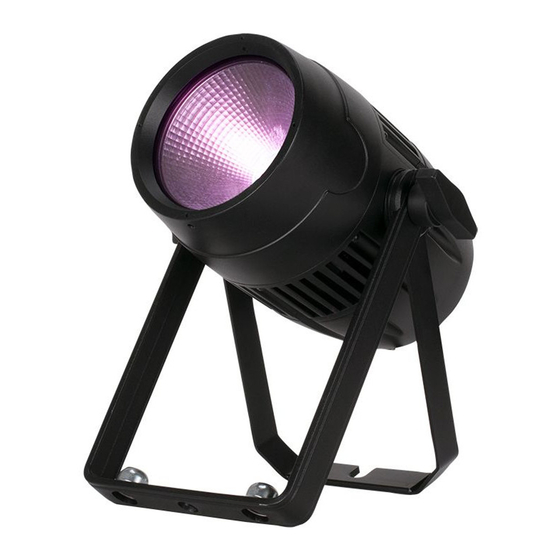

F E AT U R E S The ADJ Encore Burst UV IP is a high intensity, IP65 outdoor rated UV Wash. The fixture is con- structed of a rugged Die Cast housing. The fixture features a UV LED. It has selectable dimming curves, strobe effect, 4-button LED menu system, 5-pin DMX In/Out plus IP65 power locking IN/Out connections to daisy chain power (rubber protective covers over connections). - Page 7 10,000-hours. This is a prophylactic measure intended to keep the unit running as cool as possible, insuring proper function of all internal components. A complete service breakdown is available, please contact service@adj.com for any needed parts or manuals.
-
Page 8: Safety Guidelines
THIS FIXTURE IS COMPOSED OF SOPHISTICATED ELECTRONIC COMPONENTS. TO GUARANTEE SMOOTH OPERATION, IT IS IMPORTANT TO FOLLOW ALL INSTRUCTIONS AND GUIDELINES IN THIS MANUAL. ADJ PRODUCTS, LLC IS NOT RESPONSIBLE FOR INJURY AND/OR DAMAGES RESULTING FROM THE MISUSE OF THIS FIXTURE DUE TO THE DISREGARD OF THE INFORMATION PRINTED IN THIS MANUAL. - Page 9 S A F E T Y G U I D E L I N E S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER EYE AND SKIN PROTECTION.
- Page 10 O V E R V I E W LCD Screen Mode Button Up Button Down Button Enter Button IP65 5-Pin IP65 5-Pin DMX In DMX Out Air Valve IP65 Power In IP65 Power Out Safety Cable Rigging Point...
- Page 11 CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE ISSUES! TO CONFIRM THE IP65 INTEGRITY AFTER MAINTENANCE, TEST THE FIXTURE USING THE ADJ IP TESTER. CONTACT ADJ SERVICE FOR MORE DETAILS. Encore Burst UV IP Testing Parameters Vacuum(KPA)
-
Page 12: Electrical Connections
I N S TA L L AT I O N FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. MINIMUM DISTANCE TO OBJECTS/SURFACES IS 6.6 FEET (2 METERS). MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET (0.5 METER) DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! -
Page 13: Safety Cable
I N S TA L L AT I O N OMEGA BRACKETS If mounting the truss clamp to an Omega Bracket, insert the posts of the Omega Bracket into the matching holes on the Scissor Yoke. Secure the Omega Bracket by turning each quick-lock fastener ¼-turn clockwise;... - Page 14 I N S TA L L AT I O N CONNECTIONS Ensure all connections and end caps are properly sealed with dialectric grease (available at most electrical suppliers) to prevent water corrosion and/or electrical short circuit. To maintain IP65 rating integrity and prevent water from entering the fixture, all unused connection rubber caps must be sealed.
-
Page 15: Installation
LEDs. This issue is not unique to ADJ lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to completely prevent this issue from occurring, the guidelines below can reduce the risk of any potential damage if followed. -
Page 16: System Menu
S Y S T E M M E N U The fixture includes an easy to navigate system menu control panel display where all necessary settings and adjustments are made. (See image below) During normal operation, pressing the MENU button once will access the fixture’s main menu. - Page 17 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION DMX Address 001-XXX DMX Addressing DMX CH Mode 1Ch / 2Ch / 3Ch / 6Ch DMX Channel Mode Selection No DMX State Hold Last / Blackout / Manual DMX Lost Status Standard/Stage/TV/Architectural/Theatre/ Stage2...
- Page 18 S Y S T E M M E N U SET ADDRESS - In this menu you can find and set your desired DMX address. DMX CHANNEL MODE - In this menu you can find and set your desired DMX channel mode. NO DMX STATUS - This menu setting is used as a precaution mode in case the DMX signal is lost or interrupted.
-
Page 19: D I M M E R M O D E S
D I M M E R M O D E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100... -
Page 20: D M X S E T U P
2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the chances of erratic behavior. -
Page 21: Dmx Addressing
In the case of the Encore Burst UV IP, when in 6 channel mode you should set the starting DMX address of the first unit to 1, the second unit to 7 (6 + 1), the third unit to 13 (7 + 6), and so on. (See chart below for more details.) - Page 22 D M X T R A I T S CHANNEL DMX VALUE FUNCTION 1 CH 2 CH 3 CH 6 CH 000-255 MASTER DIMMER 0%-100% 000-255 DIMMER FINE 0%-100% SHUTTER & STROBING 000-031 LED Off 032-063 LED On 064-095 Strobing Slow - Fast 096-127 LED On 128-159...
-
Page 23: Dmx Traits
D M X T R A I T S CHANNEL DMX VALUE FUNCTION 1 CH 2 CH 3 CH 6 CH REFRESH RATE Default to Unit Setting 000-015 016-030 900Hz 031-045 1000Hz 046-060 1100Hz 061-075 1200Hz 076-090 1300Hz 091-105 1400Hz 106-120 1500Hz 121-135... -
Page 24: R E M O T E D E V I C E M A N A G E M E N T ( R D M )
R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. -
Page 25: Cleaning And Maintenance
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer. -
Page 26: Specifications
S P E C I F I C AT I O N S Light Source: • 1x 50W C.O.B. Ultraviolet LED (wavelength: 365nm) • 50-degree Beam Angle • 360nm wavelength • 50,000 Hour Average LED Life Features: • Control Protocol: DMX & RDM •... -
Page 27: Dimension Drawings
D I M E N S I O N D R AW I N G S Dimension drawings not to scale. 9.21” (234mm)
