- Page 1 User Instructions A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade The Netherlands www.adj.eu 03/19...
- Page 2 ©2017 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
ROHS - A great Contribution to the Conservation of Environment ..................25 WEEE – Waste of Electrical and Electronic Equipment ......................26 NOTES ....................................27 NOTES ..........................Fehler! Textmarke nicht definiert. A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 3... -
Page 4: Introduction

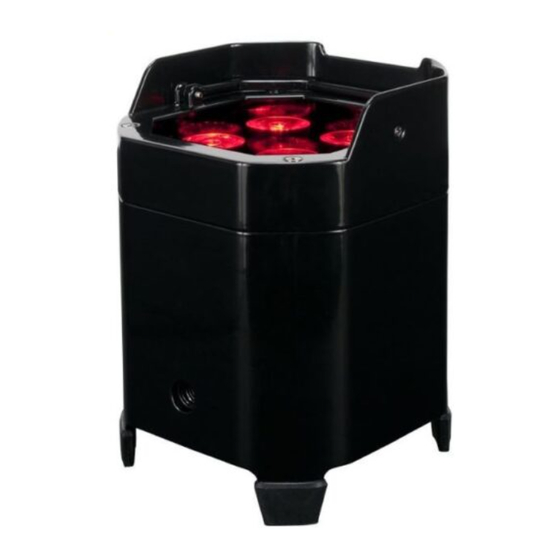

Introduction: The Element QAIP is a rechargeable lithium battery powered, DMX intelligent, LED par fixture with ADJ’s WiFly TransCeiver with wireless DMX built-in. This unit gives you the freedom to set up your fixture where ever you wish without the restrictions of power or DMX cabling. This fixture can be used in a stand alone mode or connected in a Master/Slave configuration. -
Page 5: Safety Precautions
A. The power-supply cord or the plug has been damaged. B. The appliance does not appear to operate normally or exhibits a marked change in performance. C. The fixture has fallen and/or subjected to extreme handling. A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 5... -
Page 6: Ip Notice
DOOR ON THE F I X T U R E MUST R E M AI N COMPLETED CLOSED AT ALL T I M E S TO P R E V E N T WATER DAMAGE AND/OR ELECTRICAL SHOCK! A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 6... -
Page 7: Battery Precautions
6. Battery Disposal Please dispose of battery according to local regulations. A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 7... -
Page 8: Layout Diagram
7. USB Update Port SET UP Power Supply: The ADJ Element QAIP contains an automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch, there is no need to worry about the correct power voltage, this unit can be plugged in anywhere. -
Page 9: Dmx Control
To control this unit in DMX mode, your controller must be connected to a Wifly TranCeiver. This is a Wifly unit only. The Element QAIP has 5 DMX modes: 4 channel mode, 5 channel mode, 6 channel mode, 9 channel mode, and 10 channel mode. See pages 9-14 for each mode’s DMX traits. -
Page 10: Channel Mode
0 - 51 DIMMING MODE 52 - 102 COLOR MACRO MODE 103 - 153 COLOR CHANGE MODE 154 - 204 COLOR FADE MODE 205 - 255 SOUND ACTIVE MODE A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 10... - Page 11 192 - 207 SOUND ACTIVE MODE 13 208 - 223 SOUND ACTIVE MODE 14 224 - 239 SOUND ACTIVE MODE 15 240 - 255 SOUND ACTIVE MODE 16 A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 11...
- Page 12 When Channel 7 is between the values of 205-255, Channel 8 is in Sound Active Mode, and Channel 9 will control the sound sensitivity. A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 12...
-
Page 13: Channel Mode
COLOR CHANGE 12 192 - 207 COLOR CHANGE 13 208 - 223 COLOR CHANGE 14 224 - 239 COLOR CHANGE 15 240 - 255 COLOR CHANGE 16 A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 13... - Page 14 When Channel 7 is between the values of 205-255, Channel 8 is in Sound Active Mode, and Channel 9 will control the sound sensitivity. A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 14...
-
Page 15: Color Macro Chart - Color Macros 1-32
73-76 Color20 77-80 Color21 81-84 Color22 85-88 Color23 89-92 Color24 93-96 Color25 97-100 Color26 101-104 Color27 105-108 Color28 109-112 Color29 113-116 Color30 117-120 Color31 121-124 Color32 125-128 A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 15... -
Page 16: Color Macro Chart - Color Macros 33 - 64
201-204 Color52 205-208 Color53 209-212 Color54 213-216 Color55 217-220 Color56 221-224 Color57 225-228 Color58 229-232 Color59 233-236 Color60 237-240 Color61 241-244 Color62 245-248 Color63 249-252 Color64 253-255 A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 16... -
Page 17: Operating Instructions
• Static Color Mode - There are 63 colors to choose from. • DMX control mode - This function will allow you to control each individual fixtures traits with a standard DMX 512 controller. A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 17... - Page 18 “SP.01” (slowest) and “SP.16” (fastest). Once you have set your desired running speed, press the SET UP button to return to your desired Auto Run Mode. A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 18...
- Page 19 To control this unit in DMX mode, your controller must be connected to a Wifly TranCeiver. This is a Wifly unit only. The Element QAIP has 5 DMX modes: 4 channel mode, 5 channel mode, 6 channel mode, 9 channel mode, and 10 channel mode. See pages 9-14 for each mode’s DMX traits.
-
Page 20: Wifly Set Up
2. After you have set the WiFly address, follow the DMX instructions on page 19 to select your desired DMX Channel mode and set your DMX address. 3. Apply power to the ADJ WiFly Transceiver. The fixture must be set up first before you apply power to WiFly Transceiver. -
Page 21: Uc Ir & Airstream App Control
30 feet away. To use the ADJ UC IR you must first activate the fixtures infrared sensor, to activate the sensor please see the instructions on page 20. -
Page 22: Dimmer Curve Chart
Rise Time (ms) Down Time (ms) Standard (default) Stage 1100 1540 1660 1180 1520 1860 1940 Architectural 1380 1730 2040 2120 Theatre 1580 1940 2230 2280 KICKSTAND ANGLES A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 22... -
Page 23: Dimensional Drawing
3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew). A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 23... -
Page 24: Specifications
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. OPTIONAL ACCESSORIES ORDER CODE ITEM EPC600 6-PACK SKB CASE A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 24... -
Page 25: Rohs - A Great Contribution To The Conservation Of Environment
– in short: each kind of electronics we have around us in our households or at work. As manufacturers of products of the brands of AMERICAN AUDIO, ADJ, ELATION Professional and ACCLAIM Lighting, we are obligated to comply with the RoHS directive. Therefore, as early as two years prior to the directive coming into force, we started our search for alternative environmentally friendly materials and manufacturing processes. -
Page 26: Weee - Waste Of Electrical And Electronic Equipment
(Registration in Germany: DE41027552) That means that products of ADJ and AMERICAN AUDIO can be left in the collection points free of charge and they will be used in the recycling program. Products of ELATION Professional, which are used only by professionals, shall be handled by us. -
Page 27: Notes
Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@adj.com Follow us : A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade facebook.com/americandj twitter.com/americandj The Netherlands youtube.com/adjlighting www.adj.eu A.D.J. Supply Europe B.V. – www.adj.eu – Element QAIP Instruction Manual Page 27...
