ADJ ENTOUR SNOW User Manual

ADJ ENTOUR SNOW User Manual

Hide thumbs Also See for ENTOUR SNOW:

Advertisement

Quick Links

Download this manual
ENTOUR SNOW
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENTOUR SNOW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADJ ENTOUR SNOW

Summary of Contents for ADJ ENTOUR SNOW

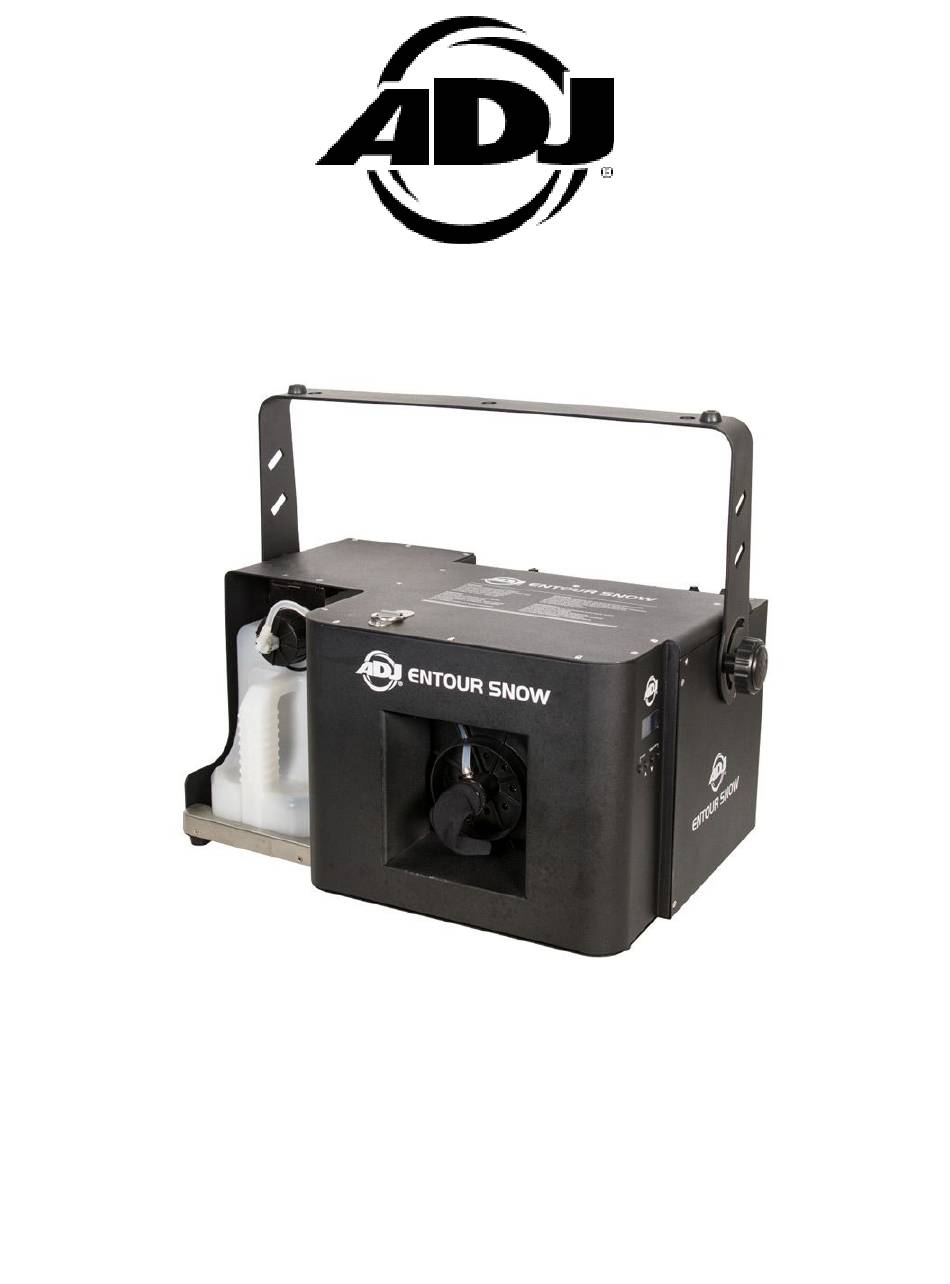

  • Page 1 ENTOUR SNOW User Manual...

  • Page 2: Document Version

    ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration Safety Precautions Overview DMX Set Up General Set Up | Control Panel Operation DMX Mode | DMX Traits Maintenance Storage | Specifications Dimensional Drawings...

  • Page 4: Introduction

    I N T R O D U C T I O N Unpacking: Thank you for purchasing the Entour Snow by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping.

  • Page 5: Limited Warranty (Usa Only)

    L I M I T E D W A R R A N T Y ( U S A O N L Y ) A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse).

  • Page 6: Warranty Registration

    W A R R A N T Y R E G I S T R A T I O N The Entour Snow machine carries a one year (365 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authorization (R.A.) number.

  • Page 7: Safety Precautions

    S A F E T Y P R E C A U T I O N S • Save the factory packaging for use in the event that the unit needs to be shipped back to the manufacturer for service. •...

  • Page 8: Overview

    O V E R V I E W O P Q R S T U A. Hanging Bracket with Handle Screw L. Timer On/Off LED Indicator (compatible with tripod mounting) M. Timer On/Off B. Unique Anti-Spill Tank N. Control Socket Connection C.

  • Page 9: Dmx Set Up

    Power Supply: Before plugging your unit in, ensure that the voltage of the power source matches the required voltage for your device. The ADJ Entour Snow is available in a 120v and 240v version. Because line voltage may vary from venue to venue, you should be sure your unit voltage matches the wall outlet voltage before attempting to operate you fixture.
  • Page 10 XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior. 5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA transmission in place of 3-pin.

  • Page 11: General Set Up | Control Panel

    2. Be sure to remove all the packing material, paying special attention to the area around the snow outlet. 3. Set the machine on a flat dry surface and fill the fluid reservoir with the recommended grade of ADJ brand snow fluid. Insert the feeder tube with the filter into the reservoir and tighten the cap.

  • Page 12: Manual Operation

    O P E R A T I O N TIMER OPERATION: Not compatible with DMX controller in this operational mode. 1. Press the MENU button to scroll through snow output setting, wind setting, interval setting and duration setting. 2. When “SNOW” is displayed, use the UP or DOWN buttons to adjust the amout of snow output. The value can be adjusted between 1-100 or AUTO (Random).

  • Page 13: Dmx Mode | Dmx Traits

    D M X M O D E The Entour Snow has 3 DMX channel modes: 1 channel mode, 3 channel mode, and 5 channel mode. Refer to the DMX Traits section for details. This function will allow you to control the unit with a standard DMX 512 controller.

  • Page 14: Maintenance

    The tank can now be removed from its socket, and the magnetic filter can be removed for cleaning. After cleaning, be sure to dry the air filter before re-installation. The filter attaches to the inner air inlet grill. If you would like to replace the air filter, contact ADJ customer service.
  • Page 15 M A I N T E N A N C E To remove the cloth and spring, carefully snip the black zip tie that secures the cloth in the place, and be careful not to cut the cloth. Remove the cloth and and spring. Clean the cloth and spring and reinstall securely with a zip tie.

  • Page 16: Storage | Specifications

    Fluid Consumption Rate: 500ml/min • Power Consumption: 1250W • 3-pin & 5-pin DMX In/Out • Locking power Input • Uses ADJ Snow Gal snow fluid • Hanging Bracket • Safety cable latch • On/Off button • 1/4-inch jack for optional ENTOUR VT-1 remote controller •...

  • Page 17: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S 21.65 in (550mm)
