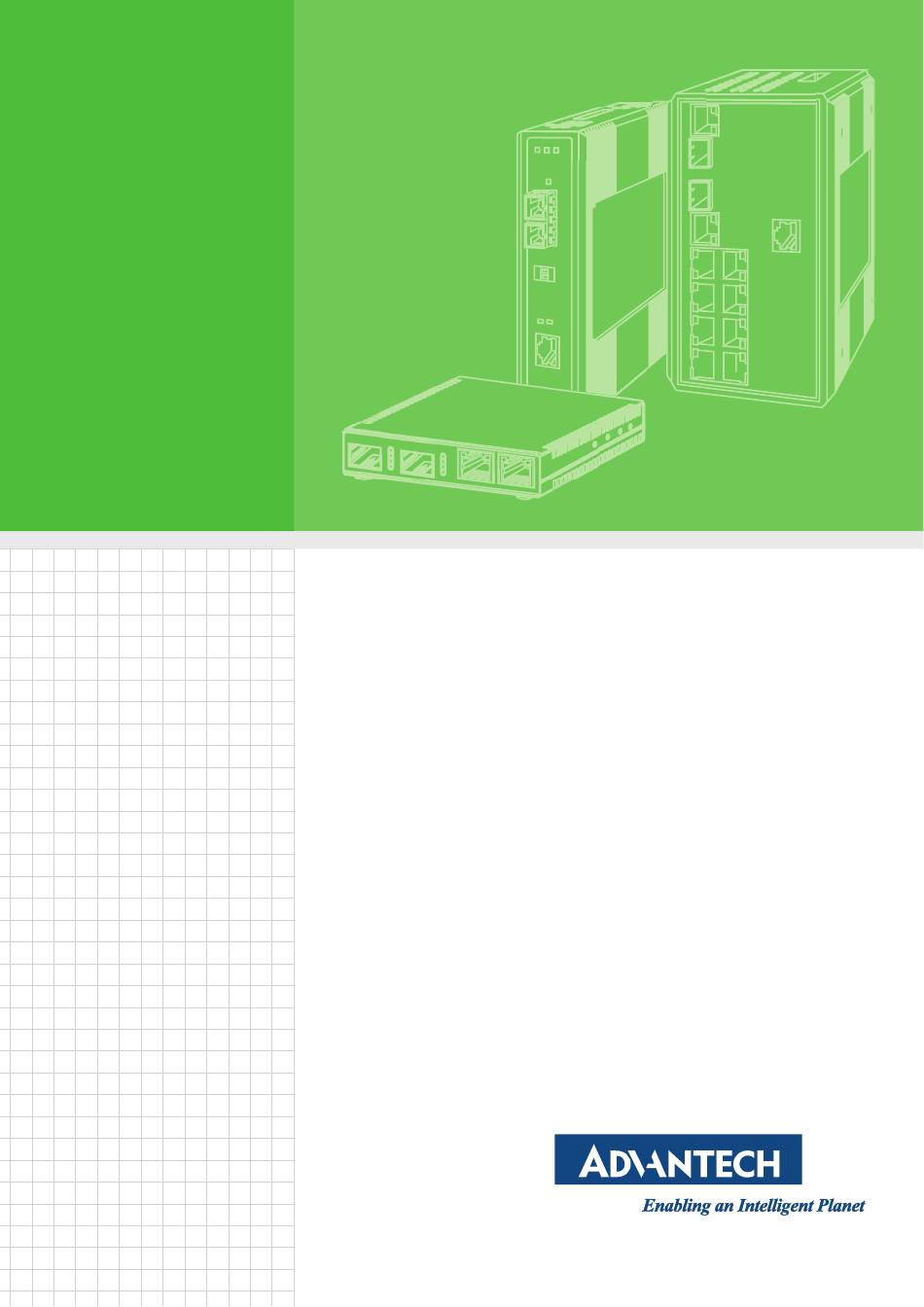

- Page 1 User Manual SNMP Management Module (IMC-710-A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable.
- Page 3 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
- Page 4 Caution! For use in a controlled environment. Refer to manual for environmental conditions. Note! Notes provide optional additional information. Document Feedback To assist us in making improvements to this manual, we would welcome comments and constructive criticism. Please send all such - in writing to: ICG.Support@advantech.com SNMP Management Module User Manual...
- Page 5 Statements, Precautions, Guidelines, Regulatory FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 6 For more detailed information about proper disposal, please contact local authorities, waste disposal services, or the point of purchase for this equipment. Copyright © 2021 Advantech. All rights reserved. The information in this document is subject to change without notice. Advantech assumes no responsibility for any errors that may appear in this document.
-
Page 7: Table Of Contents
Contents Chapter Product Overview ........1 SNMP Management Module ..............2 Specifications .................... 2 Hardware Views ..................3 1.3.1 Front View..................3 1.3.2 System LED Panels ..............3 1.3.3 Installation Guidelines..............3 1.3.4 Configuration................. 4 1.3.5 Using SNMP Write Lock Switch............ 4 Chapter Web-HTTP Function ......5... - Page 8 List of Figures Figure 1.1 Front View ........................3 Figure 1.2 System LED ........................3 SNMP Management Module User Manual viii...
-
Page 9: Product Overview
Chapter Product Overview... -
Page 10: Snmp Management Module
SNMP Management Module The SNMP Management Module includes two twisted-pair ports: one for management, and one reserved for future use. The SNMP Management Module also features a DB-9 serial port. Both twisted-pair ports support the AutoCross feature that automatically selects between a crossover workstation or straight-through, depending on the connected device. -
Page 11: Hardware Views
Hardware Views 1.3.1 Front View Figure 1.1 Front View Item Description MGMT RJ45 port for remote management. Option ETH: 10/100BaseT(X) port Console Console cable port to COM port (DB9 male) on computer to RS232 managed switch (RJ45 female). 1.3.2 System LED Panels Figure 1.2 System LED Item Description... -
Page 12: Configuration
1.3.4 Configuration Once connected to a network, assign the SNMP Management Module IP configuration information (e.g., IP address, subnet mask, etc.). There are four ways to do this: Using the Webserver version. Using the Management Module’s serial port. Using DHCP (Dynamic Host Control Protocol);... -
Page 13: Web-Http Function
Chapter Web-HTTP Function... -
Page 14: Web-Http
Web-HTTP Web-HTTP can let users quickly and easily complete the first stages of SNMP configuration for SNMP-manageable devices. Web-HTTP can set the IP address, subnet mask and default gateway as well as define the community strings and SNMP traps. The Web-HTTP can be used to upload new versions of the system software and new MIB information. -
Page 15: Using Dhcp
Using DHCP 2.4.1 DHCP Disable (Static IP Addressing) DHCP is disabled in the default configuration. Initially, modules are assigned a Static default IP Address of 10.10.10.10. Changes to the Static IP Address can be added manually through Web-HTTP, an RS-232 Serial session, or Telnet. The changes will be initiated following reboot of the module. - Page 16 rw = read/write access When finished, Key in exit to leave configuration mode, key in show snmp and press enter to display community information. 2.5.0.3 Deleting Community Strings To delete specific community strings, key in configure to enter configuration mode. Key in no snmp community XXXX and press enter to delete.
- Page 17 SNMP Management Module User Manual...
-
Page 18: Software Installation
Chapter iView Software Installation... -
Page 19: Overview
Advantech intelligent networking devices. It features a GUI that provides network managers the ability to monitor and control Advantech products. The application is available as a free download from the website. iView² Webserver version requires the following: MySQL ver 5.1 or higher... -
Page 20: Iview² (Webserver Version)
(Webserver Version) iView² is also available as a Webserver version. This is a browser-based software, which can be downloaded from the Advantech website. It offers more features than the Desktop version, such as supporting hundreds of users and particular Advantech manageable fiber devices. - Page 21 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
