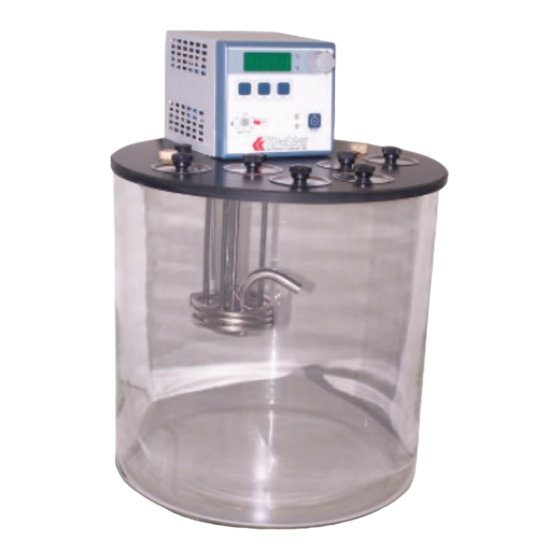

- Page 1 K23371, K23376, K23377, K23378 Kinematic Viscosity Bath, KV1000 service | innovation | technology REV K-A...
- Page 2 KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual - ii -...
- Page 3 ONFORMANCE Constant Temperature Kinematic Viscosity Bath, KV1000 K23371-00000, K23376-00000, K23377-00000, K23378-00000 This certificate verifies that part numbers K23371-00000, K23376-00000, K23377-00000, K23378-00000, Constant Temperature Kinematic Viscosity Baths, were manufactured in conformance with the applicable standards set forth in this certification. Specifications:...
- Page 4 KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual - iv -...
- Page 5 Responsibility for Registration and Annual Reporting: Koehler will not sell directly to end users in the EU and so has no responsibility to register within each EU state and to make annual reports. Koehler declares that this responsibility is born by the importer who is the first level of the distribution chain and is subject to producer responsibility.
- Page 6 Recycling is free of charge. Shipping is the responsibility of the end users. Whether shipping to a distributor or to Koehler directly, safe, properly declared, and labeled packaging and shipping expenses are the sole responsibility of the end user.
-
Page 7: Table Of Contents
KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual Table of Contents 1. Introduction 1.1. Koehler’s Commitment to Our Customers 1.2. Recommended Resources and Publications 1.3. Instrument Specifications 2. Safety Information and Warnings 3. Getting Started 3.1. Packing List 3.2. -
Page 8: Introduction
Providing quality testing instrumentation and technical support services for research and testing laboratories has been our specialty for almost 100 years. At Koehler, the primary focus of our business is providing you with the full support of your laboratory testing needs. Our products are backed by our staff of technically knowledgeable, trained specialists who are experienced in both petroleum products testing and instrument service to better understand your requirements and provide you with the best solutions. -
Page 9: Instrument Specifications
KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual 1.3. Instrument Specifications 18” Bath Models: K23371-00000 115V 60Hz 12” Bath K23376-00000 115V 60Hz 12” Bath K23377-00000 220-240V 50/60Hz 18” Bath K23378-00000 220-240V 50/60Hz Temperature Range: Ambient to 150°C (302°F) Temperature Control Stability: ±... -
Page 10: Unpacking
Equipment Placement. Place the instrument on a firm, level table in an area with adequate ventilation or in a hood. Please note that Koehler does not supply a level with this equipment. Ventilation. A fume hood or exhaust system is required when operating the unit. Flammable vapors and/or steam are generated during operation and must not be permitted to accumulate. -
Page 11: Descriptions
Glass Capillary Viscometer Tubes for KV1000 Koehler offers a full selection of glass capillary kinematic viscometers, which are ordered separately from the KV1000 instrument, for measuring kinematic viscosity of liquid products as per ASTM D445 and related standard test methods. All types of viscometers conform to ASTM D445 and related methods for glass capillary kinematic viscometers. - Page 12 Requires a sample volume of approximately 11mL. Viscometer Holders Koehler offers a wide range of viscometer holders for use with the KV1000 instrument. The correct holder must be used with the corresponding viscometer tube for proper operation: Viscometer Tube Type Corresponding Holder Cannon®-Fenske Routine...
- Page 13 KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual Cannon-Fenske Routine Viscometers Cannon-Fenske Opaque Viscometers Approximate Kinematic Approximate Kinematic Part Number Size Constant, Viscosity Part Number Size Constant, Viscosity cSt/s Range, cSt cSt/s Range, cSt 378-025-C01 0.002 0.5 to 2 378-025-C02 0.002 0.4 to 2...
-
Page 14: Temperature Controller
KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual 4.3. Temperature Controller Figure 2. Temperature Controller (Front) Item descriptions Safety Set Indicator Knob Safety Set Reset Button Preset Temperature Buttons Display Select/Set Knob Power ON/OFF Button Figure 2. Temperature Controller (Back) Pump Speed Switch Circuit Breaker / AC Power Switch AC Input... -
Page 15: Recommended Accessories
Recommended Fluid Temperature broken. DO NOT USE the jar if there is any damage. Koehler recommends a suitable medium that will not freeze like ethylene glycol. Do NOT use Below 4°C Fill the bath with the appropriate heat transfer fluid based distilled water. -
Page 16: Circulator Pump
KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual After filling the reservoir with fluid, you must set the Safety Set and the Software High Limit as well as your desired control set point. 5.3. Circulator Pump The HIGH or LOW speed selection switch on the rear panel of the Controller is used to select pump speed. LOW is adequate for most applications and provides quieter pumping. - Page 17 KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual Setting the Software High Limit This feature provides additional safety and protection by allowing a selectable upper temperature limit set point. To avoid an unwanted shutdown during regular operation, the high limit value should be set at least 5°C higher than the selected control temperature 1.
-
Page 18: Starting A Test
KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual The set point temperature may be checked at any time by pressing the Select/Set Knob. If the set point temperature cannot be raised, it is possible that the Software High Limit value is set lower than the desired control temperature set point. Reset the Software High Limit value to 5°C or more above the desired set point temperature. -
Page 19: Safety Features
2. Determine the source of the problem and correct the situation 3. Restart the unit. Monitor the operations to ensure that the unit is operating properly. If you are still experiencing trouble, please contact Koehler technical service for assistance. 6.2. Over-Power Protection The KV1000 Kinematic Viscosity Bath is equipped with Over-power Protection circuitry, which prevents the unit from unsafe electrical conditions. -
Page 20: Replacement Parts
Troubleshooting procedures involve working with high voltages and/or temperatures which may result in personal injury or death and should only be performed by trained personnel. Please do not hesitate to contact Koehler for assistance. 9.1. Unit Will Not Operate (no heat, cooling, or pumping) •... -
Page 21: Storage
We, at Koehler, would like to thank you for your equipment purchase, which is protected by the following warranty. If within one (1) year from the date of receipt, but no longer than fifteen (15) months from the date of shipment, Koehler equipment fails to perform properly because of defects in materials or workmanship, Koehler Instrument Company, Inc. - Page 22 KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual Notes - 16 –...
- Page 23 KV1000 Constant Temperature Kinematic Viscosity Bath Operation and Instruction Manual Notes - 17 –...
