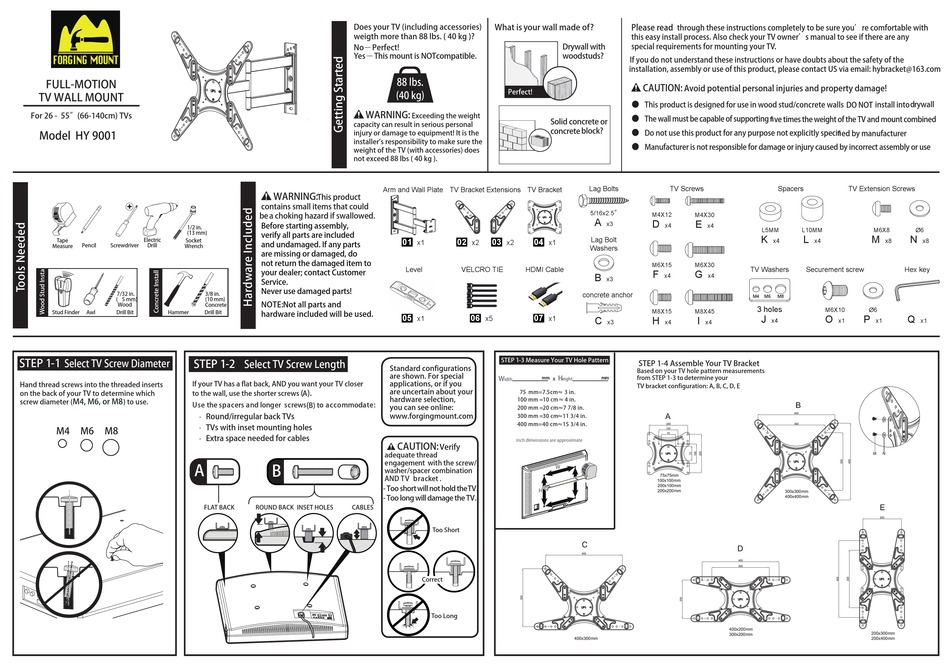

Forging Mount HY 9001 Quick Start Manual

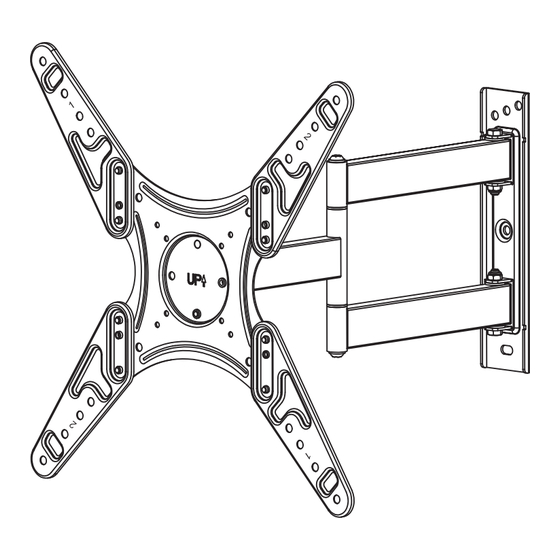

FULL-MOTION
TV WALL MOUNT
For 26 - 55"(66-140cm) TVs
Model HY 9001
1/2 in.
(13 mm)
Electric
Tape Socket
Measure Pencil Screwdriver Drill Wrench
7/32 in.
( 5 mm)
Wood
Hammer
Stud Finder Awl Drill Bit
STEP 1-1
Select TV Screw Diameter STEP 1-2
If your TV has a flat back, AND you want your TV closer
Hand thread screws into the threaded inserts
on the back of your TV to determine which to the wall, use the shorter screws
M4, M6, or M8
screw diameter ( ) to use.
Use the spacers and longer s crews
M4 M6 M8
A
Does your TV (including accessories)
weigth more than 88 lbs. ( 40 kg )?
No — Perfect!
Y es — This mount is NOT compatible.
WARNING
capacity can result in serious personal
injury or damage to equipment! It is the
installer's responsibility to make sure the
weight of the TV (with accessories) does
not exceed 88 lbs ( 40 kg ).
WARNING:
This product
contains small items that could
be a choking hazard if swallowed.
Before starting assembly,
verify all parts are included
and undamaged. If any parts
are missing or damaged, do
not return the damaged item to
your dealer; contact Customer
Service.
Never use damaged parts!
3/8 in.
(10 mm)
NOTE: Not all parts and
Concrete
Drill Bit
hardware included will be used.
Select TV Screw Length
( ).
A
( B) to accommodate:
· Round/irregular back TVs
· TVs with inset mounting holes
· Extra space needed for cables
B
FLAT BACK ROUND BACK INSET HOLES CABLES
What is your wall made of?
Drywall with
woo studs?
88 lbs.
Perfect!
(40 kg)
:
Exceeding the weight
Solid concrete or
conc et block?
Arm and Wall Plate TV Bracket Extensions TV Bracket
01 02 03 04
x1 x2 x2 x1
Level VELCRO TIE HDMI Cable
05 06 07
x1 x5 x1

STEP 1-3 Measure Your TV Hole Pattern

Standard configurations
are shown. For special
W H
m m x
idth eight
applications, or if you
are uncertain about your
75 mm= 7.5cm≈ 3 in.
hardware selection,
100 mm = 10 cm≈ 4 in.
you can see online:
200 mm = 20 cm≈7 7/8 in.
www.forgingmount.com
300 mm = 30 cm≈11 3/4 in.
400 mm= 40 cm≈15 3/4 in.
inch dimensions are approximate
CAUTION :
Verify
adequate thread
engagement with the screw/
W
washer/spacer combination
AND TV bracket .
- Too sho will not hold the TV. rt
H
- Too long will damage the TV.
Too Short
Correct
Too Long
Please read
through these instructions completely to be sure you're comfortable with
this easy install process. Also check your TV owner's manual to see if there are any
special requirements for mounting your TV.
d
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, please contact US via email: hybracket@163.com
CAUTION:
Avoid potential personal injuries and property damage!
● This product is designed for use in wood stud/concrete walls DO NOT install into drywall
●
The wall must be capable of supporting ve times the weight of the TV and mount combined
r e
●
Do not use this product for any purpose not explicitly speci ed by manufacturer
●
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Lag Bolts TV Screws
5/16x2.5"
M4X12 M4X30
A
D E
x3
x4 x4
Lag Bolt
Washers
M6X15 M6X30
F G
B
x4 x4
x3
concrete anchor
M8X15 M8X45
C H I
x3 x4 x4

STEP 1-4 Assemble Your TV Bracket

Based on your TV hole pattern measurements
from STEP 1-3 to determine your
m m
TV bracket configuration: A, B, C, D, E
fi
fi
Spacers TV Extension Screws
L5MM L10MM M6X8 Ø6
K L M N
x4 x4 x8 x8
TV Washers Securement screw Hex key
M4 M6 M8
3 holes
M6X10 Ø6
J O P Q
x4 x1 x1 x1
