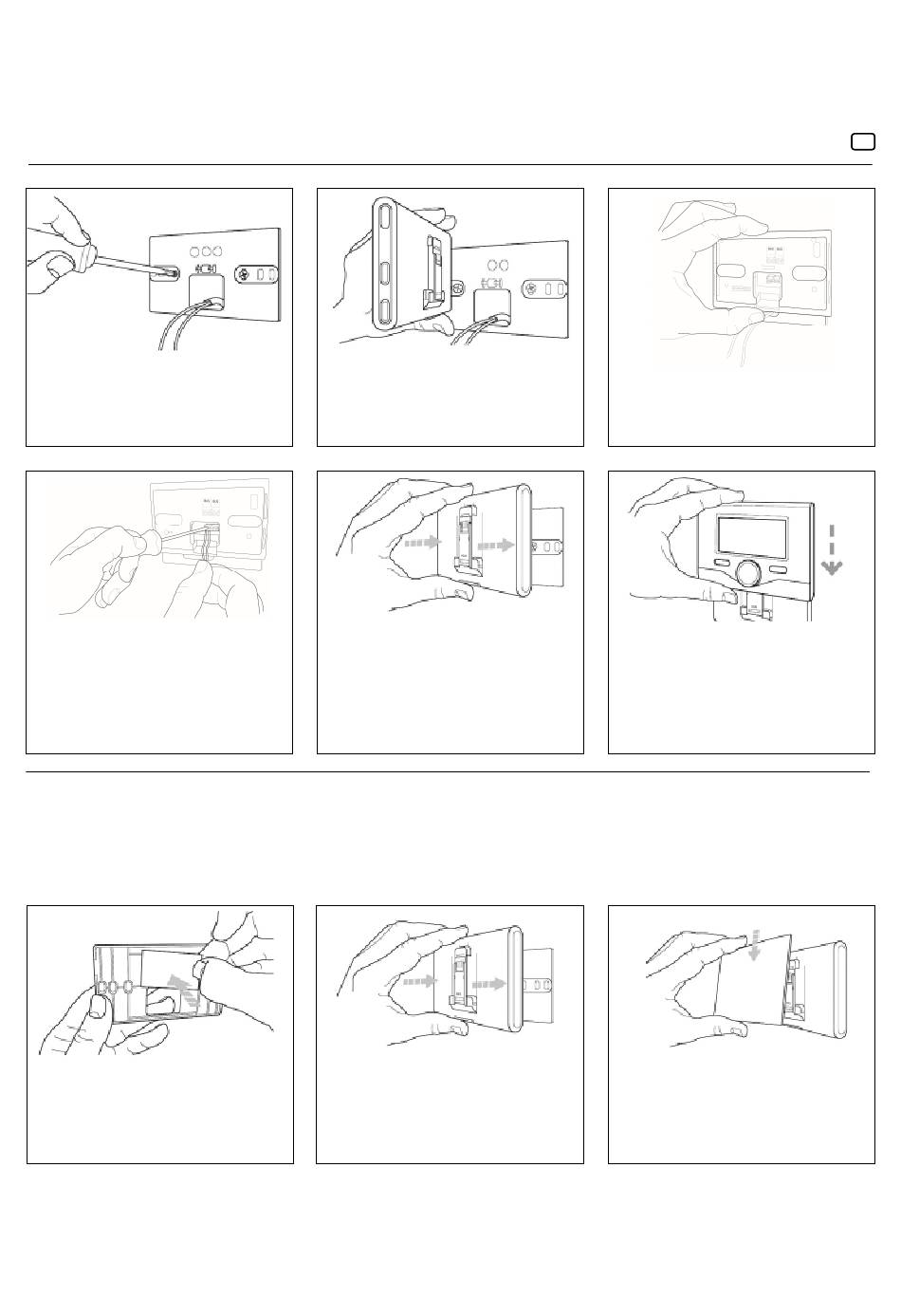

Wall installation of REMOCON NET MINI
On-boiler installation of REMOCON NET MINI
Fig. 1
Secure the support plate to the wall using the
screws provided.
Fig. 4
Connect the pair of cables from the BUS
BridgeNet on the boiler circuit board to the
BUS BridgeNet connector on REMOCON NET
MINI (observing the polarities B to B and T to
T)*
*to facilitate cable connection, the plastic tab
can be removed as shown in the diagram.
ATTENTION!
Before applying double-sided tape,
you should clean the surface
thoroughly with solvent and dry it
thoroughly.
Fig. 1b
Apply the double-sided tape behind the sup-
port plate, remove the protective film and
secure it to the boiler casing;
Fig. 2
Rotate REMOCON NET MINI.
*
Fig. 5
Remove REMOCON NET MINI from its tem-
porary position (fig.2) and secure it to the
plate, applying pressure to the sides until the
four small side hooks engage.
Fig. 5b
Secure it to the plate by applying pressure
along the sides;
42
Fig. 3
Tem-
porarily secure REMOCON NET MINI to the
plate using the dedicated hooks.
Fig. 6 (Optional)
Position REMOCON PLUS on the base,
pushing it gently downwards.
Fig. 6b
Apply the cover, pressing gently.
