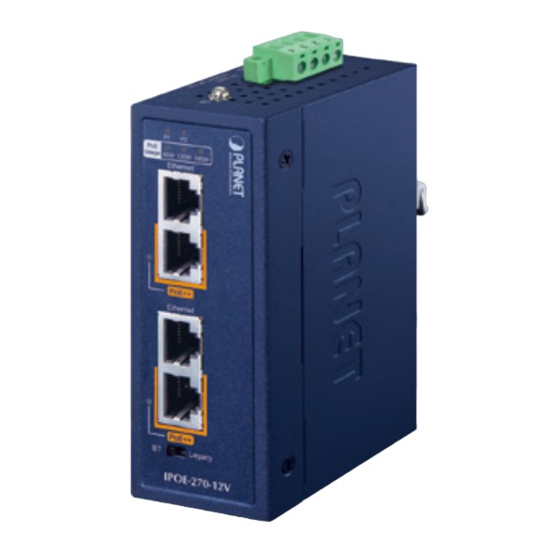

- Page 1 Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub IPOE-270/IPOE-270-12V User’s Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ................. 3 2. Product Specifications ................4 3. Hardware Introduction ................7 3.1 Device Front Panel ................. 7 3.2 Device Upper Panel ................ 9 3.3 Wiring the Power Inputs ..............9 3.4 Grounding the Device ..............11 4. -
Page 3: Package Contents
Thank you for purchasing PLANET Industrial 2-port Multi-Gigabit 802.3bt PoE++ Injector Hub, IPOE-270/IPOE-270-12V. In the following sections, the term “Industrial PoE++ Injector Hub” means the IPOE-270 or IPOE-270-12V. Open the box of the Industrial PoE++ Injector Hub and carefully unpack it. -
Page 4: Product Specifications
2. Product Specifications Model IPOE-270 IPOE-270-12V Hardware Specifications 2-pair 10/100/1G/2.5G/5GBASE-T RJ45: Copper Ports Data input port 1 and PoE output port 1 Data input port 2 and PoE output port 2 Removable 4-pin terminal block Connector Pins 1 and 2 for Power 1; Pins 3 and 4 for Power 2... - Page 5 52V DC (180W PoE budget): 188 watts/641BTU 54V DC (180W PoE budget): 188 watts/641BTU Dimensions 41 x 70 x 115 mm (W x D x H) Weight 284g 387g Enclosure IP30 metal case Installation DIN-rail kit and wall-mount kit ESD Protection Surge Protection 6KV Power over Ethernet IEEE 802.3bt PoE++, 4-pair PSE...
- Page 6 IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet Standards IEEE 802.3ab Gigabit Ethernet Compliance IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus Environment Operating: -40~75 degrees C Temperature Storage: -40~75 degrees C Operating: 5~90% (non-condensing) Humidity Storage: 5~90% (non-condensing)
-
Page 7: Hardware Introduction
Data port 3 Data port 4 PoE++ PoE++ Legacy Legacy IPOE-270-12V IPOE-270 Figure 1: IPOE-270 Front View Figure 2: IPOE-270-12V Front View LED Definition System LEDs Color Function Green Lights to indicate DC power input 1 has power. Green Lights to indicate DC power input 2 has power. - Page 8 2 seconds. If the loading is still less than 1 watt, the Legacy Mode will be enabled again. The IPOE-270 series in the Force Mode will also provide a maximum 95-watt power to the PD. TO PREVENT THE DEVICES...
-
Page 9: Device Upper Panel
1 2 3 4 DC Input: PWR1 PWR2 48-54V , 4A max. Figure 3: IPOE-270 Top View 1 2 3 4 DC Input: PWR1 PWR2 12-54V , 4A max. Figure 4: IPOE-270-12V Top View 3.3 Wiring the Power Inputs... - Page 10 1. Insert positive and negative DC power wires into contacts 1 and 2 for POWER 1, or contacts 3 and 4 for POWER 2. 1 2 3 4 DC Input: PWR1 PWR2 48-54V , 4A max. 1 2 3 4 DC Input: PWR1 PWR2...
-
Page 11: Grounding The Device
3.4 Grounding the Device Users MUST complete grounding wired with the device; otherwise, a sudden lightning could cause fatal damage to the device. 1 2 3 4 DC Input: PWR1 PWR2 12-54V , 4A max. Earth Ground EMD (Lightning) DAMAGE IS NOT COVERED UNDER WARRANTY. -
Page 12: Installation
4. Installation This section guides you to installing the Industrial PoE++ Injector Hub on the DIN-rail and wall. Please read this chapter completely before continuing. 4.1 DIN-rail Mounting Installation 4.2 Wall-mount Plate Mounting... -
Page 13: Side Wall-Mount Plate Mounting
4.3 Side Wall-mount Plate Mounting You must use the screws supplied with the wall-mounting brackets. Damage caused to the parts by using incorrect screws would invalidate your warranty. -
Page 14: Three-View Diagram
5. Three-View Diagram IPOE-270 159.00 103.00 3.50 5.50 18.00 27.19 28.65 70.00 115.00 41.00 30.00 50.00 Figure 5: IPOE-270 Three-View Diagram... - Page 15 IPOE-270-12V 159.00 103.00 3.50 5.50 18.00 27.19 28.65 70.00 115.00 41.00 30.00 50.00 Figure 6: IPOE-270-12V Three-View Diagram...
-
Page 16: Customer Support
6. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET web site first to check if it could solve your issue. If you need more support information, please contact PLANET support team. - Page 17 Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s...
- Page 18 CE Mark Warning This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. WEEE Warning To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment,...
