- Page 1 Vertical IP-based Switched Power Manager Series with 2 Cascaded Ports IPM-08220/IPM-16230 Quick Installation Guide...
-
Page 2: Table Of Contents
3.1 Front Panels .................. 5 4. Hardware Setup ................... 9 4.1 Installation ..................9 4.2 Rack Mounting ................10 5. Web Login 11 5.1 Starting Web Management............11 6. PDU Discovery through PLANET NMS Controller (NMS-500/NMS-1000V)............... 14 7. Customer Support ................15... -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET Vertical IP-based Switched Power Manager, Vertical IPM-Series. “PDU” mentioned in this quick installation guide refers to the Vertical IPM-Series. Open the box of the Vertical Switched IPM and carefully unpack it. The box... -
Page 4: Physical Specifications
2. Physical Specifications Model Device Dimensions IPM-08220 696 x 66 x 44.5 mm IPM-16230 1126 x 66 x 44.5 mm... -
Page 5: Product Appearance Description

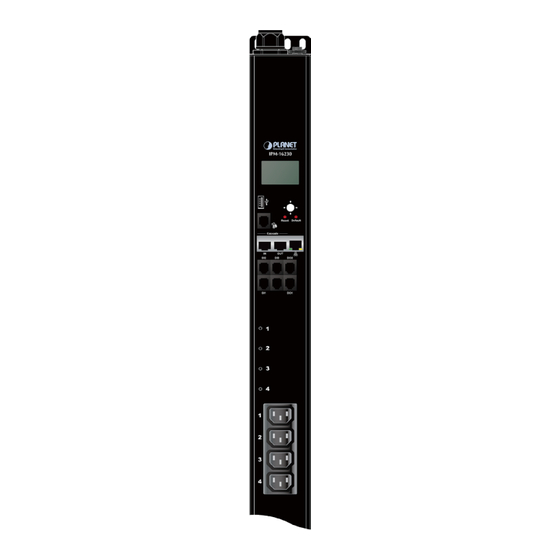

3. Product Appearance Description 3.1 Front Panels... - Page 6 Item Description Overload When the PDU is overloaded, the protector automatically Protection disconnects the power supply to protect the electrical Switch equipment. Indicates the operating status of the power output port Indicators Each power socket can connect to electrical devices with the current less than 10A.
- Page 7 Please follow the steps below for installing the power input socket. 1. As shown in the picture, remove the 4 screws from the socket. 2. Separate the nose from the fuselage and remove the nose. (1) Loosen the contact screws. (2) Mark according to the pin. (3) Insert the wire core and tighten the contact screws.
- Page 8 3. Connect the L, N, and GND wires of the cables as shown in the figure, and tighten them to prevent virtual connections caused by loosening. 4. Connect the head and the frame, and tighten with screws.
-
Page 9: Hardware Setup
4. Hardware Setup The PDU can be installed indoor in a server cabinet. To install the PDU in a position, use the fasteners and screws delivered with the device to set up the PDU. 4.1 Installation To install the PDU, perform the following steps: Step 1. -
Page 10: Rack Mounting
4.2 Rack Mounting Please note the following items when performing rack installation. 1. When extending the device out of the rack, ensure that the rack is smooth and stable. 2. Do not overload the AC branches that supply power to the frame; the carrying capacity of the whole frame should not exceed eighty percent of the power of the branch. -
Page 11: Web Login
5. Web Login 5.1 Starting Web Management Step 1: Log in the web setting page of PDU Enter the IP address of PDU (e.g., https://192.168.0.10) in the address bar using the https method of your PC’s web browser. The default user name and password are both admin. After logging in, you will be required to change the password. - Page 12 PDU operations: Home Page, Control, Statistics, Settings, and About. Click the corresponding TAB to select, set, and view the functions provided on the corresponding page. Step 3: Network Configuration To configure the network, perform the following operations: 1. Click the Setting TAB. 2. The device configuration page is displayed. A screen similar to the following should appear: 3. Please fill in the field data according to the information provided in the device setting instructions of Network Setting.
- Page 13 If you forget the administrator account and password, please reset the PDU to restore the initial settings and the default administrator account.
-
Page 14: Pdu Discovery Through Planet Nms Controller
The IPM-08220/IPM-16230 is the vertical IP-based Switched Power Manager which can be centrally monitored by PLANET NMS Controller. Follow the steps below to discover the managed PDU through PLANET NMS controller (NMS-500/NMS-1000V). Please ensure NMS and each managed PDU use a different static IP in the same subnet before physically connecting to the managed network. -
Page 15: Customer Support
7. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource and User’s Manual on PLANET Web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.
