System Description
1.2 System Features
Built-in features simplify the operation of the A-GAGE MINI-ARRAY System. Emitters and
receivers, available in a choice of two resolutions and 10 lengths, provide the right size
and precision needed for many applications. Programmable beam blanking
accommodates machine components or other fixtures that must remain in or move
through the light screen. Blanking is set using the included EDS file and the user's
DeviceNet configuration tool.
Built-in diagnostic programming and easy-to-see indicators on the sensors and the
control module simplify alignment and troubleshooting (Figure 1-2). The emitter has a
red LED that signals proper operation. The receiver has three bright LEDs: green
signals that the sensors are properly aligned; yellow signals marginal alignment; and
red signals misalignment or a blocked condition. The control module has seven
System Status LEDs that indicate conditions such as output(s) conducting, Gate signal
received, beam alignment and/or blocked beams. In addition, a bi-color (red/green)
Network Status LED indicates whether the system is online with the DeviceNet network
and whether there are problems.
The A-GAGE MINI-ARRAY System provides a wide selection of sensing and output
options, including: measurement ("scan analysis") modes; scanning methods that can
determine the target object's location, overall size, total height or total width; and
numerous output options. Scanning may be continuous or controlled by a host
process controller or a gate sensor.
Blanking feature allows the user to configure any number of beams to be "blanked." In
effect, blanking causes the affected beams to be made "blind" to activity within the
array.
DIN-Rail-Mountable Control Module
MINI-ARRAY CONTROLLER for DeviceNet
POWER
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 D5 D4 D3 D2 D1
+12V
COM DRN
T/R
T/R
F1
BR
BU
BK
WH
5 Wires
V+
V-
16 - 30V dc
30V
1.2A MAX
150mA Max
OUT1
EMTR
RCVR
1
2
3
4
5
6
7
8
9
10

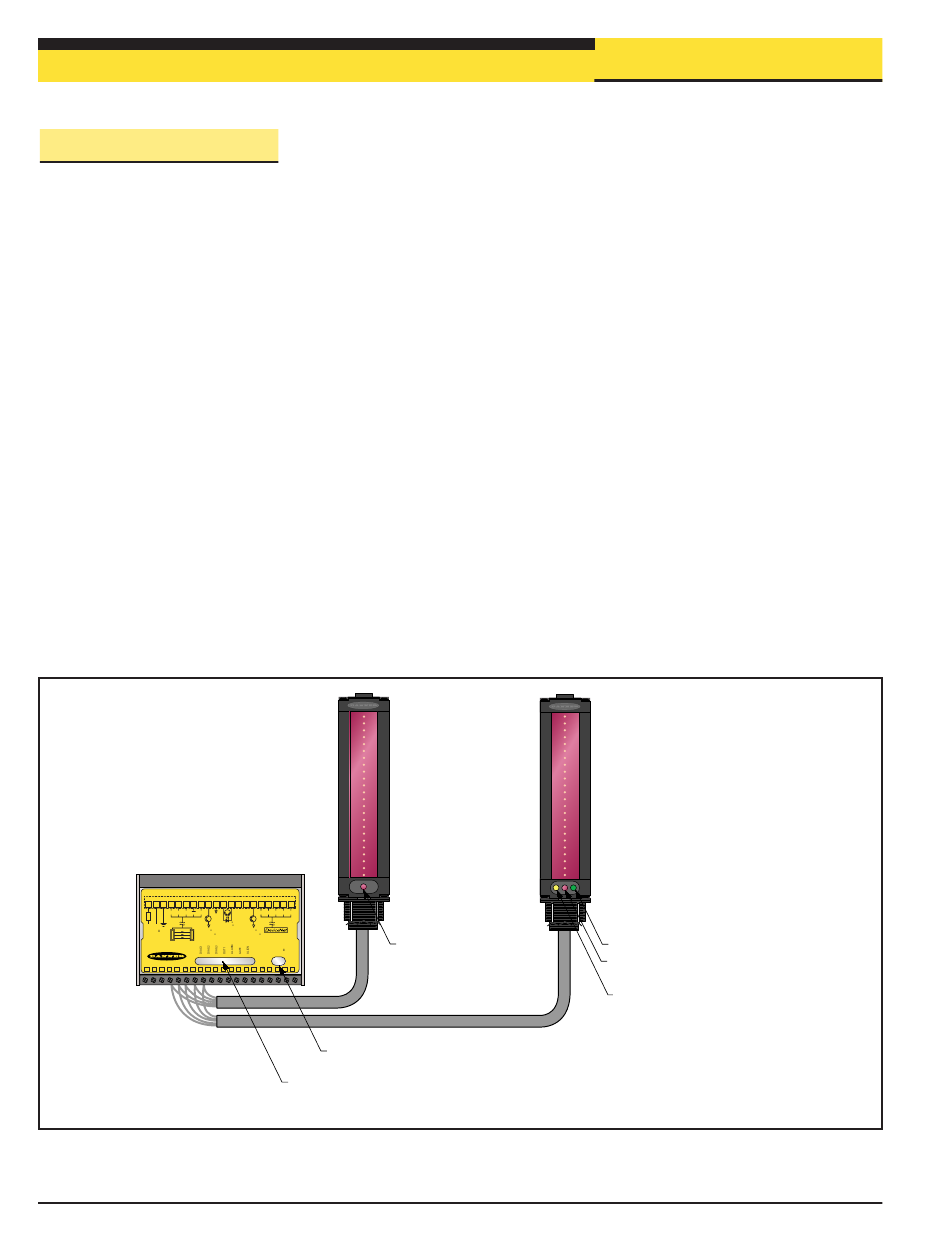

Figure 1-2. A-GAGE MINI-ARRAY with DeviceNet System features
6
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
MACNXDN1
NC
NC
V+
CAN_H SHIELD
CAN_L
V-
BR
BU
BK
WH
+
–
5 Wires
10-30V dc
GATE
30V
150mA Max
ALARM
Red
NETWORK
Operational
STATUS
LED
11
12
13
14
15
16
17
18
19
20
Network Status Indicator
Diagnostic/Status Indicators
(see Section 5.1)
Green Blocked LED
Red Marginal
Alignment LED
Yellow
Alignment LED
