Installation and Mechanical Alignment

3. Installation and Mechanical Alignment

3.1 Emitter and Receiver Mounting

ow
Banner MINI-ARRAY emitters and receivers are small, lightweight, and easy to mount; the mounting brackets (supplied) allow ±30
degrees rotation.
From a common point of reference, make measurements to position the emitter and receiver in the same plane with their midpoints
directly opposite each other. Mount the emitter and receiver brackets using the M4 x 0.7 x 14 mm bolts and associated mounting
hardware (all supplied). See Figure 3-1.
ed
Although the internal circuitry of the emitter and receiver can withstand heavy impulse forces, vibration isolators can be used
instead of the M4 bolts to dampen impulse forces and prevent possible damage from resonant vibration of the emitter or receiver
assembly. Two different Anti-Vibration Mounting Kits are available from Banner as accessories.
Mounting
Surface
M4
Nut (4)
Torque to
12 in. lbs.
(1.3 N-m)
Compression
Washer (4)

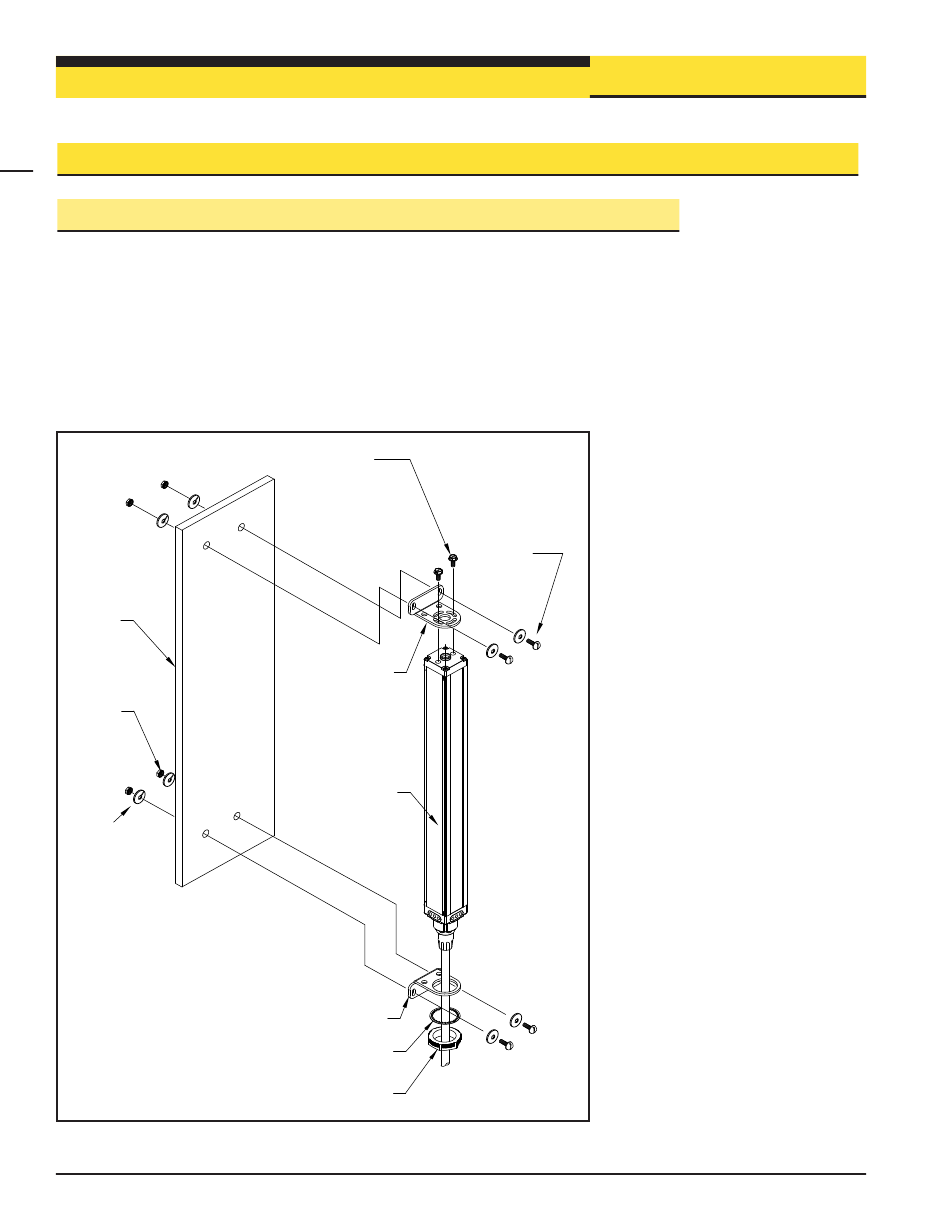

Figure 3-1. A-GAGE MINI-ARRAY emitter and receiver mounting hardware
14
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
M4 x 10 mm
Slotted Hex Head
with Compression
Washer (2)
Mounting
Bracket
Emitter
or
Receiver
Mounting
Bracket
Washer
Nut
P/N 48955 consists of 4 anti-vibration
mounts (M4 x 0.7 x 9.5 mm) and
8 M4 Keps nuts. These mounts are
made from BUNA-N rubber and are
more resistant to chemicals and oils.
P/N 12847 consists of 4 anti-vibration
M4 x 14 mm
Screw with Flat
mounts (M4 x 0.7 x 9.5 mm) and
Washer
8 M4 Keps nuts. These mounts are
made from natural rubber, which
are less chemically resistant than
the 48955 mounts, but have a
greater sheer force spec at higher
temperature.
