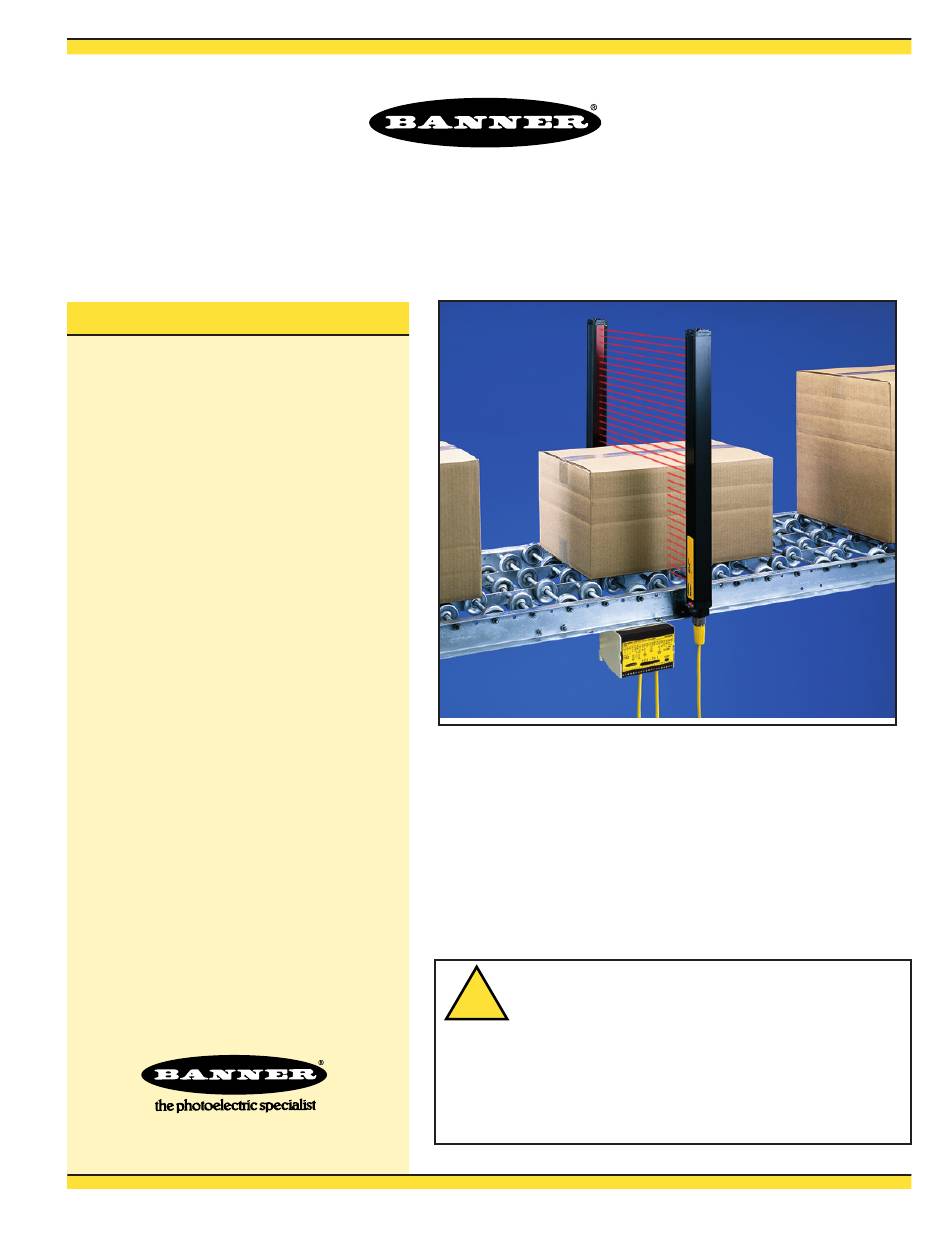

A-GAGE
(Control Modules MACNXDN-1 and MACPXDN-1 with DeviceNet ™ Interface)
A-GAGE MINI-ARRAY Features
• Measuring light screen system for
profiling and inspection applications
• Compact control module and sensors
• Controller is programmable, using
DeviceNet configuration software and
supplied EDS files for:
– 8 measurement ("Scan Analysis")
modes
– 4 scanning methods
– Beam blanking
– Selectable continuous, gated or host-
controlled scan initiation
– Programmable hysteresis for high and
low limits
• Two Discrete outputs
• Separate Gate input allows external
control of scan initiation, for example, by
a presence sensor
• Low cost, compared with similar systems
• Working range up to 17 m (55'),
depending on model
• Wide field of view, easily aligned
Printed in USA
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
™
MINI-ARRAY
!
circuitry necessary to allow their use in personnel safety applications. A
sensor failure or malfunction can cause either an energized or de-energized
output condition. Consult your current Banner Safety Products catalog for
safety products which meet OSHA, ANSI and IEC standards for personnel
protection.
®
Instruction Manual
WARNING . . .
Not To Be Used for Personnel Protection
These sensors do NOT include the self-checking redundant
P/N 59437 rev. A
Advertisement
Table of Contents
Related Manuals for Banner A-GAGE MINI-ARRAY MACNXDN-1
Summary of Contents for Banner A-GAGE MINI-ARRAY MACNXDN-1
- Page 1 A sensor failure or malfunction can cause either an energized or de-energized output condition. Consult your current Banner Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for personnel protection.
- Page 2 Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
-
Page 3: Table Of Contents
Table of Contents 1. System Description......... . . 4 1.1 System Components . -
Page 4: System Description
DeviceNet network. EDS files are supplied to work with the user’s DeviceNet configuration tool to interface and program the controller. Cables connecting the MINI- ARRAY System with the facility’s Bus network are user-supplied. Contact your Banner sales engineer or interlinkBT for cable information. - Page 5 System Description Emitter and Receiver Models 3/4" Beam Spacing (16 Beams/Ft) 3/8" Beam Spacing (32 Beams/Ft) Housing Receiver Length Models Total Beams Models Total Beams 201 mm BMEL616A Emitter BMEL632A Emitter (7.9") BMRL632A Receiver 356 mm BMEL1216A Emitter BMEL1232A Emitter (14.0") BMRL1216A Receiver BMRL1232A Receiver...
-
Page 6: System Features
System Description 1.2 System Features Built-in features simplify the operation of the A-GAGE MINI-ARRAY System. Emitters and receivers, available in a choice of two resolutions and 10 lengths, provide the right size and precision needed for many applications. Programmable beam blanking accommodates machine components or other fixtures that must remain in or move through the light screen. -
Page 7: Devicenet Features
System Description 1.3 DeviceNet Features The A-GAGE MINI-ARRAY System connects to the DeviceNet Bus network using simple junction boxes or “T” connectors. An Electronic Data Sheet (EDS) is supplied with each controller to assist in device configuration. The MINI-ARRAY System may be configured by any of a number of DeviceNet configuration tools;... -
Page 8: Specifications
Sensors connect to controller using 5-conductor quick-disconnect cables (one each for emitter and Connections receiver), ordered separately; see page 5 for available lengths. Use only Banner cables, which incorporate a “twisted pair” for noise immunity. Cables measure 8.1 mm (0.32") dia. and are shielded and PVC-jacketed. - Page 9 Specifications With mounting bracket flanges “out” With mounting bracket flanges “in” 53.8 mm 38.1 mm (2.12") Square (1.50") 2.5 mm *Distance X to (0.10") First Beam 18.3 mm 10.2 mm (0.72") (0.40") 71 mm (2.8") *Dis tance X to First Beam R13 mm (0.5") 3/4"...
-
Page 10: Control Module Specifications
Specifications 2.2 Control Module with DeviceNet Specifications DeviceNet Configurations Vendor code: 12 (Banner Corp.) Device type: Product code: 1 (MACNXDN-1) 2 (MACPXDN-1) Connection types supported: Explicit Message, Poll, COS Network address: 0-63 (network configured) Baud rate supported: 125K, 250K, 500K (network configured) - Page 11 Specifications 115.0 mm (4.53") 106.0 mm 81.0 mm (4.17") (3.19") 96.0 mm (3.78") 5.0 mm (0.20") 35.0 mm (1.38") 69.0 mm DIN mounting slot (2.72 ") 5.5 mm Slot for M3.5 screws (2) (0.22") Figure 2-2. Control module dimensions Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com...
-
Page 12: Devicenet Attribute Information
Specifications 2.3 DeviceNet Attribute Information I/O Data Mapping I/O Message Types Polled Produced Data Size 8 bytes 8 bytes Consumed Data Size 0 bytes 0 bytes I/O Data Attribute Format, Poll and COS BYTE BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2... - Page 13 Specifications (Items in parentheses are Factory Default Settings) Analysis Mode 1 (FBB) Output 2 Analysis Mode (Disabled) FBB: First Beam Blocked Trigger FBM: First Beam Made Alarm LBB: Last Beam Made Disabled LBM: Last Beam Made Analysis Mode 1 TBB: Total Beams Blocked Analysis Mode 2 TBM: Total Beams Made Single Scan (No)
-
Page 14: Installation And Mechanical Alignment
3. Installation and Mechanical Alignment 3.1 Emitter and Receiver Mounting Banner MINI-ARRAY emitters and receivers are small, lightweight, and easy to mount; the mounting brackets (supplied) allow ±30 degrees rotation. From a common point of reference, make measurements to position the emitter and receiver in the same plane with their midpoints directly opposite each other. -
Page 15: Control Module Mounting
Installation and Mechanical Alignment Mount the emitter and receiver in their brackets and position the red lenses of the two units so they directly face each other. The connector ends of both sensors must point in the same direction. Measure from one or more reference planes (e.g. the building floor) to the same point(s) on the emitter and receiver to verify their mechanical alignment. -
Page 16: Hookups
Installation and Mechanical Alignment 3.3 Hookups Connections are made to the MACNXDN-1 and MACPXDN-1 control modules via 20 wiring terminals located along the front surface of the module. Refer to Figures 3-3 and 3-4 for the appropriate hookup information. NOTE: The controller must be powered up before the DeviceNet connection in every power-up situation, for proper operation. -
Page 17: Emitter And Receiver Hookups
Installation and Mechanical Alignment 3.3.1 Emitter and Receiver Hookups Trim braided shield flush with cable Trim foil shield flush Emitters and receivers connect together in parallel to terminals #4 through #8 of the with cable control module (identical for both control module models). See Figures 3-3 and 3-4 for wire color information. -
Page 18: Control Module Configuration
Control Module Configuration 3.3.4 DeviceNet Communication Hookups 4. Control Module Configuration The A-GAGE MINI-ARRAY control module is easily configured using the supplied EDS file and the user’s DeviceNet configuration tool. 4.1 Communications Setup See Section 3.3.4, page for information on connecting the MINI-ARRAY control module to the DeviceNet network. -
Page 19: Control Mode Selection
Control Module Configuration 4.4 Control Mode Selection The control mode determines the method used to control scanning of the light screen array. Choose from three scan control modes: • Continuous Scan mode (the Factory default setting), • Host Command mode, and •... -
Page 20: Scanning Methods
Control Module Configuration 4.5 Scanning Methods The control module offers the choice of one of four scanning methods: • Straight scan • Interlaced scan • Edge scan • Skip scan Straight Scan is the default mode in which all beams are scanned in sequence from the bottom end (cable end) to the top end of the array. -
Page 21: Scan Analysis Mode Selection
Control Module Configuration Receiver 4.6 Scan Analysis Mode Selection Last Beam Made (LBM) First Beam Made (FBM) Emitter The control module may be programmed, if desired, for any one or two of eight Scan In Last Beam Made mode, Analysis (measurement) Modes. Each selected mode may be assigned individually to last beam is #37 of 48 an output. -
Page 22: Output Configuration (Analysis Mode Assignment)
Control Module Configuration 4.7 Output Configuration (Analysis Mode Assignment) Both outputs #1 and #2 (“Alarm”) individually may be assigned to one of the Scan Analysis Modes selected for Meas 1 or Meas 2 or they may be Disabled. Either output may be disabled, but not both at the same time. -
Page 23: System Diagnostics
System Diagnostics 5. System Diagnostics System diagnostics may be performed using the status and diagnostics indicators on the control module and sensors. 5.1 Diagnostics/Status Indicators NOTE: Status indicators appear to “freeze” if the controller is configured for Gate or Host mode (Section 4.4), and no signal is present to cause a scan update. -
Page 24: Appendix: Glossary
This warranty does not cover damage or liability for the improper application of Banner products. This warranty is in lieu of any other warranty either expressed or implied.
