Installation and Mechanical Alignment

3.3 Hookups

Connections are made to the MACNXDN-1 and MACPXDN-1 control modules via 20
wiring terminals located along the front surface of the module. Refer to Figures 3-3
and 3-4 for the appropriate hookup information.
NOTE: The controller must be powered up before the DeviceNet connection in every
power-up situation, for proper operation.
1 2 3 4 5 6 7
F1
V+ V-
EMITTER and
16 - 30V dc
RECEIVER CABLES
1.2A MAX

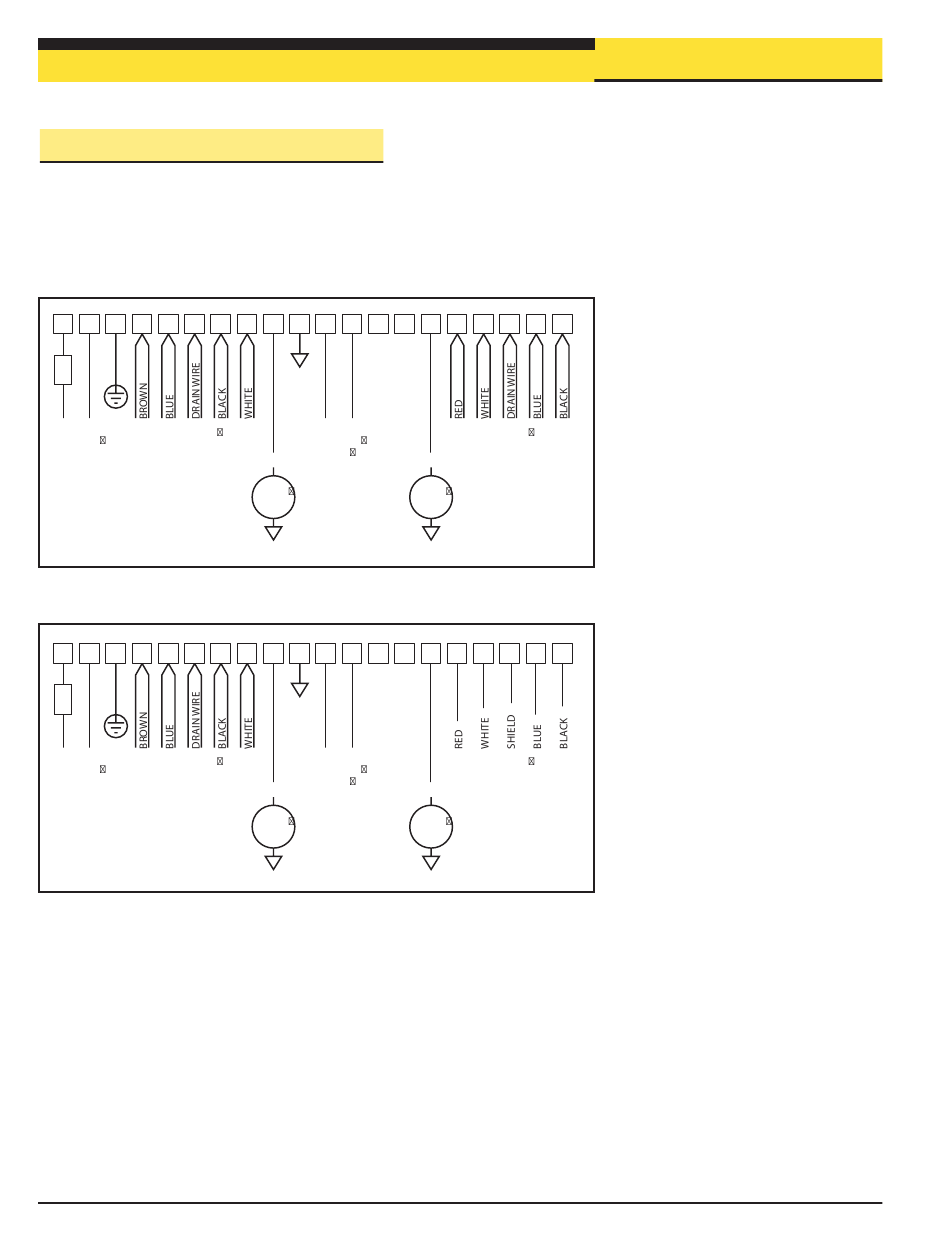

Figure 3-3. MACNXDN-1 hookup (2 NPN discrete outputs)
1 2 3 4 5 6 7
F1
V+ V-
EMITTER and
16 - 30V dc
RECEIVER CABLES
1.2A max.
Figure 3-4. MACPXDN-1 hookup (2 PNP discrete outputs)
