System Diagnostics; Diagnostics/Status Indicators - Banner A-GAGE MINI-ARRAY MACNXDN-1 Instruction Manual

MINI-ARRAY CONTROLLER for DeviceNet
POWER
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 D5 D4 D3 D2 D1
NC NC
+12V COM DRN T/R T/R
F1
BR BU BK WH
+ –
5 Wires
V+ V-
10-30V dc
GATE
16 - 30V dc 30V 30V
150mA Max 150mA Max
1.2A MAX
OUT1 ALARM
EMTR RCVR
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Diag1
Diag2
Diag3

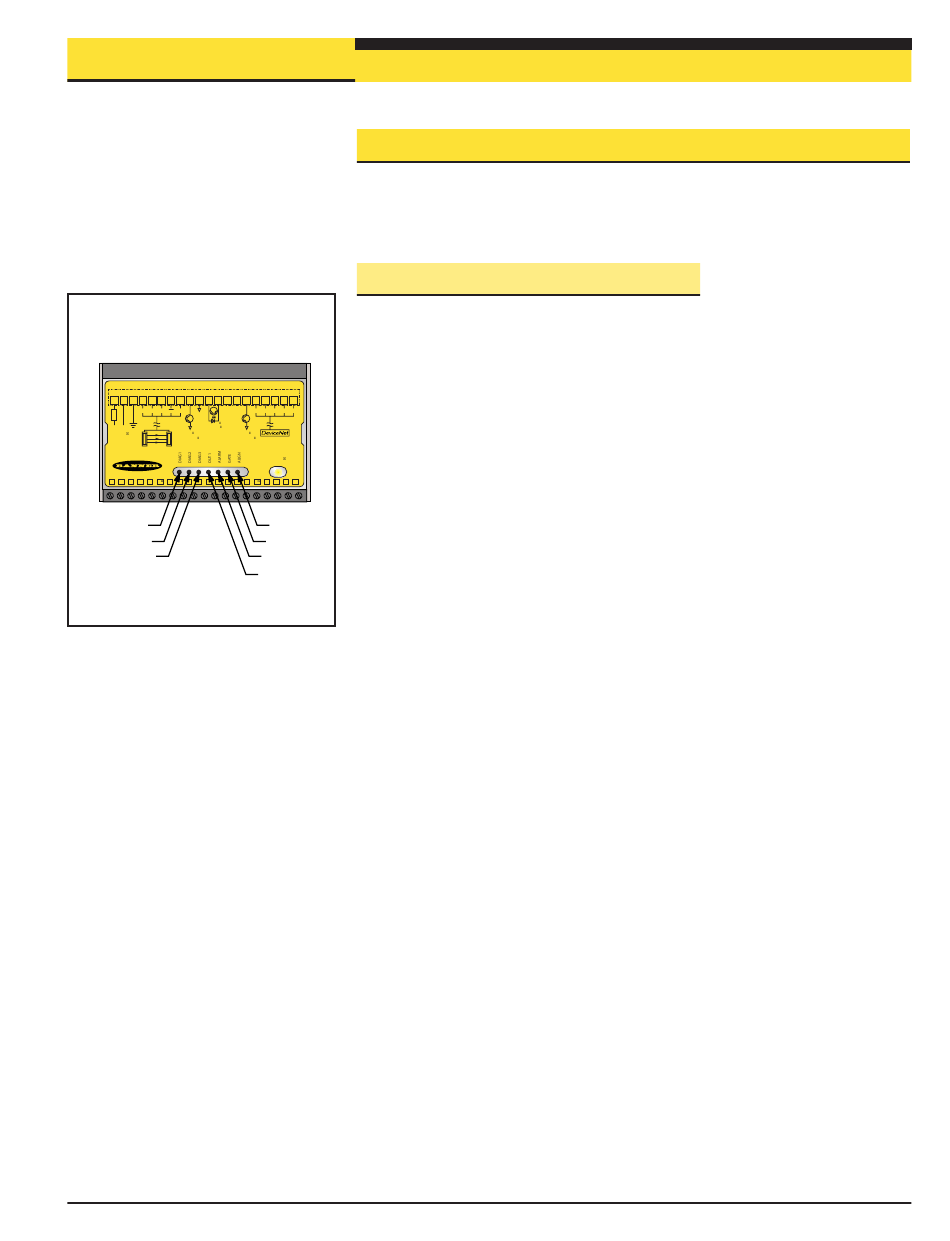

Figure 5-1. A-GAGE MINI-ARRAY with
DeviceNet System diagnostics
and status indicators
23
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com

5. System Diagnostics

System diagnostics may be performed using the status and diagnostics indicators on the
control module and sensors.

5.1 Diagnostics/Status Indicators

NOTE: Status indicators appear to "freeze" if the controller is configured for Gate or Host
mode (Section 4.4), and no signal is present to cause a scan update.
Bright, easy-to-see LED indicators on both sensors and on the front panel of the
MACNXDN1 control module provide an ongoing display of the system's operating status.
V+ CAN_H SHIELD CAN_L V-
Control Module:
BR BU BK WH
5 Wires
Output (steady red) indicates Output #1 energized.
NETWORK
STATUS
Alarm (flashing red) indicates Output #2 energized. This output may be assigned to an
16 17 18 19 20
analysis mode, or it may be used as a System Diagnostics alarm or as a Trigger alarm
to gate another A-GAGE MINI-ARRAY System.
Align
Gate
Gate (steady red) displays the status of the Gate input.
Alarm
Out1
Alignment: (steady green) indicates proper emitter/receiver alignment and a clear,
unblocked light screen. This indicator is ON when either the green or both the green
and yellow LEDs of the receiver are ON.
Diag 1, Diag 2, Diag 3: These three Diagnostics indicators are used in combination to
determine System status, as shown in the following table.
Diag 1 (Green) Diag 2 (Red) Diag 3 (Red)
ON
ON
ON
ON
OFF
OFF
OFF
Network Status Indicator: Bi-colored (red/green) LED indicates network status.
Steady Green
Flashing Green On-line, address and baud rate OK
Steady Red
Flashing Red
OFF
Emitter:
Operational (steady red) LED indicates power to the emitter is ON.
Receiver:
Blocked (steady red) LED indicates some of the array beams are blocked.
Marginal (steady yellow) LED indicates that array alignment is marginal.
Alignment: (steady green) LED indicates that array alignment is satisfactory.
OFF OFF Normal operation
ON OFF Receiver error
OFF ON Emitter error
ON ON Emitter/receiver mismatch
ON OFF Controller error
OFF ON EEPROM error
ON ON ROM/RAM error
Online, connected to Master.
Critical network fault or duplicate node address detected
Connection timeout
No network power, or offline
System Diagnostics
Condition
