Arjo Auralis Quick Reference Manual

QUICK REFERENCE GUIDE - USE
Auralis
Assemble mattress overlay or mattress replacement and pump
1
Mattress overlay:
Place on top of base mattress.
Secure with 4 fixing straps.
3
CPR unit is clicked into
closed position.
Assemble seat cushion and pump
1
Seat cushion:
Place on chair surface.
Use the fixing straps to attach.
• tubeset at foot end
• CPR at head end
• cells facing up
Mattress replacement:
Place on bed base. Attach the 8
securing straps to moving parts of
bed frame (+ 3 at head end for Auralis
Plus only)
4 4

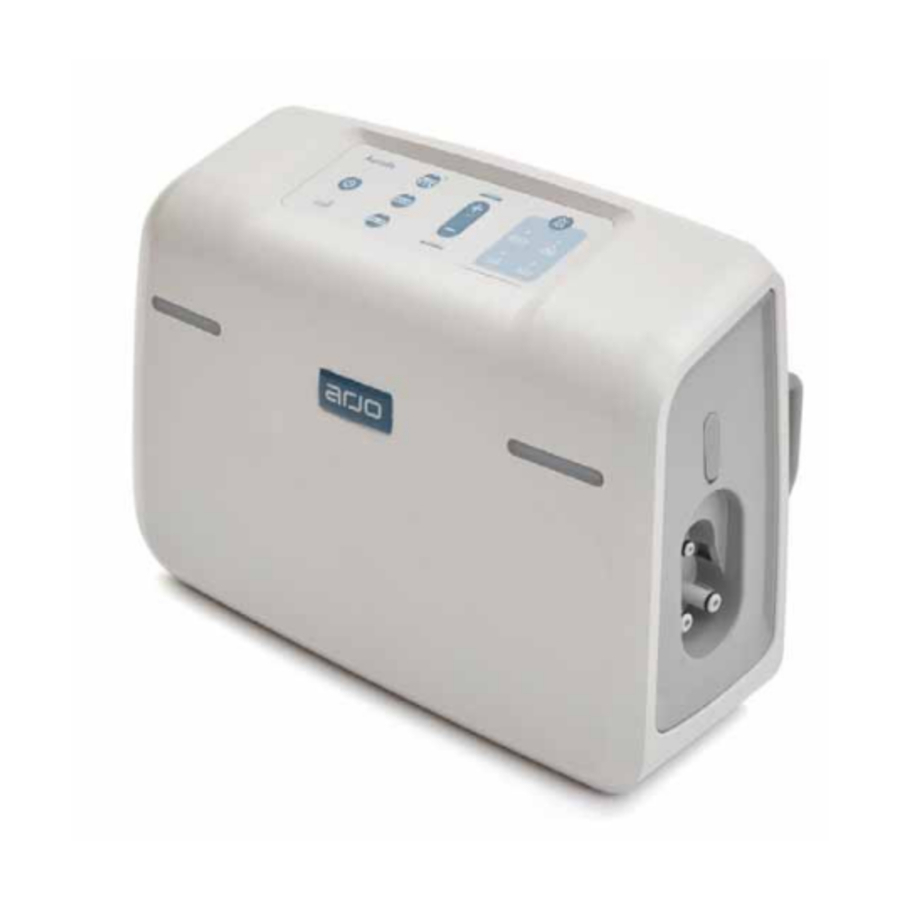

Hang the pump at the
foot end of the bed.
Front of chair
• cells facing up
• tubeset at front right corner
• cells horizontal across chair,
V-shape towards front
08.AI.02EN_04 • 09/2022 • Page 1/4
5
Connect the tubeset.
2
Back of chair
Place pump on floor, cable under chair,
tubeset placed alongside chair.
Connect the tubeset.
Connect power cable to power source.
2
Auralis
Zip the protective cover
over the mattress. Arjo
logo visible at the foot
end.
6
Place cable in the cable
management. Close the
flap around the cable with
the press studs.
Connect power cable to
power source.
