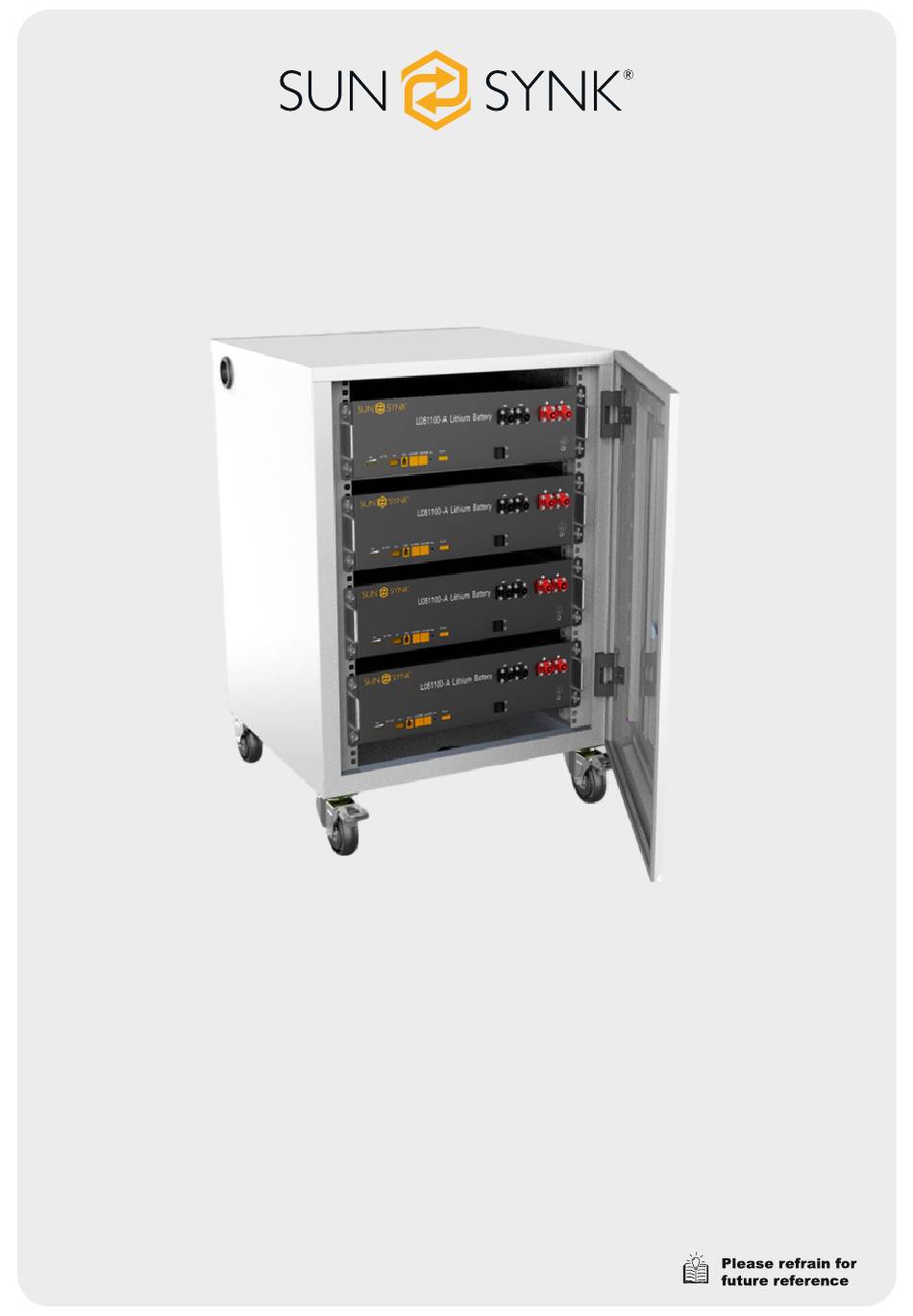

POWER LITE LITHIUM
BATTERY SYSTEM - SSLB1
INSTALLATION MANUAL
Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.
171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong.
Tel: +852 2884 4318 Fax: +8522884 4816
www.sunsynk.com / sales@sunsynk.com / www.globaltechhk.com
v.10 (13/01/23)
1
SUNSYNK SSLB1 | Installation Manual
Advertisement
Table of Contents
Related Manuals for SunSynk SSLB1
Summary of Contents for SunSynk SSLB1
- Page 1 INSTALLATION MANUAL Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building. 171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@sunsynk.com / www.globaltechhk.com v.10 (13/01/23) SUNSYNK SSLB1 | Installation Manual...
-
Page 2: Table Of Contents
3. SPECIFICATIONS AND FUNCTIONS 3.1. Dimensions and Weigh 3.2. Specifications 3.3. System Introduction 4. INSTALLATION 4.1. Installation Location Environment 4.2. Front View 4.3. Recommended DC Breaker 4.4. DC Cable Requirements 4.5. DC Cable Mounting 4.5.1. Material List 4.5.2. Steps 4.6. Master-Slave Configurations 4.6.1. Single Unit 4.6.2. Multi-Units 4.7. Communication 4.7.1. Definition of Voltage Sampling Connector 4.7.2. Definition of Voltage Sampling Connector 4.7.3. Port CAN/RS485 and RS232 5. BATTERY OPERATION AND COMMISSIONING 5.1. System Power ON 5.2. System Power OFF SUNSYNK SSLB1 | Installation Manual... - Page 3 5.3. Sleep and Wake Up Function 5.4. Buzzer Function 5.5. System Status Instruction 5.6. LED Twinkle Status 5.7. SoC Indicator 6. MONITORING 7. TROUBLESHOOTING 8. MAINTENANCE 9. WARRANTY 9.1. Warrantor 9.2. Warrantor 9.3. Warrantor 9.4. Performance Warranty 9.5. Warranty Obligations 9.6. Product Suitability 9.7. Warranty Term 9.8. Persons Entitled to Make Warranty Claims 9.9. Claim Notice 9.10. Warranty Limitations 9.10.1. Excluded Warranty Claims 9.10.2. Internet Connectivity 9.11. General SUNSYNK SSLB1 | Installation Manual...
-
Page 4: Introduction
1. INTRODUCTION Thank you for choosing Sunsynk’s energy storage system. The energy storage module includes lithium-ion rechargeable batteries with 5.12kWh capacity, and the con- troller enables a central of multiple modules. This manual provides information regarding safety precautions to prevent possible accidents and how to use the product. -
Page 5: Safety
The battery should not be installed in direct sunlight. ƒ 2.3. Storage If the system is not placed to use, the system must be stored appropriately. Otherwise, Sunsynk shall not be liable for any issues. It should be stored in 60% SoC status. -
Page 6: Handling
Chemicals should not be used to clean the battery. ƒ 2.6. Damaged Battery A damaged battery should not be used and should be returned to Sunsynk or properly discarded via a recycling facility. Leaking electrolytes can cause skin irruption and chemical burns, so contact should be avoided. -
Page 7: Specifications And Functions
3. SPECIFICATIONS AND FUNCTIONS 3.1. Dimensions and Weigh SSLB1 dimensions are presented below. It is well designed for 19-inch cabinet. Power Lite Lithium Battery System SSLB1 Depth 530mm Width 440mm Height 132mm Weight 48kg SUNSYNK SSLB1 | Installation Manual... -
Page 8: Specifications
Greater than 10 years if used as per warranty terms 3.3. System Introduction SSLB1 Energy Storage System consists of 2 sets of M025100-A modules manufactured by Sunsynk. In each M025100-A, there are 8 pcs of 100 Ah LFP cells originating from CATL. The overall system also provides a standard communication port, i.e., CAN and RS485, to monitor the working status and communicate with the... - Page 9 The batteries are completely compatible with Sunsynk Hybrid Inverters listed below: SUNSYNK-3.6K-SG01LP1 IP65 ƒ SUNSYNK-3.6K-SG02LP1 IP65 ƒ SUNSYNK-5.5K-SG01LP1 IP65 ƒ SUNSYNK-8.8K-SG02LP1 IP65 ƒ SUNSYNK-6K-SG02LP1 ƒ SUNSYNK-7.6K-SG02LP1 ƒ SUNSYNK-8K-3P-SG02LP1 ƒ SUNSYNK-10K-3P-SG02LP1 ƒ SUNSYNK-12K-3P-SG02LP1 ƒ SUNSYNK SSLB1 | Installation Manual...
-
Page 10: Installation
The SSLB1 battery is well-designed to be installed in a 19-inch cabinet. A suitable IP54 or above enclosure must be used if the battery is installed outdoors. -
Page 11: Front View
An overcurrent protection and isolation device between the battery and inverter. The following circuit breaker models (purchased separately) are supported: Circuit Breaker Model Rating Certificate Nader NDB1-125 100 A CCC, CE, CB, TUV, UL1077 NOTE: The circuit breaker should operate positive and negative conductors simultaneously. SUNSYNK SSLB1 | Installation Manual... -
Page 12: Dc Cable Requirements
Ensure all the cables are in safe electrical conditions. ƒ 4.5.1. Material List Plug Isolation Cap Tail-hood 4.5.2. Steps 1. Put the wire through the isolation cap and Tail-Hood. 2. Swipe the outer isolation layer of the DC cable. SUNSYNK SSLB1 | Installation Manual... -
Page 13: Master-Slave Configurations
4.6. Master-Slave Configurations The Master Pack and The Slave Pack, both with the same model (SSLB1), can be used as a single unit and in multi-units (in parallel) mode. The customers must inform the supplier if they intend to connect more batter- ies (multi-units mode), so one can double-check master-slave settings because the DIP address configuration is different if the number of batteries in parallel changes. - Page 14 3. Connect all the batteries to the same grounding point. 4. In order to set the master and slaves, it is necessary to set up the DIP switches (ON or OFF). 5. Follow the settings presented below to set the desired configuration. SUNSYNK SSLB1 | Installation Manual...
-
Page 15: Communication
Wire No. Signal Wire size (mm²) Remarks Signal Cell #1- Signal Cell #2+ Signal Cell #4+ Signal Cell #6+ Signal Cell #8+ B10+ Signal Cell #10+ B12+ Signal Cell #12+ B14+ Signal Cell #14+ B16+ Signal Cell #16+ SUNSYNK SSLB1 | Installation Manual... -
Page 16: Definition Of Voltage Sampling Connector
Pin 3: BMS transmit; Computer receiver Pin 4: BMS receiver; Computer transmit Pin 4: BMS receiver; Computer transmit RS232 Pin 5: GND Pin 5: GND Pin 1, 2, 6: NC Pin 1, 2, 6: NC SUNSYNK SSLB1 | Installation Manual... -
Page 17: Battery Operation And Commissioning
0.25s per 2S during protection. ƒ 5.5. System Status Instruction There are 6 LED indicators, 4 green LEDs that present the status of the SoC, 1 red Alarm LED and 1 green Running Status LED (indicating charging, discharging etc.). SUNSYNK SSLB1 | Installation Manual... -
Page 18: Led Twinkle Status
5.6. LED Twinkle Status Status Twinkle 1 0.25s 3.75s Twinkle 2 0.5s 0.5s Twinkle 3 0.5s 1.5s 5.7. SoC Indicator LED1 LED2 LED3 LED4 0~25% 25%~50% 50%~75% 75%~100% SUNSYNK SSLB1 | Installation Manual... -
Page 19: Monitoring
7. TROUBLESHOOTING The Power Lite SSLB1 battery set is designed to run with most systems as a lead-acid replacement energy storage solution. Lithium batteries have a much higher density related to lead-acid batteries, and they utilise the settings and protections built into the ancillary equipment, the BMS. -
Page 20: Warrantor
Sunsynk Ltd will, at its option, use new and/or reconditioned parts in building replacement parts. Sunsynk Ltd reserves the right to use parts or products of an original or improved design to repair or replace your product. If Sunsynk Ltd repairs or replaces a product part, its warranty continues for the remaining portion of the Warranty Period or 90 days from the date of the repair or replacement, whichever is greater. -
Page 21: Product Suitability
In the event, Sunsynk Ltd determines that an alleged product or services defect did not exist or, if it existed, was excluded from Sunsynk Ltd’s liability by Sunsynk Ltd’s Terms & Conditions, Customer shall reimburse Sunsynk Ltd for all costs and expenses incurred by Sunsynk Ltd as a result of Sunsynk Ltd’s... -
Page 22: Persons Entitled To Make Warranty Claims
9.10. Warranty Limitations 9.10.1. Excluded Warranty Claims a. Sunsynk Ltd makes no warranties, either expressed or implied, orally or in writing, concerning any other warranty coverage except those expressly stated in this limited Factory Warranty. b. The Factory Warranty does not cover damages that occur due to: Transport damage;... -
Page 23: Internet Connectivity
NOT covered by this Factory Warranty. In no event will Sunsynk Ltd be held responsible or liable for any personal injuries resulting from the use of the system or for any other damages, whether direct, indirect, incidental, or consequential, even if Sunsynk Ltd has been advised of such damages. - Page 24 Australia Main Dealer HORTON SOLAR CONSULTING Pty. Ltd 166a King William Road HYDE PARK SA 5061 +61(0)429 075 444 Website: http://www.sunsynk.com Contact: leigh_horton@pm.me Manufacturer Sunsynk Limited (Part of Global Tech) wered by...
