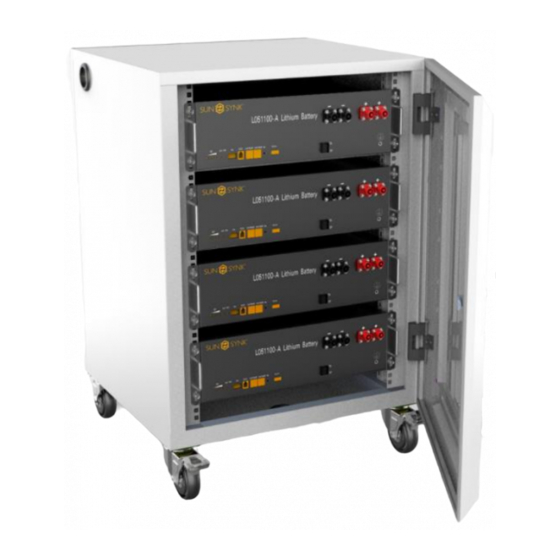

Power Lite Lithium Battery System
L051100-A Product Manual
Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.171 Wai Yip Street,
Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884
4816
www.sunsynk.com / sales@globaltech-china.com /
www.globaltechhk.com
Version 2.0 (24/07/2020)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L051100-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SunSynk L051100-A

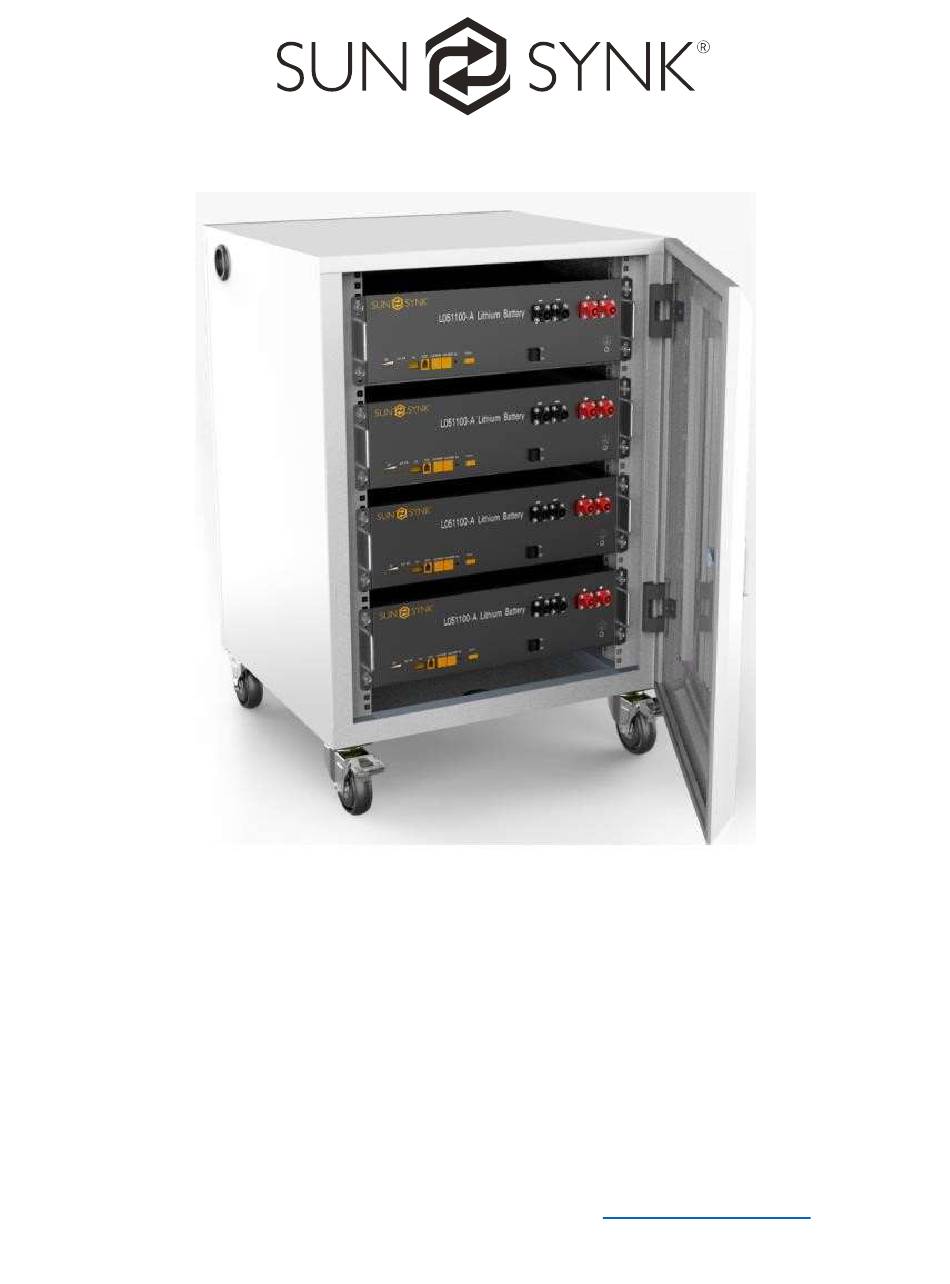

  • Page 1 Power Lite Lithium Battery System L051100-A Product Manual Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@globaltech-china.com / www.globaltechhk.com Version 2.0 (24/07/2020)
  • Page 2: Table Of Contents

    Index INTRODUCTION ..............................3 1.1. M ................................3 EATURES 1.2. S ..............................3 AFETY RECAUTIONS 1.3. P ..............................7 RECAUTIONS FOR SPECIFICATION AND FUNCTIONS ..........................8 2.1. S ..............................8 YSTEM NTRODUCTION 2.2. D .................................. 9 IMENSIONS 2.3. S ................................9 PECIFICATIONS 2.4.
  • Page 3: Introduction

    1.2. Safety Precautions Sunsynk's products are designed with full consideration of safety. However, all electrical appliances can be dangerous if used inappropriately; it can cause a fire or electric shock that leads to severe injury or death.
  • Page 4 If you ignore these instructions, it can lead to a fire or electric shock Warning causing serious injury or death. If you ignore these instructions, it can lead to electric shock or other Caution accidents causing injury or harm to nearby products.
  • Page 5 Do not install the set where excessive oil smoke, steam, moisture or dust is contained in the air. If the set is installed in such a place, it may cause a fire or electric shock. Instruction  1. Wear insulating gloves and protection glasses during installation and connection Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 6 Instruction  Install based on the designated way of installation. If you do not follow the designated way of installation, the set may drop due to the strength poverty and can cause injury. Instruction  Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 7 If liquid is leaking from the module, observe the following measures. Do not allow the liquid to come in contact with skin or clothing.  If the liquid comes in contact with skin or clothing, wash thoroughly with plenty of water.  Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 8: Precautions For Use

    Contact customer service.  1.3. Precautions for Use In the case of a failure, or any of the abnormalities shown below, turn off the set and contact Sunsynk  customer services. 1. Abnormal sound, smell or smoke. 2. Water or particles inside the product.
  • Page 9: Specification And Functions

    L051100-A Energy Storage System is consisted of 2 sets of M025100-A modules manufactured by Sunsynk. In each M025100-A, there are 8 pcs of 100 Ah LFP cell originated from CATL. The overall system also provides standard communication port, i.e. CAN and RS485, to monitor the working status and communicate with upper machine as well as the Power Conversion System (PCS) in front.
  • Page 10: Dimensions

    2.2. Dimensions L051100-A dimensions are presented in Figure 2. It is well designed for 19 inch cabinet. Figure 2 - L051100-A dimensions 2.3. Specifications Specifications of L051100-A Cell Type LiFePO4 (LFP) Rated Voltage 51.2 V Rated Capacity 100Ah Rated Energy 5.12kwh...
  • Page 11 Max. Pulse Discharging Current 200A(2C, 30S, 25°C ±2°C SOC≥40%) Standard Charging Method 0.5C CC to 57.6V, CV at 57.6V till current is 0.05C Working Temp. Charging: 0 ~50 Discharging: -20°C~55°C Working ROH 20%~80% Storage Temp. -20~50°C Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 12: Installing Instructions

    Cell #12+ B14+ Signal Cell #14+ B16+ Signal Cell #16+ Signal Cell #1+ Signal Cell #3+ Signal Cell #5+ Signal Cell #7+ Signal Cell #9+ B11+ Signal Cell #11+ B13+ Signal Cell #13+ B15+ Signal Cell #15+ Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 13: Definition Of Temp. Sampling Connector

    Temp. #4+ Signal Temp. #1- Signal Temp. #2- Signal Temp. #3- Signal Temp. #4- 2.4.3. Front View Figure 3 - Front view of the L051100-A Item Name Model Remarks SOC LED x4 Alarm LED RUN LED Dialer Communication port RJ11...
  • Page 14: Port Rs485 And Rs232

    Pin 1, 4, 5: NC Pin 2, 7: RS485-A RS485 Pin 3, 6: RS485-B Pin 8: GND Pin 1, 2, 6: NC Pin 3: BMS transmit; Computer receiver RS232 Pin 4: BMS receiver; Computer transmit Pin 5: GND Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 15: Installation

    DC cable must be a multicore wire. 3.2. DC Cable Danger Turn off system before doing electrical connection  Ensure all the cables are in electrical safe condition  3.2.1 Material List Plug Isolation Cap Tail-hood 3.2.2 Steps Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 16: Dc Cable Connection

    Tighten the isolation cap and plug contact. Put the positive and negative plug on to the system and tighten it. Use isolation cap for unused DC plug. 3.3. DC Cable Connection 3.3.1 Single Unit Figure 5 - Single unit connection Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 17: Multi-Units In Parallel (4 Sets As An Example)

    3.3.2 Multi-Units in Parallel (4 sets as an example) Figure 6 - Multi-Units Connection Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 18: Method To Set Up Master Pack And Slave Pack

    Master Pack and Slave Pack L051100-A can be used as single unit as well as multi-units (in parallel) mode. The customer must inform supplier if multi-units mode is required. The Master Pack can be used individually, but Slave Pack cannot be used individually.
  • Page 19: Power On And Off

    Installation (including DC cable, communication wire connection and dialer switch) is properly down.  Press Power Switch button, green LED should be twinkling and then turn into function mode. (system  status can be red from LED signal, as shown below) Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 20: Sleep And Wake Up Function

    0.25s per 2S during protection  4.1.5. System Status Instruction There are 6 LED indicator, 4 green LED gives status of SoC, 1 red Alarm LED and 1 green Running Status LED (indicating charging, discharging etc.) Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 21: Led Twinkle Status

    4.1.6 LED Twinkle Status Status Twinkle 1 0.25S 3.75S Twinkle 2 0.5S 0.5S Twinkle 3 0.5S 1.5S 4.1.7. SoC indicator Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
  • Page 22: Transportation And Storage

    It is forbidden to encounter serious vibration and shock during transportation. 5.2. Storage If the system is not placed to use, the system must be properly stored. Otherwise, if any issues, Sunsynk shall not be liable. It should be stored in 60% SoC status.
  • Page 23 Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@globaltech-china.com / www.globaltechhk.com Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
