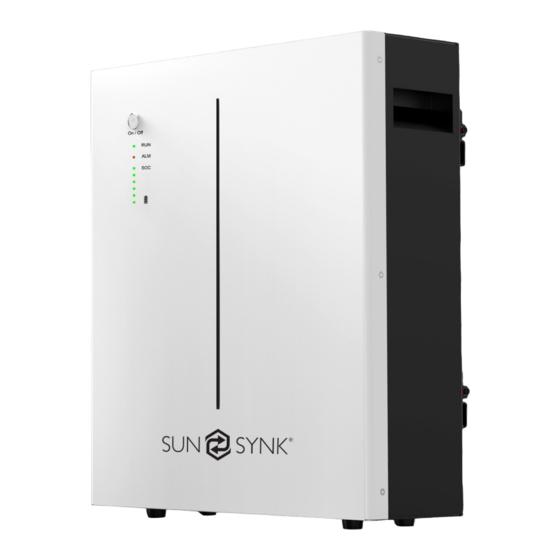

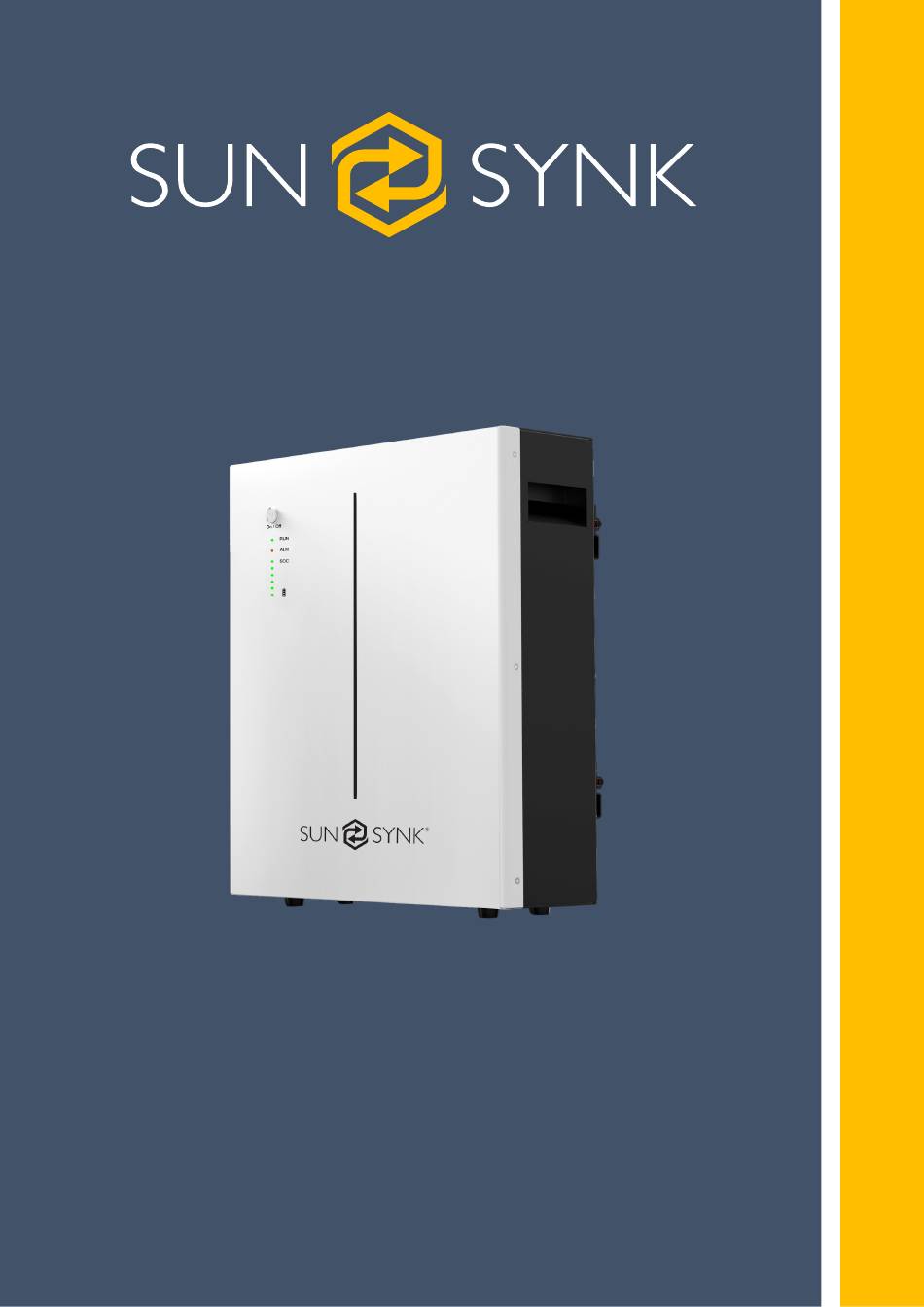

- Page 1 SUN-BATT-5.12 PRODUCT DESCRIPTION Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building. 171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@globaltech-china.com v.1 (03/20/22)
-
Page 2: Table Of Contents
Table of Contents 1. TECHNICAL DATA ..................3 2. PRODUCT OVERVIEW .................5 2.1. Brief Introduction .......................5 2.2. Interface Introduction ....................5 2.2.1. Switch ON/OFF .....................6 2.2.2. LED Indicator Definition ..................6 2.2.3. CAN / RS485 Port ....................7 2.2.4. RS232 Port ......................8 3. INSTALLATION GUIDE .................9 3.1. -
Page 3: Technical Data
1. TECHNICAL DATA Performance Nominal Voltage 51.2 Vdc Nominal Capacity 100Ah Battery Energy1 5120 Wh Charge Voltage 55.68~56.16Vdc Discharge Voltage 45.6-56.16 Vdc Nominal Charge/Discharge Current Nominal Charge/Discharge Power 2500W Max Charge / Discharge Current 100A Max Charge / Discharge Power 5000W Short Circuit Current 350A... - Page 4 1. Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25ºC; 2. Charge/discharge derating occurs when the operating temperature from -10ºC to 5 ºC & 45ºC to 55ºC. 3. Condition apply. Refer to SUN-BATT-5.12 Warranty Letter Hybrid Inverter | Installer Manual Page | 4...
-
Page 5: Product Overview
Multiple SUN-BATT-5.12 can be connected in parallel to expand capacity and power, 8 SUN- BATT-5.12 can be connected in parallel at most. 2.2. Interface Introduction... -
Page 6: Switch On/Off
L1 to L6 shows battery SoC, L7/L8 shows battery status. For multiple SUN-BATT-5.12 in parallel, switch ON rocker switch on all batteries, long press (more than 3 seconds) ON/OFF button of MASTER battery, LED will flash, battery system will au-... -
Page 7: Can / Rs485 Port
Charging Battery Level Indicators Instructions: Status Charging Battery Level Indicator 0 ~ 17% Flash 2 18~ 33% Flash 2 Light 34 ~ 50% Flash 2 Light Light Battery Level 51 ~ 66% Light Flash 2 Light Light Light 67 ~ 83% Flash 2 Light Light... -
Page 8: Rs232 Port
2.2.4. RS232 Port RS232 Communication Terminal (RJ45 port) follow RS232 protocol, for manufacturer or profes- sional engineer to debug or service. Definition Pin 1, Pin 8 Pin 2, Pin 7 RS232_TX Pin 3, Pin 6 RS232_RX Pin 4, Pin 5 Hybrid Inverter | Installer Manual Page | 8... -
Page 9: Installation Guide
3. INSTALLATION GUIDE Check Before Prepare Determine The Start Installation Installation Tools Installation Position Electrical Install Wall Install Battery Connection Bracket 3.1. Checking Before Installation 3.1.1. Checking Outer Packing Materials Packing materials and components may be damaged during transportation. Therefore, check the outer packing materials before installing the battery. - Page 10 Pictures Quantity Description 1PCS Battery 1PCS Wall bracket 2PCS Hanging bracket 1 2PCS Hanging bracket 2 6PCS M8*60 8PCS M6*16 4PCS M4*20 1PCS M4*20 1PCS Manual 1PCS Test report Hybrid Inverter | Installer Manual Page | 10...
-
Page 11: Tools
3.2. Tools Tools Knife Measuring tape Socket wrench (10/16mm) Installation Rubber mallet Cross Screwdriver Hammer drill (8mm) ESD gloves Safety goggles Anti-dust respirator Protection Safety shoes 3.3. Installation Requirements 3.3.1. Installation Environment Requirements ƒ Install the battery in the indoor environment. ƒ... -
Page 12: Dimensions
3.4.1. Dimensions Minimum mounting distance between battery pack and equipment: Hybrid Inverter | Installer Manual Page | 12... -
Page 13: Installation Procedure
3.4.2. Installation Procedure STEP 1 Drill the hole with an 10mm drill bit as follows and fix the wall bracket to the wall. STEP 2 Install the hanging bracket. Page | 13 Hybrid Inverter | Installer Manual... - Page 14 STEP 3 Hang SUN-BATT-5.12 on the wall bracket and tighten it. STEP 4 Connect to ground. Hybrid Inverter | Installer Manual Page | 14...
- Page 15 STEP 5 Connect power cable. STEP 6 Connect communication cable. STEP 6 Connect communication cable. Page | 15 Hybrid Inverter | Installer Manual...
-
Page 16: Battery Power And Communication Connections
ƒ PCS with 100A charge/discharge current connect to SUN-BATT-5.12. 4.1.1. Power Cable Wiring Instructions Each SUN-BATT-5.12 has two pairs of power cable terminals, two P+, and two P-. The connec- tion terminals of each pair have the same function. Single Module In a single module application, any of the terminals of each pair can be used. - Page 17 Page | 17 Hybrid Inverter | Installer Manual...
-
Page 18: Busbar Connection
4.2. Busbar Connection Applicable scenario: ƒ PCS with 200A charge/discharge current connect to SUN-BATT-5.12. Hybrid Inverter | Installer Manual Page | 18... -
Page 19: Parallel Cascade Connection
ƒ All parallel power cables should be of the same length: (L1 = L2 = L3 = L4 = L5 = L6 = L7 = L8) You are advised to use the EV power cables with minimal size of 25 mm2 or 3AWG (600V, 125A) and length min.1500mm. -
Page 20: Maintenance
5. MAINTENANCE 5.1. Recharge Requirements During Normal Storage Battery should be stored in an environment with temperature range between -10°C ~ +45°C, and maintained regularly according to following table with 0.5C (25A) current till 40% SoC after long storage time. Recharge Conditions When In Storage Storage Environment Relative Humidity of... - Page 21 Kowloon, Hong Kong. Tel. HK +852 2884 4318 Fax: +852 2884 4816 Tel. UK +44 151 528 9945 Tel. SA +27 1108 39837 sales@globaltech-china.com Audio Training manuals on Apple Pod Cast and Spotify. Full training support, manuals and videos on www.sunsynk.com...
