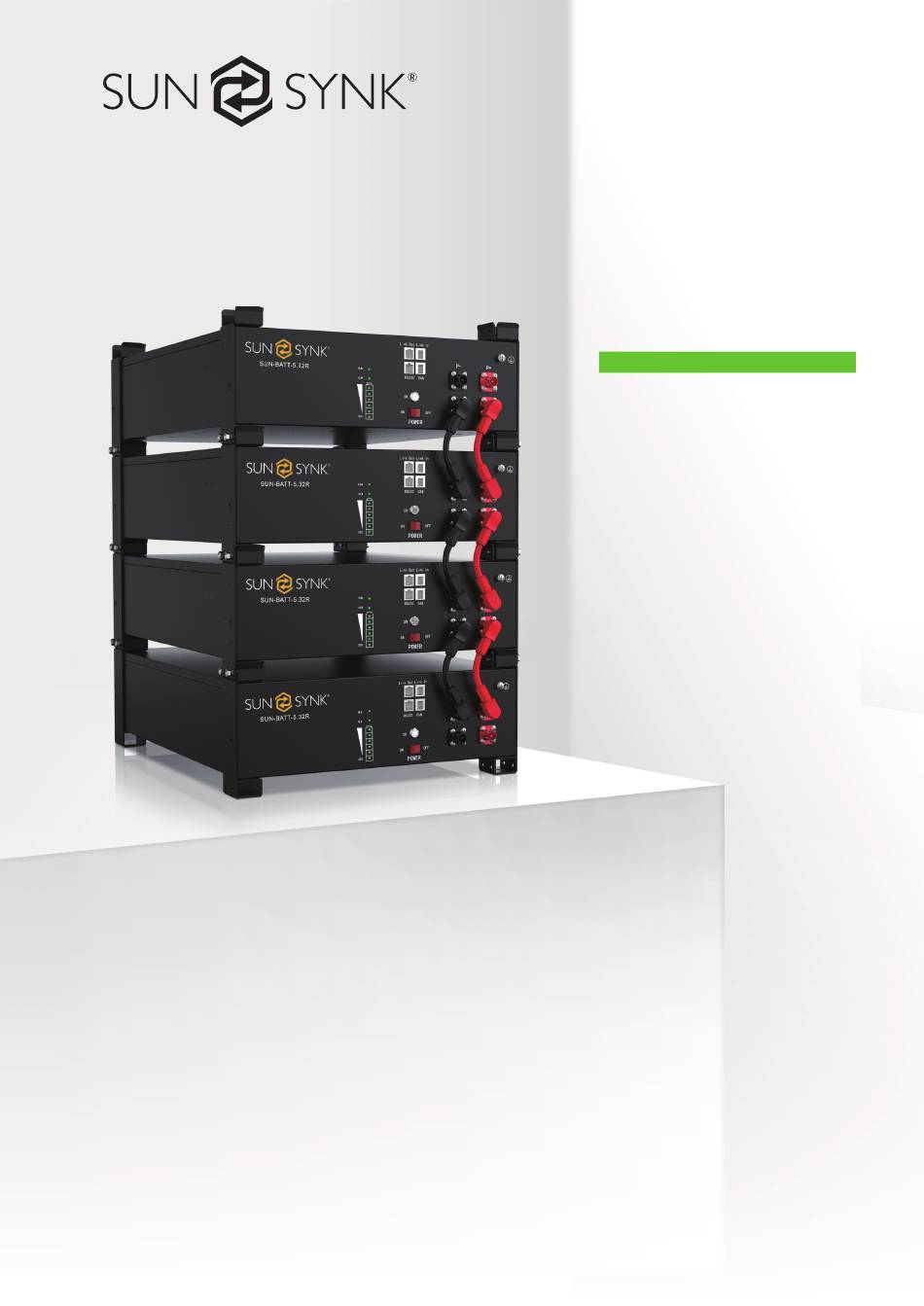

- Page 1 SUN-BATT-5.32R Self consumption Energy independence USER MANUAL SUN-BATT-5.32R Lithium Battery...
-
Page 2: Table Of Contents
SUN-BATT-5.32R Contents 1 Product Overview ....................1 1.1 Appearance ....................1 1.1.1 Rack mounted SUN-BATT-5.32R ..........1 1.1.2 Wall mounted SUN-BATT-5.32R ..........2 1.1.3 Cabinet mounted SUN-BATT-5.32R ........... 2 1.2 Button,LED & Communication Port ............3 1.2.1 Switch ON/OFF ................3 1.2.2 LED Indicator Definition ............. -
Page 3: Product Overview
User Manual SUN-BATT-5.32R Product Overview SUN-BATT-5.32R is a 51.2V 104Ah Lithium battery that can be rack mounted, wall mounted or cabinet mounted. SUN-BATT-5.32R is not suitable for supporting life-sustaining medical devices. Appearance 1.1.1 Rack mounted SUN-BATT-5.32R... -
Page 4: Wall Mounted Sun-Batt-5.32R
User Manual SUN-BATT-5.32R 1.1.2 Wall mounted SUN-BATT-5.32R 1.1.3 Cabinet mounted SUN-BATT-5.32R... -
Page 5: Button,Led & Communication Port
Switch ON/OFF 1. Switch ON For single SUN-BATT-5.32R, switch ON rocker switch ,then long press (more than 3 seconds) ON/OFF button on front panel, LED will flash then battery will operate normally. L1 to L6 shows battery SOC, L7/L8 shows battery status. - Page 6 User Manual SUN-BATT-5.32R LED Indicators Instructions Charging Battery Level Indicators Instructions Discharging Battery Level Indicators Instructions...
-
Page 7: Can / Rs485 Port
User Manual SUN-BATT-5.32R 1.2.3 CAN / RS485 Port CAN / RS485 (RJ45) to PCS Definition Pin 1、Pin 8 RS485-B （to PCS, reserved） Pin 2、Pin 7 RS485-A （to PCS, reserved） Pin 3 Pin 4 CANH（to PCS） Pin 5 CANL（to PCS） Pin6 1.2.4... -
Page 8: Installation Guide
User Manual SUN-BATT-5.32R Installation Guide Checking Deliverables 2.1.1 Rack mounted accessory deliverables Pearl wool Carton Support frame Handle Battery Pearl wool Pictures Quantity Description 1PCS Battery 4PCS Support frame 12PCS M4*8... -
Page 9: Wall Mounted Accessory Deliverables
User Manual SUN-BATT-5.32R M6*50 8PCS 1PCS Manual Test report 1PCS Certificate 1PCS 2.1.2 Wall mounted accessory deliverables Pictures Quantity Description 2PCS Hanging bracket 1PCS Wall bracket M8*60 Expansion 4PCS bolts 2PCS M4*20 M6*16 8PCS... -
Page 10: Tools
User Manual SUN-BATT-5.32R Tools... -
Page 11: Installation Instructions
User Manual SUN-BATT-5.32R Installation Instructions 2.3.1 Dimensions... -
Page 12: Installation Steps (Rack Mounted)
User Manual SUN-BATT-5.32R 2.3.2 Installation Steps (Rack Mounted) Step 1 Remove the handle from the battery. Handle Step 2 Install Support frames at the four corners of the battery. Support frame(M4*8) -
Page 13: Installation Steps (Wall Mounted)
User Manual SUN-BATT-5.32R Step 3 The battery with the support frame is stacked up and down. Fastening plater (M6*50) 2.3.3 Installation Steps (Wall Mounted) Minimum mounting distance requirement: (Wall Mounted) 150mm 150mm 150mm 150mm 150mm 150mm 150mm 150mm... - Page 14 User Manual SUN-BATT-5.32R Step 1 Drill the hole with an 10mm drill bit as follows and fix the wall bracket to the wall. M8*60 Step 2 Install the wall hanging bracket. hanging bracket (M6*16)
-
Page 15: Wiring Steps
User Manual SUN-BATT-5.32R Step 3 Hang the machine on the wall hanging back plate and tighten it. Fastening plater (M4*20) 2.3.4 Wiring Steps Step 1 Connected to ground. - Page 16 User Manual SUN-BATT-5.32R Step 2 Connecting power line. to PCS B+ to PCS B- Step 3 Connect the communication lines. to PCS CAN Port...
- Page 17 User Manual SUN-BATT-5.32R Step 4 When multiple batteries are connected in parallel, follow the following wiring mode. to PCS CAN Port to PCS B+ MASTER to PCS CAN Port Parallel communication cable SLAVE 1 Parallel communication cable SLAVE 2 to PCS B-...
