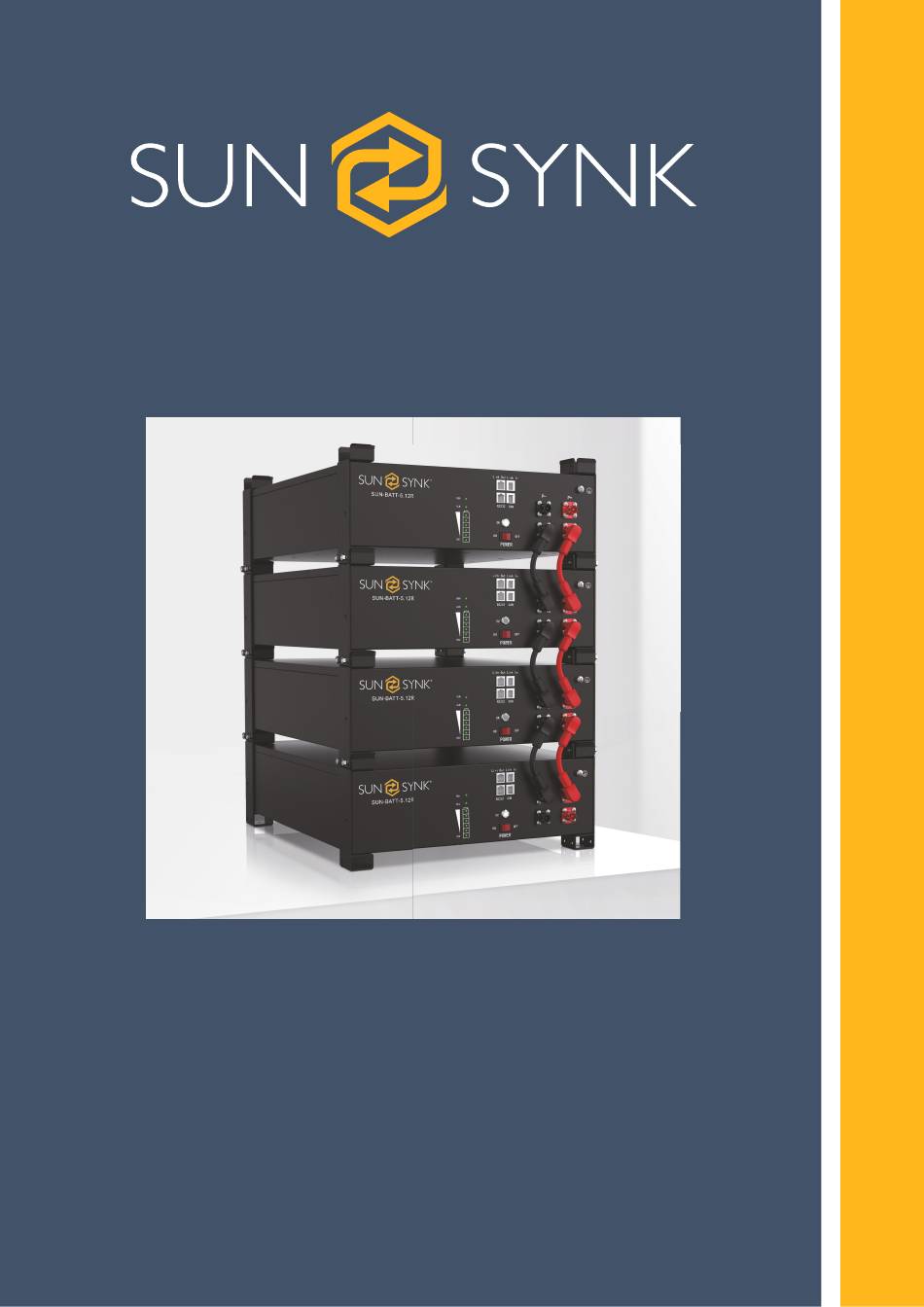

- Page 1 SUN-BATT-5.12R USER MANUAL SUN-BATT-5.12R/BYD 100Ah Rack Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building. 171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@globaltech-china.com v.2 (09/30/22)
-
Page 2: Table Of Contents
Table of Contents 1. TECHNICAL DATA ..................3 1.1. Appearance .......................4 1.1.1. Rack Mounted SUN-BATT-5.12R ................4 1.1.2. Wall Mounted SUN-BATT-5.12R ................5 1.1.3. Cabinet Mounted SUN-BATT-5.12R ...............5 2. PRODUCT OVERVIEW .................6 2.1. Brief Introduction .......................6 2.2. Interface Introduction ....................6 2.2.1. Switch ON/OFF .....................6 2.2.2. -
Page 3: Technical Data
Max 8 batteries in parallel Warranty 5 years Standard Compliance UN38.3, IEC62619, IEC61000, UL 1642(cell) Certification (more available upon request) Ordering and Deliverable Part SUN-BATT-5.12R Battery Product ordering part SUN-BATT-5.12R Power cable SUN-BATT-5.12R Parallel cable Page | 3 SUN-BATT-5.12R | Installer Manual... -
Page 4: Appearance
1. Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25ºC; 2. Charge/discharge derating occurs when the operating temperature from -10ºC to 5 ºC & 45ºC to 55ºC. 3. Condition apply. Refer to SUN-BATT-5.12R Warranty Letter 1.1. Appearance 1.1.1. Rack Mounted SUN-BATT-5.12R SUN-BATT-5.12R | Installer Manual... -
Page 5: Wall Mounted Sun-Batt-5.12R
1.1.2. Wall Mounted SUN-BATT-5.12R 1.1.3. Cabinet Mounted SUN-BATT-5.12R Page | 5 SUN-BATT-5.12R | Installer Manual... -
Page 6: Product Overview
Multiple SUN-BATT-5.12R can be connected in parallel to expand capacity and power, 8 SUN- BATT-5.12R can be connected in parallel at most. - Page 7 34 ~ 50% Light Light Light Level Flash 3 51 ~ 66% Light Light Light Light 67 ~ 83% Light Light Light Light Light 84 ~ 100% Light Light Light Light Light Light Page | 7 SUN-BATT-5.12R | Installer Manual...
-
Page 8: Can / Rs485 Port
RS232 Communication Terminal (RJ45 port) follow RS232 protocol, for manufacturer or profes- sional engineer to debug or service. Definition Pin 1, Pin 8 Pin 2, Pin 7 RS232_TX Pin 3, Pin 6 RS232_RX Pin 4, Pin 5 SUN-BATT-5.12R | Installer Manual Page | 8... -
Page 9: Installation Guide
After unpacking the battery, check whether deliverables are intact and complete. If any damage is found or any component is missed, contact the dealer. The below table shows the components and mechanical parts that should be delivered. 3.2.1. Rack Mounted Accessory Deliverables Page | 9 SUN-BATT-5.12R | Installer Manual... -
Page 10: Wall Mounted Accessory Deliverables
12PCS M4*8 8PCS M6*50 1PCS Manual 1PCS Test report 1PCS Certificate 3.2.2. Wall Mounted Accessory Deliverables Pictures Quantity Description 2PCS Hanging bracket 1PCS Wall bracket 4PCS M8*60 Expansion bolts 2PCS M4*20 8PCS M6*16 SUN-BATT-5.12R | Installer Manual Page | 10... -
Page 11: Tools
3.4.2. Installation Carrier Requirements ƒ Only mount battery on fire resistant building. Do not install batteries on flammable buildings. ƒ Battery is quite heavy, make sure the wall/ground can meet the load bearing requirements. Page | 11 SUN-BATT-5.12R | Installer Manual... -
Page 12: Installation Instructions
3.5. Installation Instructions 3.5.1. Dimensions SUN-BATT-5.12R | Installer Manual Page | 12... -
Page 13: Installation Steps (Rack Mounted)
STEP 1 Remove the handle from the battery. STEP 2 Install Support frames at the four corners of the battery. STEP 3 The battery with the support frame is stacked up and down. Page | 13 SUN-BATT-5.12R | Installer Manual... -
Page 14: Installation Steps (Wall Mounted)
3.5.3. Installation Steps (Wall Mounted) Minimum mounting distance requirement (Wall Mounted): STEP 1 Drill the hole with an 10mm drill bit as follows and fix the wall bracket to the wall. SUN-BATT-5.12R | Installer Manual Page | 14... - Page 15 STEP 2 Install the wall hanging bracket. STEP 3 Hang the machine on the wall hanging back plate and tighten it. Page | 15 SUN-BATT-5.12R | Installer Manual...
-
Page 16: Battery Power And Communication Connections
4. BATTERY POWER AND COMMUNICATION CONNECTIONS 4.1. Wiring Steps STEP 1 Connect the battery to ground. STEP 2 Connect the battery power line. STEP 3 Connect the communication lines. SUN-BATT-5.12R | Installer Manual Page | 16 Page | 16... -
Page 17: Parallel Cascade Connection
4.2. Parallel Cascade Connection 4.2.1. Power Cable Wiring Instructions Each SUN-BATT-5.12R has two pairs of power cable terminals, two P+, and two P-. The con- nec- tion terminals of each pair have the same function. Single Module In a single module application, any of the terminals of each pair can be used. -
Page 18: Wiring Diagram For Parallel Cascade Connection
4.2.3. Wiring Diagram for Parallel Cascade Connection When multiple batteries are connected in parallel, follow the following wiring mode. SUN-BATT-5.12R | Installer Manual Page | 18... -
Page 19: Maintenance
Recharge conditions when battery is over discharged Storage Environment Storage Time Note Temperature -10~25ºC ≤15 days Battery Pack disconnected from PCS 25~35ºC ≤7 days 35~45ºC <12 hours Battery Pack connected to PCS Page | 19 SUN-BATT-5.12R | Installer Manual... - Page 20 Kowloon, Hong Kong. Tel. HK +852 2884 4318 Fax: +852 2884 4816 Tel. UK +44 151 528 9945 Tel. SA +27 1108 39837 sales@globaltech-china.com Audio Training manuals on Apple Pod Cast and Spotify. Full training support, manuals and videos on www.sunsynk.com...
