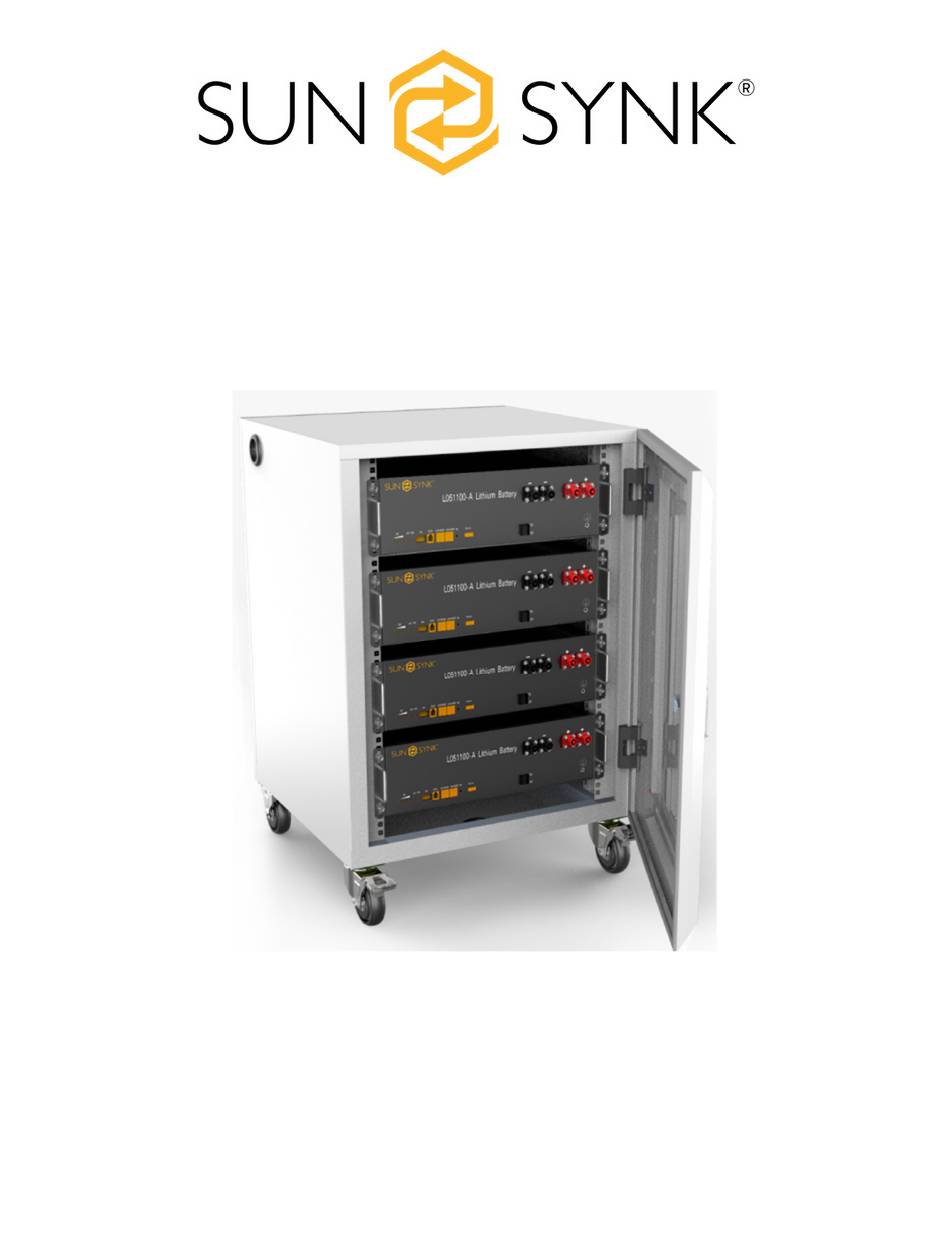

- Page 1 Power Lite Lithium Battery System SSLB1 INSTALLATION MANUAL Global Tech China Ltd, 3-Floor, Wai Yip Industrial Building.171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@globaltech-china.com / www.globaltechhk.com V7.0 – 03/22/2021...
-
Page 2: Table Of Contents
Index 1. INTRODUCTION ............................4 2. SAFETY ..............................5 2.1. T ............................5 RANSPORTATION 2.2. I ..........................5 NSTALLATION OCATION 2.3. S ..............................5 TORAGE 2.4. G ............................5 ENERAL AFETY 2.5. H ..............................6 ANDLING 2.6. D ............................6 AMAGED ATTERY 2.7. - Page 3 5.7. S ............................19 INDICATOR 6. MONITORING ............................. 20 7. TROUBLESHOOTING ........................... 20 8. MAINTENANCE ............................20 9. WARRANTY ..............................20 9.1. W .............................. 20 ARRANTOR 9.2. P ..............................20 RODUCTS 9.3. P ..........................21 RODUCT ARRANTY 9.4. P ........................... 21 ERFORMANCE ARRANTY 9.5.
-
Page 4: Introduction
1. INTRODUCTION Thank you for choosing Sunsynk’s energy storage system. The energy storage module includes lithium-ion rechargeable batteries with 5.12kWh capacity, and the controller enables a central of multiple modules. This manual provides information regarding safety precautions to prevent possible accidents and how to use the product. -
Page 5: Safety
The battery should not be installed in direct sunlight. 2.3. Storage If the system is not placed to use, the system must be properly stored. Otherwise, Sunsynk shall not be liable for any issues. It should be stored in 60% SoC status. -
Page 6: Handling
Chemicals should not be used to clean the battery. 2.6. Damaged Battery A damaged battery should not be used and should be returned to Sunsynk or properly discarded via a recycling facility. Leaking electrolytes can cause skin irruption and chemical burns, so contact should be avoided. -
Page 7: Specifications And Functions
3. SPECIFICATIONS AND FUNCTIONS 3.1. Dimensions and Weigh SSLB1 dimensions are presented in Figure 1. It is well designed for 19-inch cabinet. Power Lite Lithium Battery System SSLB1 Depth... -
Page 8: Specifications
3.2. Specifications Power Lite Lithium Battery System SSLB1 Cell Type Lithium Ferro Phosphate (LifePO4 or LFP) Nominal Operating Voltage 51.2V Nominal Capacity 100Ah / 5.12kWh Rated DC Output Power 2.56kW Depth of Discharge (DoD) 100% Usable Capacity 5.12kWh Packing 1P16S... -
Page 9: System Introduction
3.3. System Introduction SSLB1 Energy Storage System is consisted of 2 sets of M025100-A modules manufactured by Sunsynk. In each M025100-A, there are 8 pcs of 100 Ah LFP cell originated from CATL. The overall system also provides standard communication port, i.e. CAN and RS485, to monitor the working status and communicate with upper machine as well as the Power Conversion System (PCS) in front. -
Page 10: Installation
For proper air circulation to dissipate heat, allow a clearance of approximately 30 cm to the sides of the battery. DO NOT install the set near heat sources. Figure 3 – Minimum clearance. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 11: Front View
The SSLB1 battery is well designed to be installed in a 19-inch cabinet. If the battery is going to be installed outdoors, a suitable IP54 or above enclosure must be used. -
Page 12: Recommended Dc Breaker
DC cable must be a multicore wire. 4.5. DC Cable Mounting Turn off system before doing electrical connection Ensure all the cables are in electrical safe condition 4.5.1 Material List Plug Isolation Cap Tail-hood 4.5.2 Steps Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 13: Master-Slave Configurations
4.6. Master-Slave Configurations The Master Pack and The Slave Pack, both with the same model (SSLB1), can be used as single unit as well as multi-units (in parallel) mode. The customers must inform supplier if they intend to connect more batteries (multi-units mode), so one can double-check master-slave settings, because DIP address configuration is different if the number of batteries in parallel changes. - Page 14 Connect all the batteries to the same grounding point; Figure 6 - Multi-Units Connection In order to set the master and slaves, it is necessary to set up the DIP switches (ON or OFF). Follow the settings presented in Figure 8 for each case. Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
- Page 15 Figure 7 - Dial diagram Figure 8 – DIP switches configuration for up to four batteries paralleled. It is also necessary to connect the CAN/RS485 cables between the units. Figure 9 – CAN/RS485 connections for up to four batteries paralleled. Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
-
Page 16: Communication
4.7.2. Definition of Temp. Sampling Connector Wire No. Signal Wire size (mm²) Remarks Signal Temp. #1+ Signal Temp. #2+ Signal Temp. #3+ Signal Temp. #4+ Signal Temp. #1- Signal Temp. #2- Signal Temp. #3- Signal Temp. #4- Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 17: Port Rs485 And Rs232
Press Power Switch button and then the external circuit breaker, the green LED should be twinkling and then turn into function mode. (system status can be red from LED signal, as shown below) Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 18: System Power Off
0.25s per 2S during protection 5.5. System Status Instruction There are 6 LED indicator, 4 green LED gives status of SoC, 1 red Alarm LED and 1 green Running Status LED (indicating charging, discharging etc.) Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 19: Led Twinkle Status
5.6. LED Twinkle Status Status Twinkle 1 0.25S 3.75S Twinkle 2 0.5S 0.5S Twinkle 3 0.5S 1.5S 5.7. SoC indicator Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 20: Monitoring
7. TROUBLESHOOTING The Power Lite SSLB1 battery set is designed as a lead-acid replacement energy storage solution to run with most systems. Lithium batteries have a much higher density related to lead-acid batteries, and they utilise the settings and protections built into the ancillary equipment, the BMS. -
Page 21: Product Warranty
Sunsynk Ltd will, at its option, use new and/or reconditioned parts in building replacement parts. Sunsynk Ltd reserves the right to use parts or products of original or improved design in the repair or replacement of your product. If Sunsynk Ltd repairs or replaces a product part, its warranty continues Website: www.sunsynk.com... - Page 22 In the event of a defect of products or services supplied by Sunsynk Ltd, Customer’s sole remedy shall be, at Sunsynk Ltd’s cost and expense up to 100% of the cost of the equipment, (a) repair or replacement of defective product at Sunsynk Ltd’s discretion, or (b) re-performance of defective services.
-
Page 23: Product Suitability
(‘Claim Notice’) to Sunsynk Ltd within the applicable Warranty Period to Sunsynk Ltd’s address set forth above, or such future address as Sunsynk Ltd may provide from time to time. Any Claim Notice must include the following information: the serial number of the Covered Product for which a Claim Notice is being sent;... -
Page 24: Warranty Limitations
NOT covered by this Factory Warranty. In no event will Sunsynk Ltd be held responsible or liable for any personal injuries resulting from the use of the system, or for any other damages, whether direct, indirect, incidental, or consequential; even if Sunsynk Ltd has been advised of such damages. -
Page 25: General
This limited Factory Warranty and the terms contained herein supersede all statements contained in any and all user manuals, installation manuals, other equipment literature or catalogues, or orally with respect to any product or performance warranty for Covered Products. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... - Page 26 166a King William Road HYDE PARK SA 5061 +61(0)429 075 444 Website: http://www.sunsynk.com Contact: leigh_horton@pm.me Manufacturer Sunsynk Limited (Part of Global Tech) 171 Wai Yip Street Kwun Tong Kowloon Tel: +852 2884 4318 Fax: +852 2884 4816 Website http://www.sunsynk.com Contact: info@globaltech-china.com Website: www.sunsynk.com...
