- Page 1 Power-Maker Battery SSCLK3.1 SSCLK5.6 Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@globaltech-china.com / www.globaltechhk.com Rev. 1 (03/10/21)
-
Page 2: Table Of Contents
INDEX 1. INTRODUCTION ........................3 2. ANC BATTERY CELLS ........................4 3. SAFETY ............................. 6 4. BATTERY TESTING EQUIPMENT AND CONDITIONS ..............7 4.1. A ..........................7 PPEARANCE 4.2. M ......................7 EASUREMENT PPARATUS 4.3. S ......................7 TANDARD ONDITION 4.4. -
Page 3: Introduction

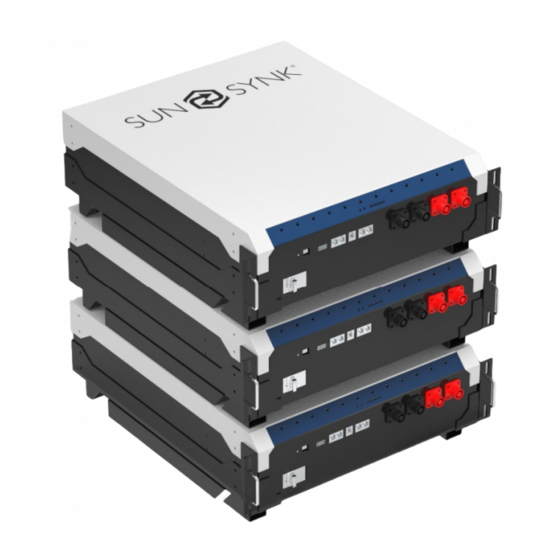

1. INTRODUCTION The Sunsynk Power-Maker Battery has a revolutionary design that allows it to be both wall or rack mounted. It does not require additional components as it comes complete with all accessories. Featured on the front of the Power-Maker Battery is a blue strip which glows indicating that the component is working correctly. -
Page 4: Anc Battery Cells
Maximum Continuous 110A Discharge Current Operation Charge 0~45°C Temperature 60±25%R.H. Bare Cell Discharge -20~55°C Range Less than 12 months: - 10~45ºC Less than 3 months: - Storage Temperature Range 60±25%R.H. at the shipment state 10~45ºC Less than 7 days: - 10~45ºC Dimensions 442 x 520 x 132mm... -
Page 6: Safety
Do not use or store the battery near sources of heat such as a fire or heater. Do not use any chargers other than those recommended by Sunsynk. Do not reverse the positive(+) and negative(-) terminals. Do not connect the battery directly to wall outlets. -
Page 7: Battery Testing Equipment And Conditions
4. BATTERY TESTING EQUIPMENT AND CONDITIONS 4.1. Appearance There shall be no such defect as scratch, bur and other mechanical scratches, and the connector should be no rust dirt. For the structure and dimensions, see the attached drawing of the battery. 4.2. - Page 8 Figure: Capacity retention curve of cell with 1C charge/discharge rate at room temperature Experimental and fitted (fitting based on the steady decrease range, 2000-2800 cycles) capacity retention curve. The cycling test is time-consuming. Therefore, we predicted the cycling life based on the fitted curve.
-
Page 9: Battery Management System
5. BATTERY MANAGEMENT SYSTEM 1) The BMS is designed for 15/16 series lithium battery. 2) The BMS have all functions, which are: Overcharge detection function; Over-discharge detection function overcurrent detection function short detection function; Temperature detection function balance function communicate function Alarm function; ... - Page 10 350±10A Short protection current Load short Protection condition Short protection ≤300us Detection delay time Charging release Protection release condition 55±3℃ Charge high T protection 50±5℃ Charge high T recover 65±5℃ Discharge high T protection 60±5℃ Discharge high T recover Temperature(T) protection -5±5℃...
-
Page 11: Case Structure
6. CASE STRUCTURE... -
Page 12: Packaging
7. PACKAGING... -
Page 13: Approvals And Certificates
8. APPROVALS AND CERTIFICATES Certificate No.: Certificate No.: Certificate No.: Certificate No.: Guangdong UTL Co., Ltd. Guangdong UTL Co., Ltd. Guangdong UTL Co., Ltd. Guangdong UTL Co., Ltd. Lianding Testing Building, No. 18 Center Road of Yayuan Indust rial Landing Testing Bu lding, No. 18 Center Road of Yayuan Indust r al Lianding Testing Building, No. -
Page 14: Approvals And Certificates
Sunsynk. 10. WARRANTY 10.1. Warrantor Warrantor is Sunsynk Ltd, located at 3-Floor, Wai Yip Industrial Building, 171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong S.A.R. 10.2. Products The following limited warranty terms and conditions (‘Factory Warranty’) apply exclusively to Sunsynk Ltd’s products of the following types (‘Covered Products’):... -
Page 15: Performance Warranty
Covered Product or parts thereof. d) In the event of a defect of products or services supplied by Sunsynk Ltd, Customer’s sole remedy shall be, at Sunsynk Ltd’s cost and expense up to 100% of the cost of the equipment, (a) repair or replacement of defective product at Sunsynk Ltd’s discretion, or... -
Page 16: Product Suitability
In the event Sunsynk Ltd determines that an alleged product or services defect did not exist or, if existed, was excluded from Sunsynk Ltd’s liability by Sunsynk Ltd’s Terms &... -
Page 17: Persons Entitled To Make Warranty Claims
information about the defect in reasonable detail. b) Upon receipt of your Claim Notice Sunsynk Ltd may ask for further information or claim verification from you, receipt of which will be required prior to processing the claim. c) Upon acceptance of your warranty claim, Sunsynk Ltd may require that you send the Covered Product at your own costs to a Sunsynk Ltd warranty claim centre located in the world. -
Page 18: Internet Connectivity
NOT covered by this Factory Warranty. In no event will Sunsynk Ltd be held responsible or liable for any personal injuries resulting from the use of the system, or for any other damages, whether direct, indirect, incidental, or consequential;... - Page 19 Kowloon, Hong Kong. Tel. HK +852 2884 4318 Fax: +852 2884 4816 Tel. UK +44 151 528 9945 Tel. SA +27 1108 39837 sales@globaltech-china.com Audio Training manuals on Apple Pod Cast and Spotify Full training support, manuals and videos on www.sunsynk.com...
