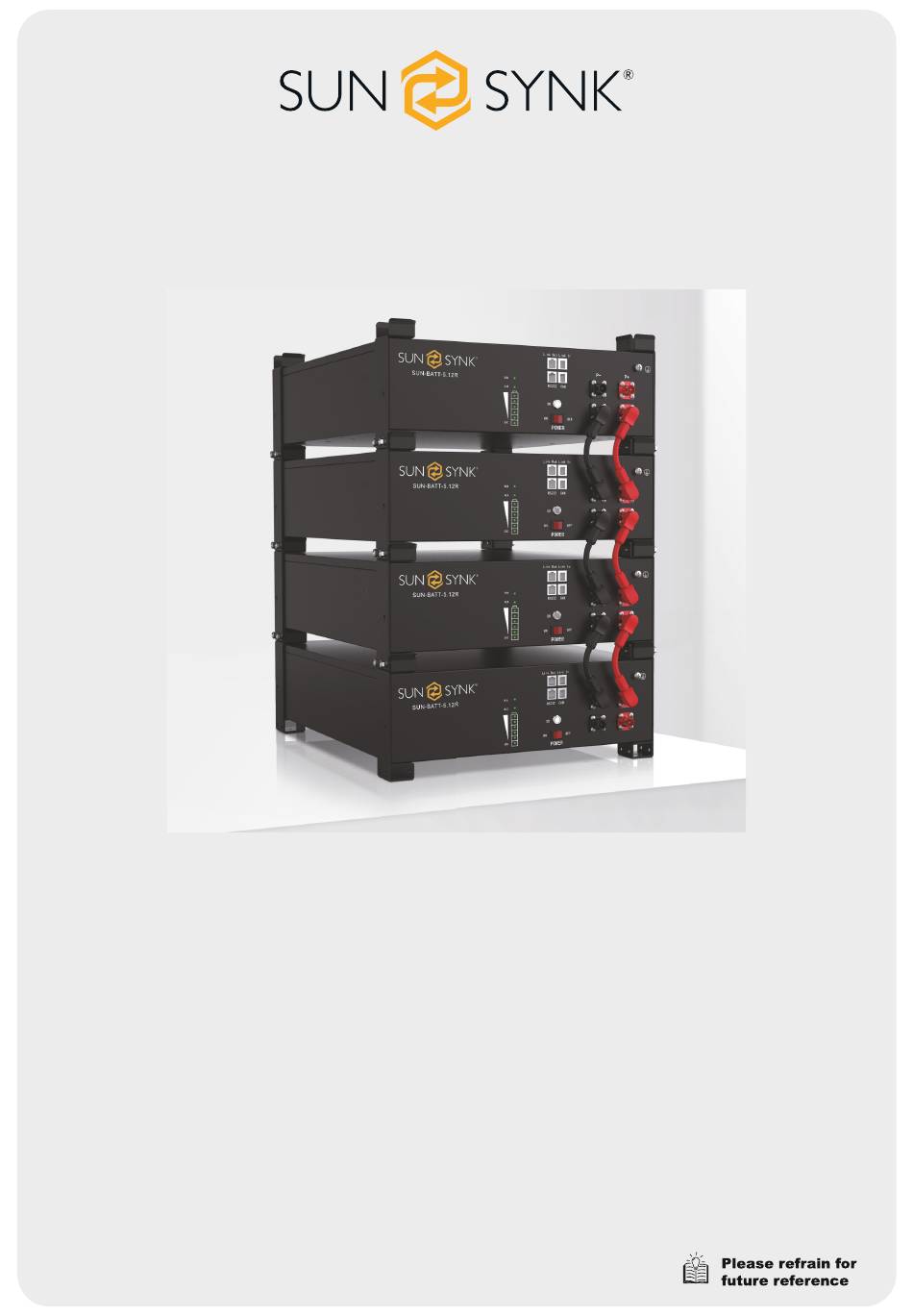

- Page 1 SUN-BATT-5.32R USER MANUAL Rack Mounted Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building. 171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@sunsynk.com v.1 (01/27/23)
-
Page 2: Table Of Contents
Table of Contents TECHNICAL DATA 1. 1.1. Appearance 1.1.1. Rack Mounted SUN-BATT-5.32R 1.1.2. Wall Mounted SUN-BATT-5.32R 1.1.3. Cabinet Mounted SUN-BATT-5.32R 2. PRODUCT OVERVIEW 2.1. Brief Introduction 2.2. Interface Introduction 2.2.1. Switch ON/OFF 2.2.2. LED Indicator Definition 2.2.3. CAN / RS485 Port 2.2.4. RS232 Port 3. INSTALLATION GUIDE 3.1. Checking Before Installation 3.1.1. Checking Outer Packing Materials 3.2. Checking Deliverables 3.2.1. Rack Mounted Accessory Deliverables 3.2.2. Wall Mounted Accessory Deliverables... - Page 3 5. MAINTENANCE 5.1. Recharge Requirements During Normal Storage 5.2. Recharge Requirements When Over Discharged SUN-BATT-5.12R | User Manual...
-
Page 4: Technical Data
6000 Cycles @ 80% DOD / 25ºC / 0.5C, 60% EOL Scalability Max 8 batteries in parallel Standard Compliance PACK: UN38.3, IEC62619, IEC61000, CELL: UN38.3, IEC62619, UL 1642, JET (more Certification available upon request) Ordering and Deliverable Part SUN-BATT-5.32R Battery SUN-BATT-5.32R Power cable Product ordering part SUN-BATT-5.32R Parallel cable SUN-BATT-5.12R | User Manual... -
Page 5: Appearance
1. Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25ºC; 2. Charge/discharge derating occurs when the operating temperature from -10ºC to 5 ºC & 45ºC to 55ºC. 3. Condition apply. Refer to SUN-BATT-5.32R Warranty Letter 1.1. Appearance 1.1.1. Rack Mounted SUN-BATT-5.32R... -
Page 6: Wall Mounted Sun-Batt-5.32R
1.1.2. Wall Mounted SUN-BATT-5.32R 1.1.3. Cabinet Mounted SUN-BATT-5.32R SUN-BATT-5.12R | User Manual... -
Page 7: Product Overview
LED will flash, then battery will operate normally. L1 to L6 shows battery SoC, L7/L8 shows battery status. For multiple SUN-BATT-5.32R in parallel, switch ON rocker switch on all batteries, long press (more than 3 sec- onds) ON/OFF button of MASTER battery, LED will flash, battery system will automatically encode and assign ID to each slave battery, then battery system will operate normally. - Page 8 Battery Level Indicator Status Discriptions Shut down All OFF Standby Flash 1 According to the battery level Indicates Standby The highest capacity Normal Light According to the battery level indicator LED flashes (flash 2),others lighting Charging Full Turn to standby status Light Light Light...
-
Page 9: Can / Rs485 Port
2.2.3. CAN / RS485 Port CAN / RS485 Communication Terminal (RJ45 port), connect to inverter, follow CAN / RS485 protocol. Definition Pin 1, Pin 8 RS485-B ( to PCS, reserved ) Pin 2, Pin 7 RS485-A ( to PCS, reserved ) Pin 3 Pin 4 CANH ( to PCS ) -
Page 10: Installation Guide
3. INSTALLATION GUIDE 3.1. Checking Before Installation 3.1.1. Checking Outer Packing Materials Packing materials and components may be damaged during transportation. Therefore, check the outer pack- ing materials before installing the battery. Checking the surface of packing materials for damage, such as holes and cracks. -
Page 11: Rack Mounted Accessory Deliverables
3.2.1. Rack Mounted Accessory Deliverables Pictures Quantity Description 1PCS Battery 4PCS Support frame 12PCS M4*8 8PCS M6*50 1PCS Manual 1PCS Test report 1PCS Certificate 3.2.2. Wall Mounted Accessory Deliverables Pictures Quantity Description 2PCS Hanging bracket 1PCS Wall bracket 4PCS M8*60 Expansion bolts 2PCS M4*20 8PCS... -
Page 12: Tools
3.3. Tools Tools Knife Measuring tape Socket wrench (10/16mm) Installation Rubber mallet Cross Screwdriver Hammer drill (8mm) ESD gloves Safety goggles Anti-dust respirator Protection Safety shoes 3.4. Installation Requirements 3.4.1. Installation Environment Requirements Install the battery in the indoor environment. ƒ Place battery in secure location away from children and animals. ƒ... -
Page 13: Installation Instructions
3.5. Installation Instructions 3.5.1. Dimensions SUN-BATT-5.12R | User Manual... -
Page 14: Installation Steps (Rack Mounted)
3.5.2. Installation Steps (Rack Mounted) STEP 1 Remove the handle from the battery. STEP 2 Install Support frames at the four corners of the battery. STEP 3 The battery with the support frame is stacked up and down. SUN-BATT-5.12R | User Manual... -
Page 15: Installation Steps (Wall Mounted)
3.5.3. Installation Steps (Wall Mounted) Minimum mounting distance requirement (Wall Mounted): STEP 1 Drill the hole with an 10mm drill bit as follows and fix the wall bracket to the wall. SUN-BATT-5.12R | User Manual... - Page 16 STEP 2 Install the wall hanging bracket. STEP 3 Hang the machine on the wall hanging back plate and tighten it. SUN-BATT-5.12R | User Manual...
-
Page 17: Battery Power And Communication Connec Tions
4. BATTERY POWER AND COMMUNICATION CONNEC TIONS 4.1. Wiring Steps STEP 1 Connect the battery to ground. STEP 2 Connect the battery power line. STEP 3 Connect the communication lines. SUN-BATT-5.12R | User Manual... -
Page 18: Parallel Cascade Connection
4.2. Parallel Cascade Connection 4.2.1. Power Cable Wiring Instructions Each SUN-BATT-5.32R has two pairs of power cable terminals, two P+, and two P-. The connec- tion terminals of each pair have the same function. Single Module In a single module application, any of the terminals of each pair can be used. -
Page 19: Wiring Diagram For Parallel Cascade Connection
4.2.3. Wiring Diagram for Parallel Cascade Connection When multiple batteries are connected in parallel, follow the following wiring mode. SUN-BATT-5.12R | User Manual... - Page 20 5. MAINTENANCE 5.1. Recharge Requirements During Normal Storage Battery should be stored in an environment with temperature range between -10°C ~ +45°C, and maintained regularly according to following table with 0.5C (25A) current till 40% SoC after long storage time. Recharge Conditions When In Storage Storage Environment Relative Humidity of Storage Time...
- Page 21 wered by...
