Summary of Contents for Newco Smart Cup

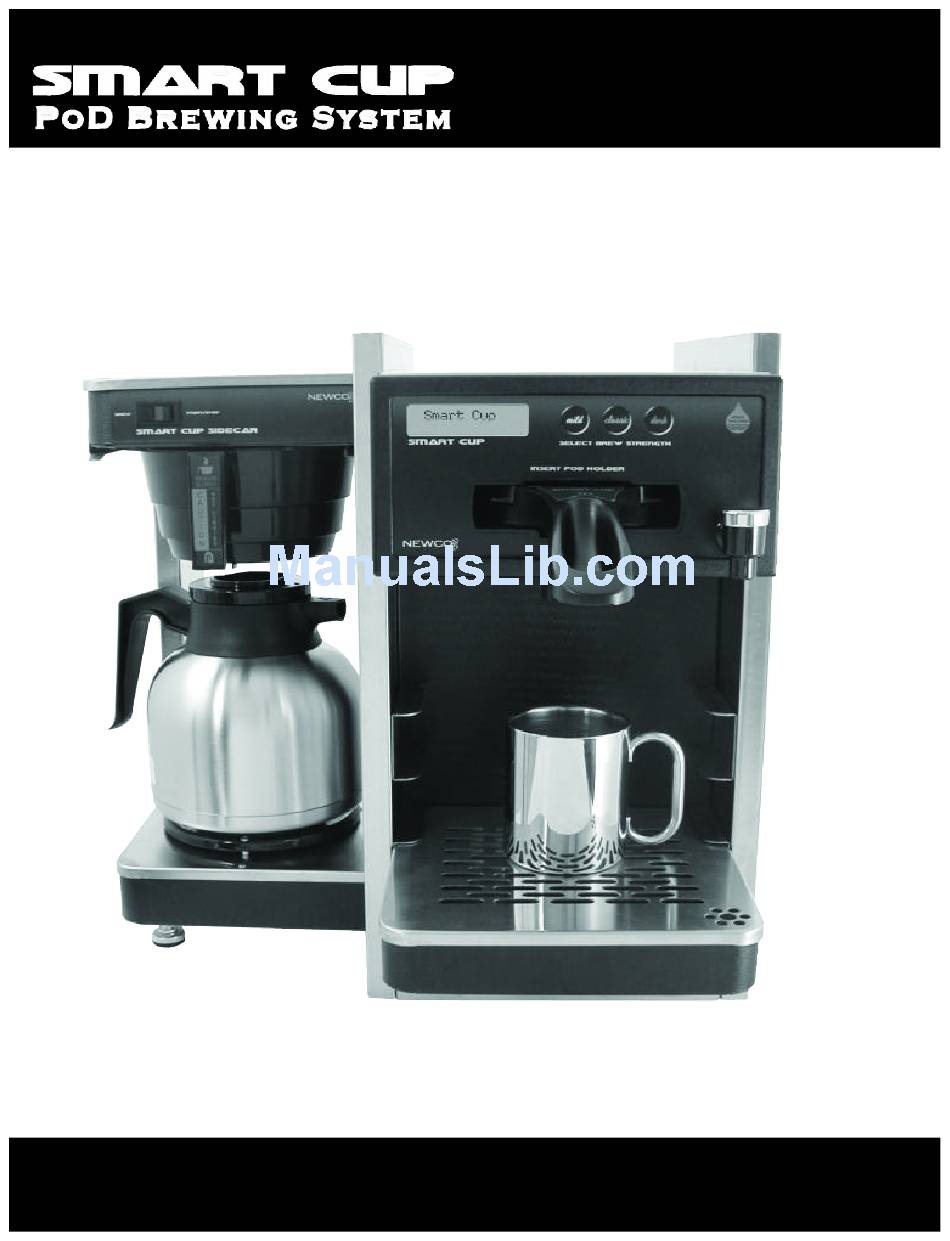

- Page 1 Operating Manual...
- Page 2 Power up your Smart Cup while pressing the corresponding button to reach different program modes. Power switch on back of brewer Power switch on back of brewer Power switch on back of brewer Power switch on back of brewer Power switch on...
- Page 3 Installation and Operation Instructions: SMART CUP Brewing System INSTALLATION INSTRUCTIONS: Flush water line before installing brewer. Brewer should be connected to COLD WATER LINE for best operation. Water pressure should be at least 20 psi up to a maximum of 90 psi and have a minimum flow rate of 1.5 gallons per minute.
-
Page 4: Interpreting The Display
2. Put a cup underneath the cup stand. 3. Insert empty POD Holder. 4. The display will read "Please Select “(Fill) (Drain) (X)" 5. Press the Mild button to fill the heat exchange. When there is a steady stream of water push any button to cancel this function. - Page 5 The functions are: A.) Side Car Brew (Bulk Brew) calibra- tion B.) Coffee POD calibration C.) Tea POD calibration D.) Faucet calibration. E) Smart Cup -Text Editing. 1. Press and hold “Hot Water” button and power up brewer 2.
-
Page 6: Calibration Functions
Calibration Functions: Side Car (Bulk Brew): Put a container underneath brew basket. Push the Classic button (Calibrate). Enter pump speed from 10 through 20 by using the left (Mild) or right (Dark) arrow. Pump speed of 16 is the recommended default. Push the Classic button (Done). At this point, the Side Car will run for 1 minute delivering water into the container placed underneath the brew basket. - Page 7 Coffee Pod Calibration: Coffee POD Holder: Insert the Coffee POD Holder: Press Classic button to calibrate coffee pod holder.~ with a "Coffee POD" in place into the brew chamber. Place a cup or measuring container on the cup stand minimum size of 10 ounces. Push the Classic button (Calibrate). At this point, the Coffee POD Holder will run 45 seconds delivering water into the cup placed on the cup stand.
- Page 8 Tea Pod Calibration: Tea POD Holder: Insert the Tea POD Holder ~ with a "Tea POD" into the brew chamber. Place a cup or measuring container on the cup stand minimum size of 10 ounces. Push the Classic button calibrate tea pod holder Insert the tea pod holder with a tea pod in place into the brew chamber.
- Page 9 (Mild) or right (Dark) arrow. (Maximum Pump Speed: 20 Minimum Pump Speed: 10.) Higher the pump speed the flow rate will increase accordingly. Press the Classic (Done) button and the calibration process is finished for the Faucet. Next prompt will be the Text Editing -Smart Cup. 1. Press “Classic” button to calibrate.
- Page 10 5. When the text is completed, continue to press the “Classic” button until (EXIT) is displayed. Press the “Classic” button one more time to complete the task and exit out of Text Editing. SMART CUP (-) (EDIT) (+) sMART CUP (-) (NEXT) (+) sMART CUP...
- Page 11 To exit out of calibration mode, press the “Hot Water” button. Helpful hints: Have a Cup (-) (EDIT) (+) Change “Smart Cup” to any text you choose. To make a correction press the classic (next) button and scroll through the characters to start over at the beginning.
- Page 12 Side Car Programming: Hold the Side Car start button in and power up the brewer until Temperature is displayed on the LCD screen. Release the start button. To scroll through the different parameters press the Mild button to scroll down or the Dark button to scroll up. There are four different programmable parameters: Side Car Programming Parameters ·...
- Page 13 Volume Setting: Press the Classic (Edit) button. Enter the desired volume by pressing the Dark button to increase the volume setting or press the Mild the Classic (Done) button to "set" the volume and move on to the next prompt. Volume Setting: Maximum 150 ounces Minimum 10 ounces...
- Page 14 POD Holder Programming Hold the Mild button in and power up the brewer until “Insert Pod Holder” is displayed on the LCD screen. Release the Mild button. Insert the pod holder and select the strength button you would like to change. To scroll through the different parameters press the Mild button to scroll down or the Dark button to scroll up.
- Page 15 POD Holder Identifier: Press the Classic (Edit) button. Enter the desired POD Holder description (Coffee or Tea) by pressing the Dark (+) button or Mild (-) button to toggle between Coffee and Tea. Press the Classic (Done) button to "set" the POD Holder description and move on to the next perameter. Temperature Setting: Press the Classic (Edit) button.
- Page 16 Brew Time Setting: Press the Classic (Edit) button. Enter the desired brew time by pressing the Dark (+) button to increase the time setting or press the Mild (-) button to decrease the brew time setting. Press the Classic (Done) button to "set" the brew time and move on to the next parameter. Brew Time Setting: Maximum 4 minutes Minimum based on Volume and Calibration.
- Page 17 Draining the Tank and Heat Exchanger: SMART CUP Brewing System Tank and Heat Exchanger: The water line from the water source must be disconnected, but leave the water line attached to the brewer inlet fitting for draining. Place the line either in a drain or container and proceed with the draining procedure.
- Page 18 The Sales Management System program is a feature that allows the vendor to monitor the product usage. In this case, up to 15 POD Holders can be monitored identifying each POD Holder by name, and count. Also the program will store the Total Number of PODS used, from the 15 different Holders, along with a Master Accumulative Total of PODS.
