Newco AK Series Installation And Operation Manual

Advertisement

Quick Links

N E W C O
INSTALLATION and OPERATION MANUAL
No of
Model
Warmers
AK-1
1
AK-2
2
AK-3
3
AK-LD
N/A
AK-TC
N/A
AK-AP
N/A
AK-D
N/A
E N T E R P R I S E S

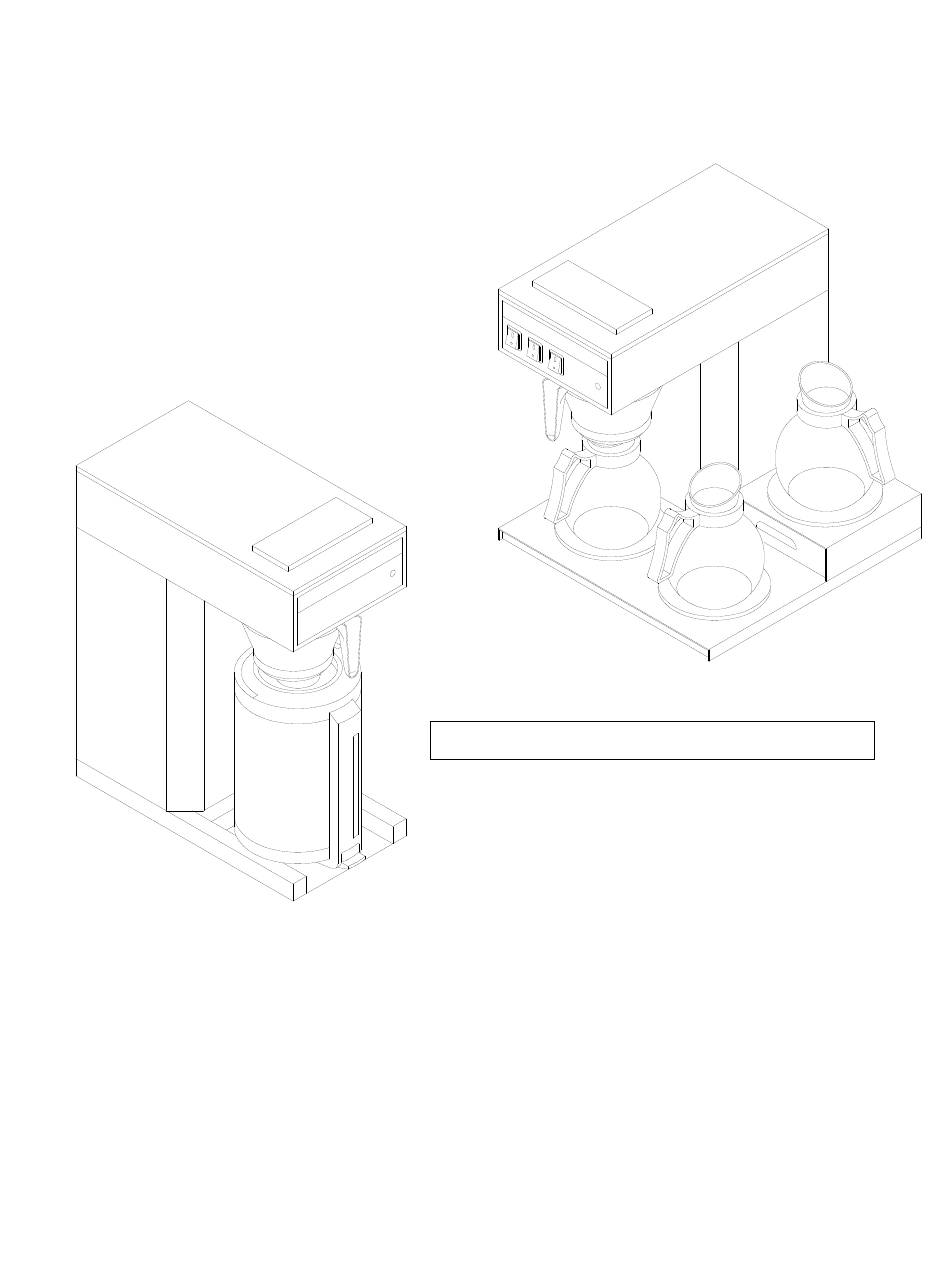

for AK SERIES BREWERS
AK-3AS
AK-LD
BREWER SPECIFICATIONS
Width
Length
8-1/2"
16-3/8"
8-1/2"
16-3/8"
15-1/2"
16-3/8"
8-1/2"
16-3/8"
8-1/2"
16-3/8"
8-1/2"
16-3/8"
8-1/2"
17-3/8"
* Height with ABS base shown for Airpot/Dispenser models
** Other Wattages/Voltages available as special order
Note: Decanters and Dispensers not Included
US 120V
Height*
Amps**
16-15/16
12.5
18-9/16
13.3
16-15/16
14.2
21-3/16
14.6
17-5/8
14.6
22-15/16
14.6
27-3/8
14.6
Man Pt No 110402 Rev 20170214
Canada 120V
Amps**
11.2
10.8
11.7
11.7
11.7
11.7
11.7
ISS 0599

Advertisement

loading
Need help?

Need help?

Do you have a question about the AK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Newco AK Series

  • Page 1 Man Pt No 110402 Rev 20170214 ISS 0599 N E W C O E N T E R P R I S E S INSTALLATION and OPERATION MANUAL for AK SERIES BREWERS AK-3AS AK-LD Note: Decanters and Dispensers not Included BREWER SPECIFICATIONS...
  • Page 2: Coffee Preparation Procedures

    INSTALLATION / SETUP INSTRUCTIONS WARNING: - Read and follow installation / setup instructions before plugging or wiring in machine to electrical circuit. Warranty will be void if machine is connected to any voltage other than that specified on the name plate. FILL BREWER TANK WITH WATER BEFORE CONNECTING TO POWER SUPPLY ! 1) Place the decanter under brew basket, raise top evaporation cover and pour three decanters of water through the top pour-in screen.
  • Page 3: Warranty

    LIMITED, AT NEWCO’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Newco be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost...
  • Page 4 AK POUR OVER BREWER - REPLACEMENT PARTS LIST Electrical Components Tank and Plumbing Components 101419 Thermostat Assembly, Regulating 101842 Tank Assy, 1400 W 100043 Knob, Thermostat, Regulating 101857 Tank Assy, 1750 W 100174 Thermostat, Hi-Limit 705199 Lid Assy, 1400 W Tank 100143 Bracket, Hi-Limit 705399...
  • Page 5: Wiring Diagrams

    WIRING DIAGRAMS AK WARMER MODELS - WITH AUTO WARMER SHUTOFF B K /W H T A N K H E A T IN G H I-L IM IT E L E M E N T T H E R M O S T A T Y L / B K /W H V L /...
