Newco FKP-4 Manual

Single serving automatic pod machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

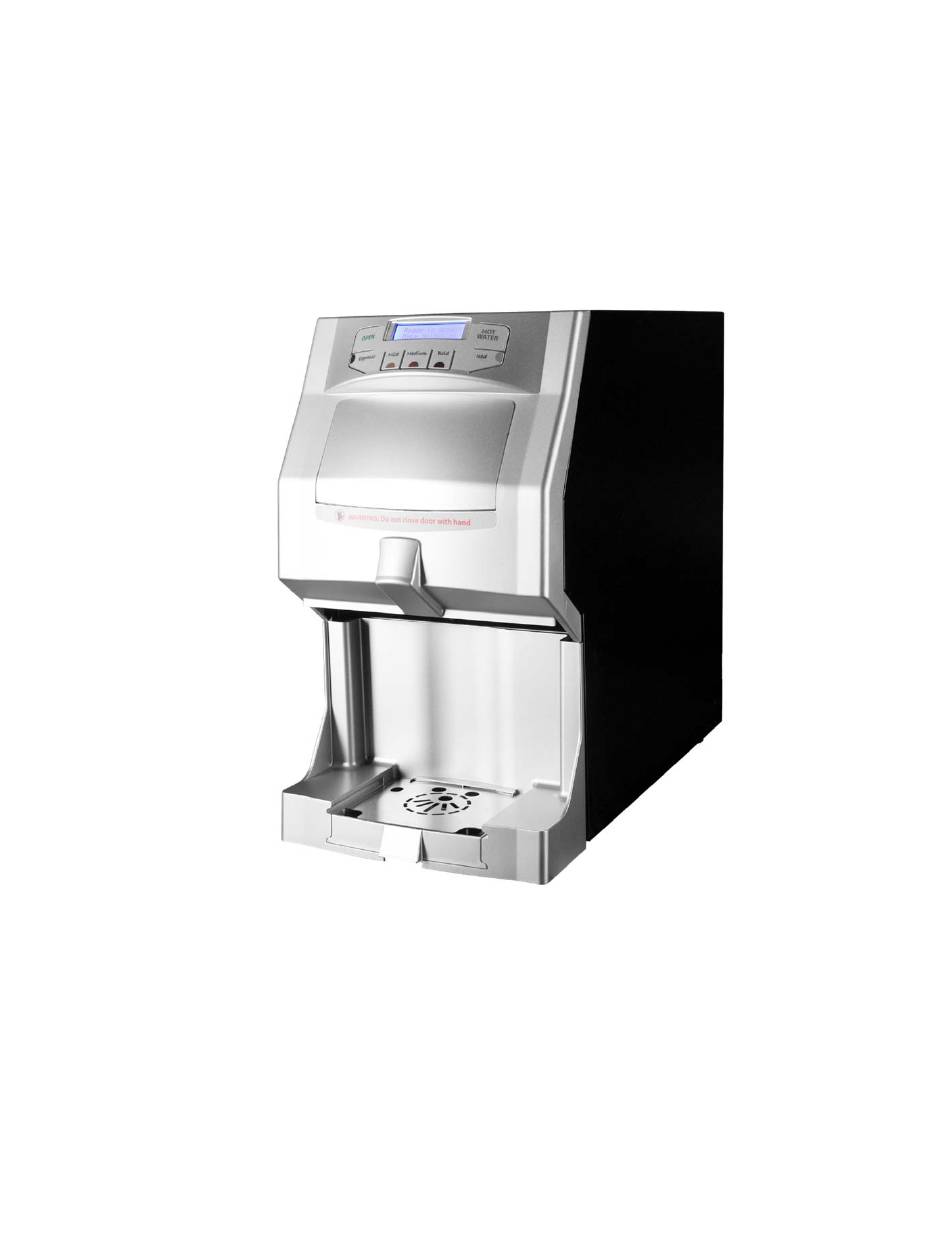

SINGLE SERVING AUTOMATIC POD MACHINE




LARGE POD WASTE TRAY / THRU COUNTER OPTION
•

NEWCO ENTERPRISES INC,
3650 NEW TOWN BLVD
SAINT CHARLES, MO 63301
FAX 1-636-925-0029
Features/ Specifications
AUTOMATIC POD REMOVAL
•
FLOWMETER
•
20 OZ TRAVEL MUG
•
ADJUSTABLE DRINK STRENGTH
•
ADJUSTABLE DRINK VOLUME
•
FKP-4
1-800-325-7867
1
PN782163 REV 20180814

Advertisement

Table of Contents
loading

Related Manuals for Newco FKP-4

Summary of Contents for Newco FKP-4

  • Page 1 PN782163 REV 20180814   SINGLE SERVING AUTOMATIC POD MACHINE FKP-4 NEWCO ENTERPRISES INC, 3650 NEW TOWN BLVD SAINT CHARLES, MO 63301 1-800-325-7867 FAX 1-636-925-0029                                  Features/ Specifications     AUTOMATIC POD REMOVAL • FLOWMETER • 20 OZ TRAVEL MUG •...
  • Page 2 LEFT BLANK INTENTIONALLY  ...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS                 SPECIFICATIONS................... 4     NEWCO PRODUCT WARRANTY ..............5     MACHINE SET-UP..................6     MACHINE OPERATION.................. 7     MACHINE PROGRAMMING................8     DRAINING THE HOT WATER TANK ............12  ...

  • Page 4: Specifications

    SPECIFICATIONS   TANK WATTAGES US 1700W 120V- CANADA 1400W 120V- INTERNATIONAL 1700W 220V   TANK CAPACITY-1 US GALLON DRIP TRAY CAPACITY 8 OUNCES POD WASTE TRAY CAPACITY 40 PODS   USE WASTE TRAY PN 780306 FOR THRU-COUNTER USE   UP TO 20 OZ CUP SIZE  ...

  • Page 5: Newco Product Warranty

    OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Newco be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 6: Machine Set-Up

    MACHINE SET-UP       NOTE: The FRESH CUP machine weighs approximately 35 LBS. Use CAUTION when unpacking LIFT MACHINE FROM MACHINE BOTTOM ONLY. DO NOT MOVE and lifting machine. MACHINE UNLESS THE HOT WATER TANK IS DRAINED AND EMPTY.  ...

  • Page 7: Machine Operation

        MACHINE OPERATION                 PUSH & HOLD FOR HOT DRAWER OPEN   WATER DISPENSE WHEN BUTTON BREWER MESSAGE DISPLAY DRAWER IS CLOSED (ALSO PROGRAMMABLE)                  ...

  • Page 8: Machine Programming

    MACHINE PROGRAMMING       THESE MACHINES ARE EQUIPPED WITH A FLOWMETER- Please run your Fresh Cup pod brewer a few times. If the volume dispensed is comparable to the amount expected from your Button Settings (which are set in the programming menu as described BELOW) and consistent and the pulsing is acting as expected you are done.
  • Page 9 MACHINE PROGRAMMING CONT’D     Set Temperature : In this entry the user may set the tank temperature in the range of 170 to 205 degrees Fahrenheit with the default at 200 degrees F. As with most of the entries, button A and button B (see Fig 1) will change the set point, incrementing or decrementing by one.
  • Page 10 MACHINE PROGRAMMING CONT’D       Flowmeter Adjustment This entry displays the value used to represent the amount of liquid for one tick of the flow meter count. Each tick adjusts the value approximately 2/10 of an ounce. While in this entry, pressing the A key will decrement and the B key will increment this value.
  • Page 11 MACHINE PROGRAMMING CONT’D Select Water Filter : This entry allows the user to select the filter size for the filter used on the inlet for the water. Choices include OFF, 500 GAL UP TO 3000 GAL. These set the counter for the filter warning.

  • Page 12: Draining The Hot Water Tank

    DRAINING THE HOT WATER TANK     THE DRAIN TUBE IS CLIPPED TO THE TANK PLATE IN FRONT OF THE TANK. THE HOT WATER TANK CAN BE DRAINED FROM THE FRONT OF THE MACHINE – UNPLUG MACHINE FROM POWER SOURCE. REMOVE POD WASTE TRAY. CAUTION-UNLESS THE TANK IS LEFT TO COOL THE WATER IS EXTREMELY HOT AND CAN CUASE HARMFUL BURNS.

  • Page 13: Side Panel Removal

    SIDE PANEL REMOVAL         3. SLIDE PANEL 1. LOOSEN (2) TO THE SCREWS THEN REAR OF REMOVE COVER PANEL MACHINE             2. REMOVE (2) SCREWS FROM REAR OF SIDE PANEL      ...

  • Page 14: Tank Removal & Access Areas

    TANK REMOVAL & ACCESS AREAS         REMOVE (2) 8-32 NUTS TO PREPARE TANK FOR REMOVAL (TWO ON TOP OF TANK)                         LOOSEN SCREWS TO REMOVE TOP & BACK COVERS  ...

  • Page 15: Pod Brewing Mechanism

    POD BREWING MECHANISM 780585   ITEM # PART NUMBER DESCRIPTION QTY/EA 780230 BREW MECH MOTOR 780231 DELTROL SOLENOID 780587 LOWER BREW CHAMBER UNIVERSAL 2 773246 U-CUP SEAL RING 780539 CHAMBR UP,I/H,BR,56&61MM 780554 EJECT SLOPE CAM ASS’Y 780588 MOLDED BUMP DISC PAD 780546 KICKER SLIDE WASHER 780536...

  • Page 16: Tank Ass'y

    TANK ASS’Y 780619 ITEM # PART NUMBER DESCRIPTION QTY/EA 110958 RELAY, 12 VDC SPST 30A 111593 HI-LIMIT THERMOSTAT 109937 GEAR PUMP ASS’Y 781772 PUMP ASS’Y W/ELBOW (HOT WATER) 780253 TANK ONLY 773056 AIR PUMP, POD 500396 LIQUID LEVEL PROBE& BUSHING 151677 DUAL TEMP THERM PROBE 100149...

  • Page 17: Electrical Components

                                ITEM # NEWCO PN DESCRIPTION QTY/EA 782187 CONTROL BOARD & BRACKET 110626 SWITCH, DPST, ON/OFF 102383 SOLENOID FILL VALVE 105115 TRANSFORMER 120VAC-24VAC 780601 DISPLAY BOARD  ...
  • Page 18 ERROR MESSAGES             Message - "CONTACT/SERVICE” LWR/UPR THERM THERMISTOR IS OPEN OR SHORTED- REPLACE PN 151677     Message - "CONTACT/SERVICE” OVERHEAT RAPID TEMPERATURE RISE-HEATER ON WITH LOW WATER LEVEL-CHECK FILL VALVE OR WATER SUPPLY LINE  ...

  • Page 19: Wiring Diagram

    WIRING DIAGRAM  ...
  • Page 20 LEFT BLANK INTENTIONALLY  ...
  • Page 21 LEFT BLANK INTENTIONALLY  ...
