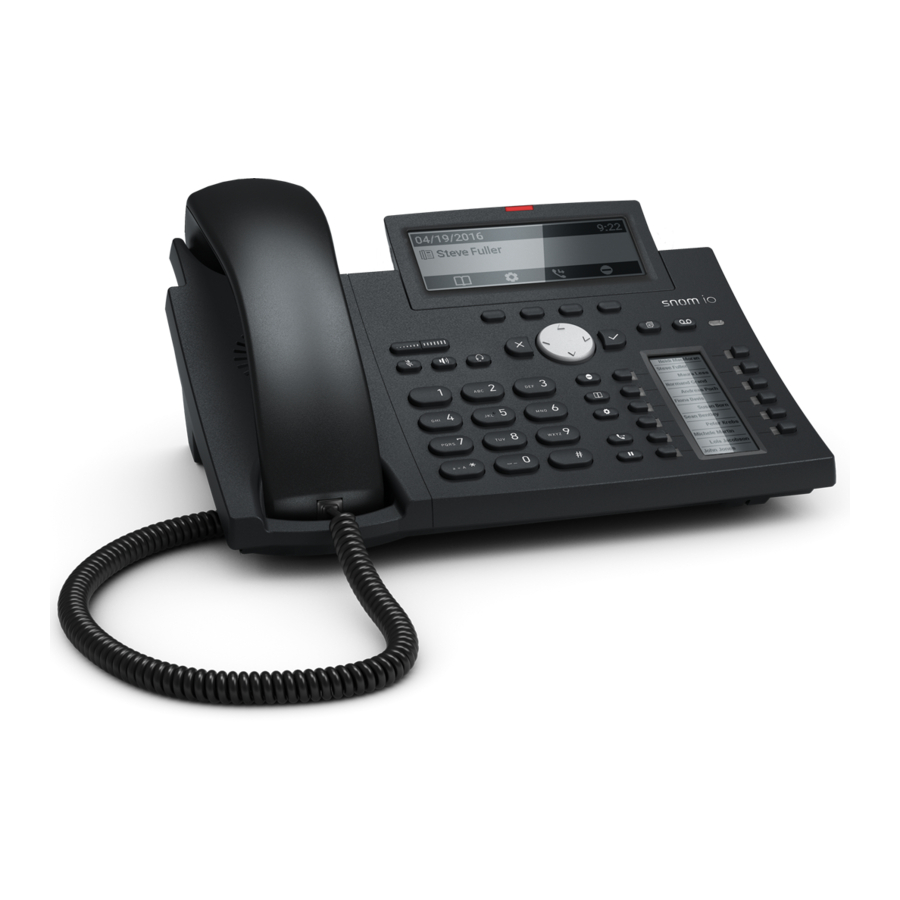

Snom D345 - VOIP Phone Quick Installation Guide

Delivery content

Not included: power adapter

Attaching the Footstand

for desktop placement

for wall mounting

Detaching the Footstand

Wall Mounting

Connecting

Important Information

Please read the instructions on safety and disposal and on how to set up and use the device before using it and also give them to other users to read or inform those users of their contents. Save this document and do not give the device to third parties without it.

Safety Instructions

Follow the instructions in the manual and other applicable documentation of the device.

The product included (ITE) in this manual is to be connected only to PoE networks without routing to the outside plant.

• If the phone is not supplied with power via an Ethernet cable, use only a power adapter ex- pressly recommended by Snom Technology. Other power supplies may damage or destroy the phone, affect its behavior, or induce noise.
• Avoid placing the cables where people may trip over them or where they may be exposed to mechanical pressure as this may damage them.
• This device is for indoor use only! Do not install outdoors - NOT FOR OUTDOOR USE!
• Do not install the device in rooms with high humidity (for example, in bathrooms, laundry rooms, damp basements). Do not immerse the device in water and do not spill or pour liquids of any kind onto or into the device.
• Do not install the device in surroundings at risk for explosions (paint shops, for example). Do not use the device if you smell gas or other potentially explosive fumes.
• Do not use the device during thunderstorms. Lightning striking the power grid may cause electric shocks.

The handset contains a magnet, and its earpiece may attract small dangerous objects such as needles or pins. Please ensure before each use that no such objects are present.

SELV (Safety Extra Low Voltage) Compliance

Safety status of Input/Output connections comply with SELV requirements.

To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and PSTN ports contain TNV circuits. Some LAN and PSTN ports both use RJ-45 (8P8C) connectors. Use caution when connecting cables.

Standards conformance

This device complies with the essential health, safety, and environmental requirements of all relevant European directives.

This phone is FCC Class A verified and meets US health, safety, and environmental standards.
This Class A digital apparatus complies with Canadian requirements: CAN ICES-3 (A)/NMB-3(A).

Unauthorized opening, changing, or modifying the device will cause the warranty to lapse and may also result in the loss of CE and ICES conformity and the FCC verification. In case of malfunction contact authorized service personnel, your seller, or Snom.

Safety: IEC 60950
Power over Ethernet: IEEE 802.3af, Class 3
Power: PoE or, if PoE not available, one of the power adapters available separately:

• Snom A6, Phihong model PSM10R-050
  EU Snom PN 00004325
  US: Snom PN 00004326
• Ten Pao, model S018BAM0500200, Snom PN 00004393 (EU)

Ethernet: 2 x IEEE 802.3 / 1 Gigabit Ethernet switch
Connectors: 1 x LAN, 1 x PC: RJ45; 2 x 4P4C (handset, optional wired headset); 1 x USB 2.0 type A

Disposal of the device

This device is subject to European Directive 2012/19/EU and may not be disposed of with general household garbage.

If you do not know where you may dispose of the device at the end of its lifespan, contact your municipality, your local waste management provider, or your seller.

Cleaning

To clean the device, use an anti-static cloth. Please avoid cleaning liquids as they might damage the surface or internal electronics of the device.

Initializing and registering the phone

Please note: You will need the registration information received from your Internet service provider or your network administrator - normally the phone or extension number, the password, and the registrar.

After you have set up the phone and connected it to the network as shown in figure E, the phone begins to initialize. Normally the initialization is completely automatic, using DHCP. If your network does not support DHCP, you must obtain the IP address, netmask, IP gateway, and DNS server from your Internet service provider or your network administrator and enter them manually when you are asked to do so on the display.

Watch the display and, when asked to, make selections with and save with .

1. Language. The default is English.
2. Time zone
3. Dial tone
4. Enter the account number. Save with .
5. Enter the registrar. Save with . The display now shows the idle screen:


For further information please refer to our web page, http://wiki.snom.com/D345.

Snom, the names of Snom products, and Snom logos are trademarks owned by Snom Technology GmbH. All other product names and names of enterprises are the property of their respective owners.

Texts, images, and illustrations and their arrangement in this document are subject to the protection of copyrights and other legal rights worldwide.

Our firmware includes some source code that may be used and modified by anyone and everyone under the GNU Public License (GPL), provided they, in turn, make it available to everyone else with the same licensing agreement. Please go to http://www.snom.com/en/support/download/gplopen-source/ for the original GPL license and the source code of components licensed under GPL and used in Snom products.

© 2018 Snom Technology GmbH. All Rights Reserved.
