SKU# 100 749 0574
Model# FRN-801960-S2-1
USE AND CARE GUIDE

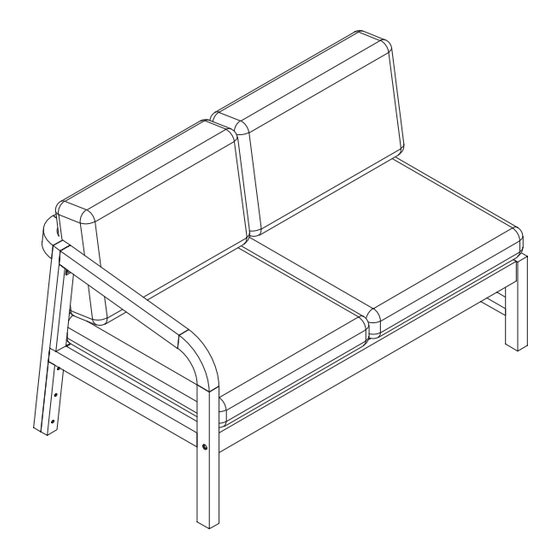

ORLEANS SECTIONAL - RIGHT AND LEFT BENCH
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
these benches.
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Related Manuals for HAMPTON BAY ORLEANS FRN-801960-S2-1
Summary of Contents for HAMPTON BAY ORLEANS FRN-801960-S2-1
- Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU these benches. quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
The frame is warranted to be free of manufacturing defects for two years from the purchase date. If the frame of your furniture fails (ie. broken frame or weld) within 2 years of ownership, Hampton Bay will repair, provide replacement parts, or replace the product at our 2 years warranty only. -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware Included lists. If any part is missing or damaged, do not attempt to assemble the product, and return it to the place of purchase. Assembly requires two people. -
Page 4: Package Contents
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Backrest Frame R Right Arm Left Leg Seat Frame Seat Cushion Back Cushion Back Frame L Left Arm Right Leg... - Page 5 Right Bench Assembly Attaching Right Arm and Left Leg to Seat Frame Attach the Right Arm (E) and Left Leg (F) to the Seat Frame (G) by using the Screw M7x80 (EE), Screw M7x45 (LL), then use the Allen Key (CC) to secure. Do not fully tighten all the bolts in this step.
- Page 6 Right Bench Assembly (continued) Attaching the Seat Frame into the Backrest Frame R Attach the Seat Frame (G) to the Backrest Frame R (D), by using the Bolt M8x40 (KK), Nut M8 (JJ) and Allen Key (CC), then use the Allen key (CC) to secure. Fully tighten all the bolts in this Right Bench.
- Page 7 Left Bench Assembly Attaching Left Arm and Right Leg to Seat Frame Attach the Left Arm (K) and the Right Leg (L) to the Seat Frame (G) by using the Screw M7x80 (EE), Screw M7x45 (LL), then use the Allen Key (CC) to secure. Do not fully tighten all the bolts in this step.
- Page 8 Left Bench Assembly (continued) Attaching the Seat Frame into the Backrest Frame L Attach the Seat Frame (G) into the Backrest Frame L (J), by using the Bolt M8x40 (KK), Nut M8 (JJ) and Allen Key (CC), then use the Allen Key (CC) to secure. Fully tighten all the bolts.
-
Page 9: Assembly
Assembly (continued) Connecting the Right Bench and Left Bench to the Corner (Optional) sectional set, you can use 4 straps (1) to connect the right bench and left bench to the corner bench. (Drawing example below) HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance. -
Page 10: Care And Cleaning
Care and Cleaning Always make certain to cover your outdoor wood furniture with waterproof covers when you are not using it. Using covers will protect your furniture from all weather elements and prolong the life of the wood furniture. Do not use plastic covers to protect your furniture as this may cause mold to grow on your furniture. - Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory right bench ID # HUC39616...
