Item # 100 766 0435
Model # FRN-313982
USE AND CARE GUIDE

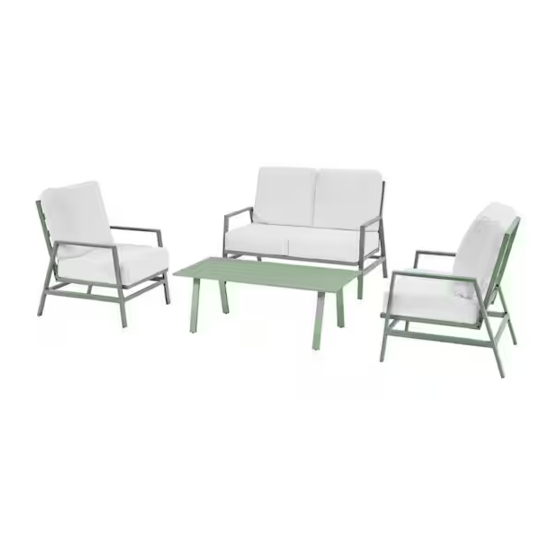

SUNNYMEAD 4 PIECE CHAT SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
.
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY SUNNYMEAD FRN-313982
Summary of Contents for HAMPTON BAY SUNNYMEAD FRN-313982

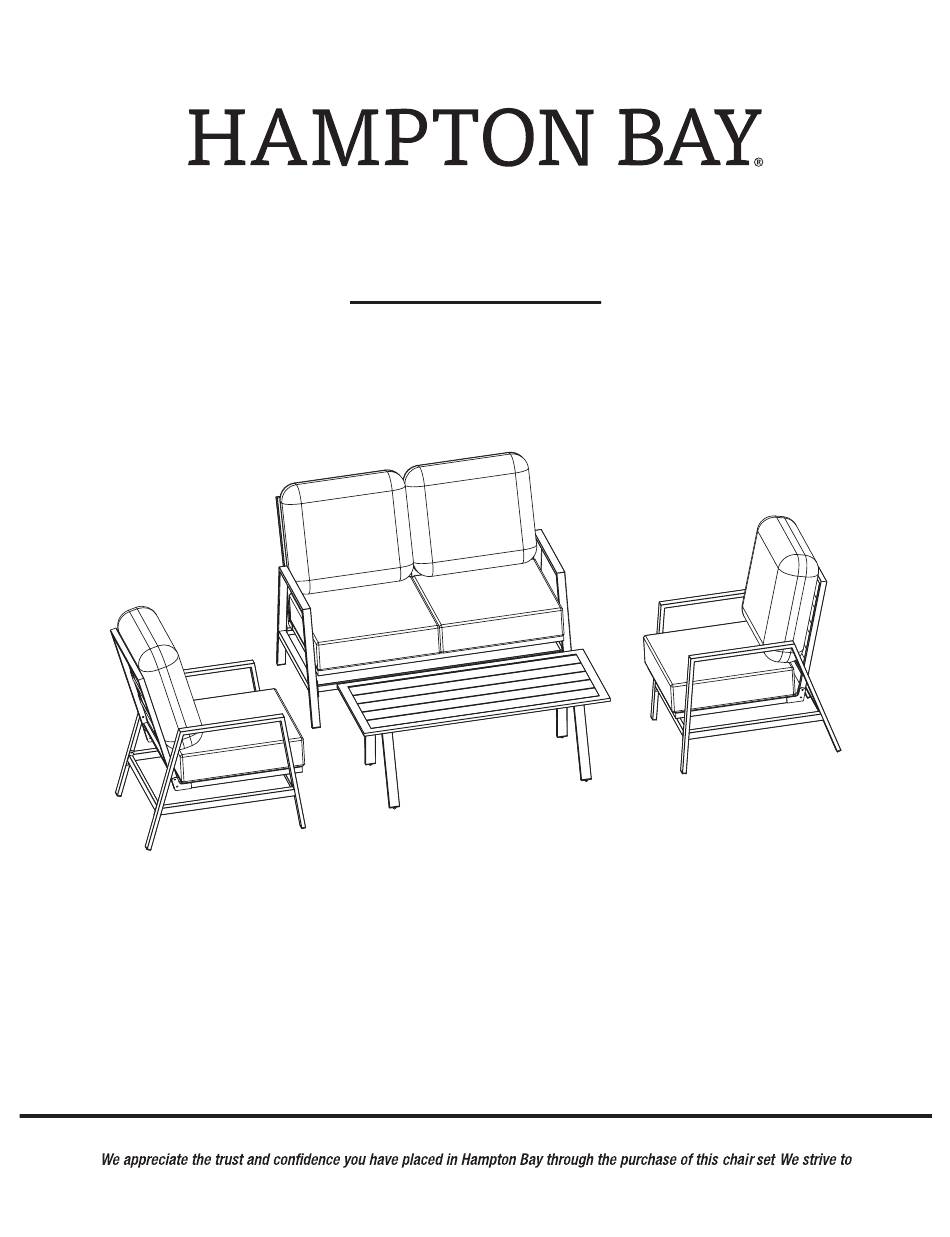

- Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
The frame is warranted to be free of manufacturing defects for two years from the purchase date. If the frame of your furniture fails (ie. broken frame or weld) within two years of ownership, Hampton Bay will repair, provide replacement parts, or replace the product at... -
Page 3: Coffee Table Pre-Assembly
Coffee Table Pre-assembly PLANNING ASSEMBLY Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware included lists. If any part is missing or damaged, do not attempt to assemble product, and return it to the place of purchase. Installation requires two people. -
Page 4: Coffe Table Assembly
Coffee Table Assembly Attaching the Legs to the Table Top Place the table top (K) upside down on a soft, clean and level surface. Insert the legs (L) into the table top (K), by using M6 x 20 mm bolts (AA), small washers (DD), and hex wrench (GG). Fully tighten all the bolts. -
Page 5: Chair Pre-Assembly
Chair Pre-assembly PLANNING INSTALLATION Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware included lists. If any part is missing or damaged, do not attempt to assemble product, and return it to the place of purchase. Installation requires two people. - Page 6 Chair Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Right Leg Left Leg Connecting Tube Seat Back Seat Cushion Back Cushion...
-
Page 7: Chair Assembly
Chair Assembly Attaching the Chair Legs Place the right leg (A), left leg (B), and connecting ube (C) on a soft, clean and level surface. Attach the connecting tube (C) to the right leg (A) and left leg (B) using M6 x 20 mm bolts (AA), small washers (DD), and hex wrench (GG). - Page 8 Chair Assembly (continued) Attaching the Legs back from step 2 into the frames from step 1. Attach the Back (E) and Seat (D) to the Legs (A & B), by using M8 x 35 mm bolts (CC), Larger Washers (EE), and Larger Hex Wrench (II).
-
Page 9: Loveseat Pre-Assembly
Loveseat Pre-assembly PLANNING INSTALLATION Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware included list. If any part is missing or damaged, do not attempt to assemble product, and return it to the place or purchase. Installation requires two people. - Page 10 Loveseat Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Right Leg Left Leg Support Tube Seat Back Seat Cushion Back Cushion...
-
Page 11: Loveseat Assembly
Loveseat Assembly Attaching the Loveseat Legs Place the right leg (A), left leg (B), and support tube (F) on a soft, clean and level surface. Attach the support tube (F) to the chair right leg (A) and left leg (B) by using M6 x 20 mm bolts (AA), small washer (DD), and hex wrench (GG) Do not overtighten the bolts. - Page 12 Loveseat Assembly (continued) Attaching the Legs Insert the nsihed loveset seat and back from step 2 into the leg frames on step 1. Attach the back (H) and seat (G) to the legs (A & B), by using M8 x 35 mm bolts (CC), larger washers (EE), and larger hex wrench (II) Fully tighten all the bolts on this loveseat.
-
Page 13: Care And Cleaning
Maintenance When cleaning the cushions, use a mild soap and water mixture (DO NOT USE BLEACH) and gently rub the surface of the fabric and rinse with water. Allow time for cushions to dry before use. Always cover your cushions with waterproof covers when you are not using it to prolong the life of the cushions. - Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory chair ID # FRN-313982-C...
