SKU# 100 749 0590
Model# FRN-801960-S-1
USE AND CARE GUIDE

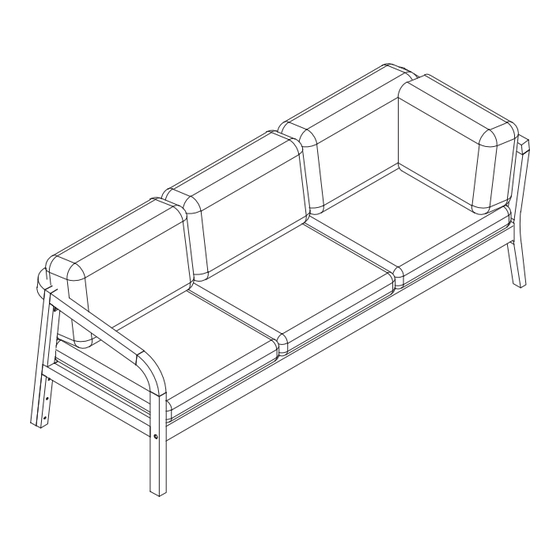

ORLEANS SECTIONAL-RIGHT BENCH
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Related Manuals for HAMPTON BAY ORLEANS FRN-801960-S-1
Summary of Contents for HAMPTON BAY ORLEANS FRN-801960-S-1

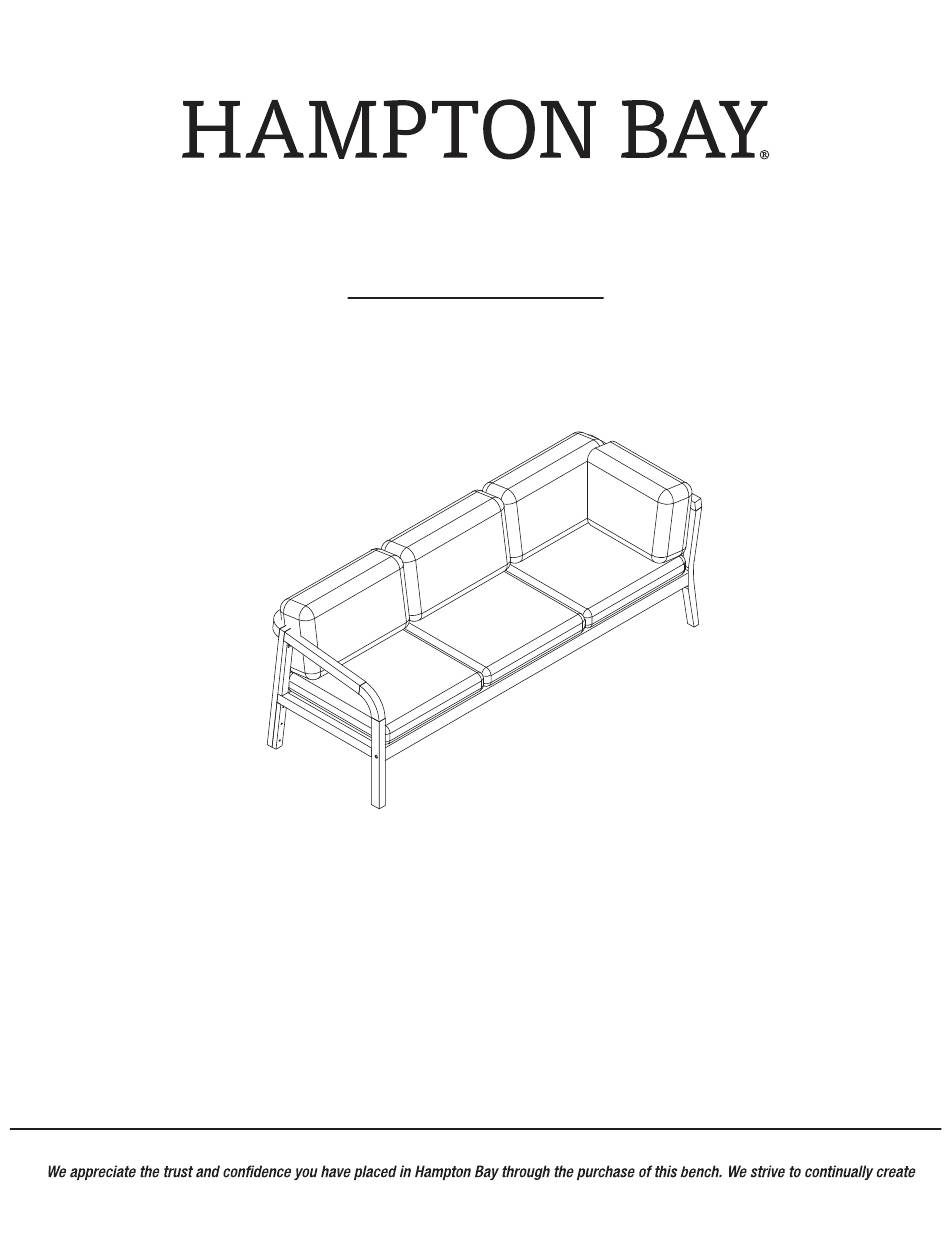

- Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
The frame is warranted to be free of manufacturing defects for two years from the purchase date. If the frame of your furniture fails (ie. broken frame or weld) within 2 years of ownership, Hampton Bay will repair, provide replacement parts, or replace the product at our 2 years warranty only. -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware Included lists. If any part is missing or damaged, do not attempt to assemble the product, and return it to the place of purchase. Assembly requires two people. -
Page 4: Package Contents
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Backrest Frame 1 Backrest Frame 2 Right Arm Seat Middle Leg Seat Cushion Back Cushion Corner Back Cushion... -
Page 5: Assembly
Assembly Attaching Backrest Frame Attach the Backrest Frame 1 (D) to the Backrest Frame 2 (E) by using the Bolt M8x50 (HH), the Nut M8 (JJ), and Allen key (CC). Do not fully tighten all the botls in this step. Attaching Right Arm to the Backrest Frame Put in the Right Arm (F) and Seat (G) into the assembled... - Page 6 Assembly (continued) Attaching Right Arm Attach the Right Arm (F) and Seat (G) to the assembled backrest frame (D&E) by using the Screw M7x110 (DD), Screw M7x80 (EE), Bolt M8x50 (HH), Nut M8 (JJ) and Allen key (CC), then use the Allen key (CC) to secure. Do not fully tighten all the bolts in this step.
- Page 7 Assembly (continued) Completing the Assembly Place the Cushion (I), Back Cushion (J), Corner Back Cushion (K) on the Bench. Place the bench feet if the four legs are not level. The chair is ready to use now. Connecting the Right Bench to the Left Bench (optional) sectional set, you can use 2 straps (1) to connect the Right Bench to the Left Bench (example shown below).
-
Page 8: Care And Cleaning
Care and Cleaning Always make certain to cover your outdoor wood furniture with waterproof covers when you are not using it. Using covers will protect your furniture from all weather elements and prolong the life of the wood furniture. Do not use plastic covers to protect your furniture as this may cause mold to grow on your furniture. - Page 9 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory right bench ID # HUC39575...
