SKU# 100 748 9531
Model# FRN-801820-CL
USE AND CARE GUIDE

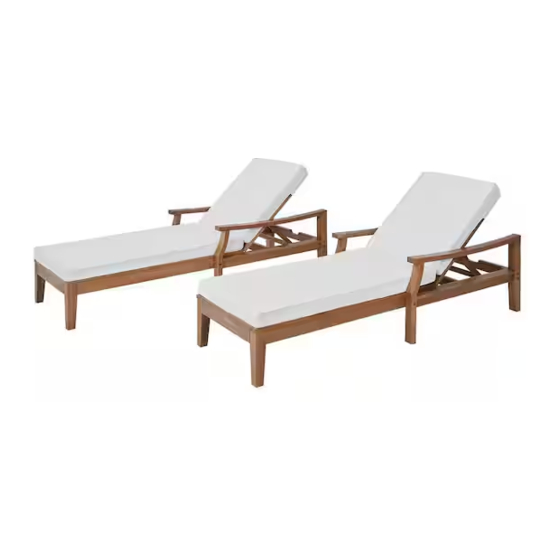

WOODFORD CHAISE LOUNGE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
lounge
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY WOODFORD FRN-801820-CL
Summary of Contents for HAMPTON BAY WOODFORD FRN-801820-CL
- Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU lounge quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
The frame is warranted to be free of manufacturing defects for two years from the purchase date. If the frame of your furniture fails (ie. broken frame or weld) within 2 years of ownership, Hampton Bay will repair, provide replacement parts, or replace the product at our warranty only. -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware Included lists. If any part is missing or damaged, do not attempt to assemble the product, and return it to the place of purchase. Assembly requires two people. -
Page 4: Package Contents
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Bed Frame Cushion Mid Leg... -
Page 5: Assembly
Assembly Attaching the Legs to the Bed Frame Attach the Legs (C) to the Bed Frame (A) by using Nut (AA) and Washer (BB), then use the Wrench (GG) to secure. Attaching the Arms to the Bed Frame Attach the Arm (B) to the Bed Frame (A), by using the Bolt M8x75 (CC), Thicker Washer (DD), Nut M8 (II) and Screw M7x110 (EE), then use the Allen Key (HH) to secure. - Page 6 Assembly (continued) Completing the Assembly Use Cap (KK) to cover all exposed bolts. Cushion (D) on the top surface of Bed Frame. Place the stop bar in the groove to lock the tilt. This chaise is ready to use now.
-
Page 7: Care And Cleaning
Care and Cleaning Always make certain to cover your outdoor wood furniture with waterproof covers when you are not using it. Using covers will protect your furniture from all weather elements and prolong the life of the wood furniture. Do not use plastic covers to protect your furniture as this may cause mold to grow on your furniture. - Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory chaise lounge ID # HUC26212...
