Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance
with applicable standards.
For comprehensive protection of a luminaire installation against lightning
and electrical surges, it is essential to cover mains supply and data input
lines at the distribution board level, by using respective primary (Type 1)
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation. Also, disconnect luminaires
before operating high-power devices such as, for example, electrical
arc welders.

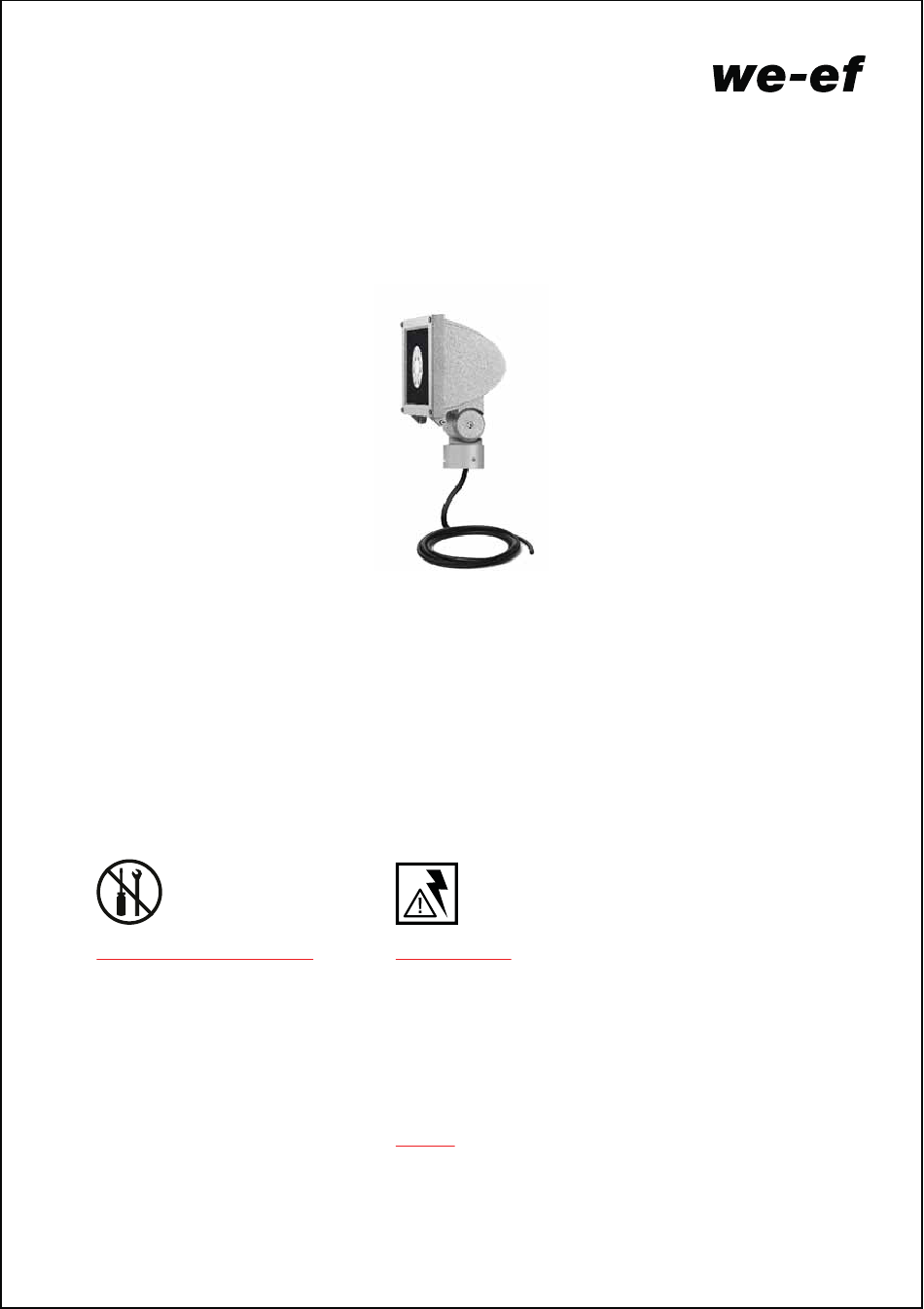

WE-EF LIGHTING
Installation and Maintenance
Instructions

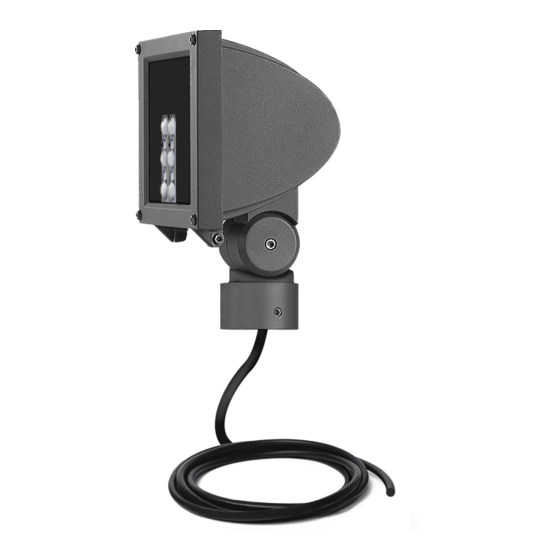

Floodlight
FLB141 #1 LED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for WE-EF FLB141 #1 LED
Summary of Contents for WE-EF FLB141 #1 LED
- Page 1 WE-EF LIGHTING Installation and Maintenance Instructions Floodlight FLB141 #1 LED Surge Protection Do not open during installation This product is factory-sealed. This product features built-in surge protection circuitry in compliance Refer to the instructions contained in this with applicable standards.
- Page 2 Floodlight FLB141 #1 IP66, IK08. Class I. ta = 40°C Weight for FLB141 #1 LED 6.83 Windage area ft² for FLB141 #1 LED 0.409 Orientation: all directions Mounting Accessories SF-FLD1 for FLB141 #1 145-9535 CF-FLD1 for FLB141 #1 145-9536...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation
Installation The product must be installed and maintained by a building/construction and/or electrical regulations and relevant legislation. Warning: Notice: no longer be valid and shall become the full responsibility of the modifying person/organisation. Claims based on defects attributable to improper installation and/or application, and the consequences thereof, are excluded. -
Page 5: Installation Procedure
Installation Procedure 2) Check that rating shown on luminaire label conforms with mains electrical supply. 07/18 IP66 FLB141-LED 120-277V / 60Hz 161-XXXX SOE XXXXXXX LED 3000K 18W item no. XXX (example) 3) Feed cable A from luminaire B through pivot and Drill relevant holes E and insert nylon plugs. - Page 6 5) Loosen screws F 6) Turn luminaire towards object to be while pulling cable A through hole. seated on pivot, then tighten screws F. 7) Connect cable A with mains supply cable. 8) Loosen screw G. Aim luminaire in desired a) ON/OFF (L = Phase, N = Neutral, direction and tighten screw G.
- Page 7 Suitable for column diameter 2.99 in. tion). 2) Check that rating shown on luminaire label conforms with mains electrical supply. 07/18 IP66 FLB141-LED 120-277V / 60Hz 161-XXXX SOE XXXXXXX LED 3000K 18W item no. XXX (example) 3) Drill screw holes A and cable entry hole B on C in position.
- Page 8 5) Loosen screws F. Feed cable D from luminaire 6) Turn luminaire E towards object to be E through pivot and cable entry hole B. Connect luminaire E C by seated on pivot, then tighten screws F. 7) Connect cable D with mains supply cable. 8) Loosen screw G.
- Page 9 WE-EF LIGHTING United States of America Tel +1 724 742 0030 Fax +1 724 742 0035 info.usa@we-ef.com TO9250W0522 © WE-EF 2022 Technical specifications are subject to change.
