3. Make sure that the mounting surface of the cutout is smooth and cleaned from
any burrs or debris.
4. Install the operator panel into the cutout.
5. In cases where the front panel seal is critical, use a torque wrench to ensure all
screws are torqued within the specification above.
6. Connect the cables in the specified order, according to the drawing and steps
below.
Caution:
•
The operat or panel must be brought t o ambient t emperat ure bef ore it isst art ed
up. If condensat ion f orms, ensure t hat t he operat or panel isdry bef ore connect ing
it t o t he power out let .
•
Ensure t hat t he operat or panel and t he cont roller syst em have t he same elect rical
grounding (ref erence volt age level), ot herwise errorsin communicat ion may
occur.
•
Ensure t hat t he vol t age and polarit y of t he power source is correct .
•
Separat e high volt age cablesf rom signal and supply cables.
•
Shielded communicat ion cables are recommended.
RS232/
RS422/
RS485
C
Ethernet

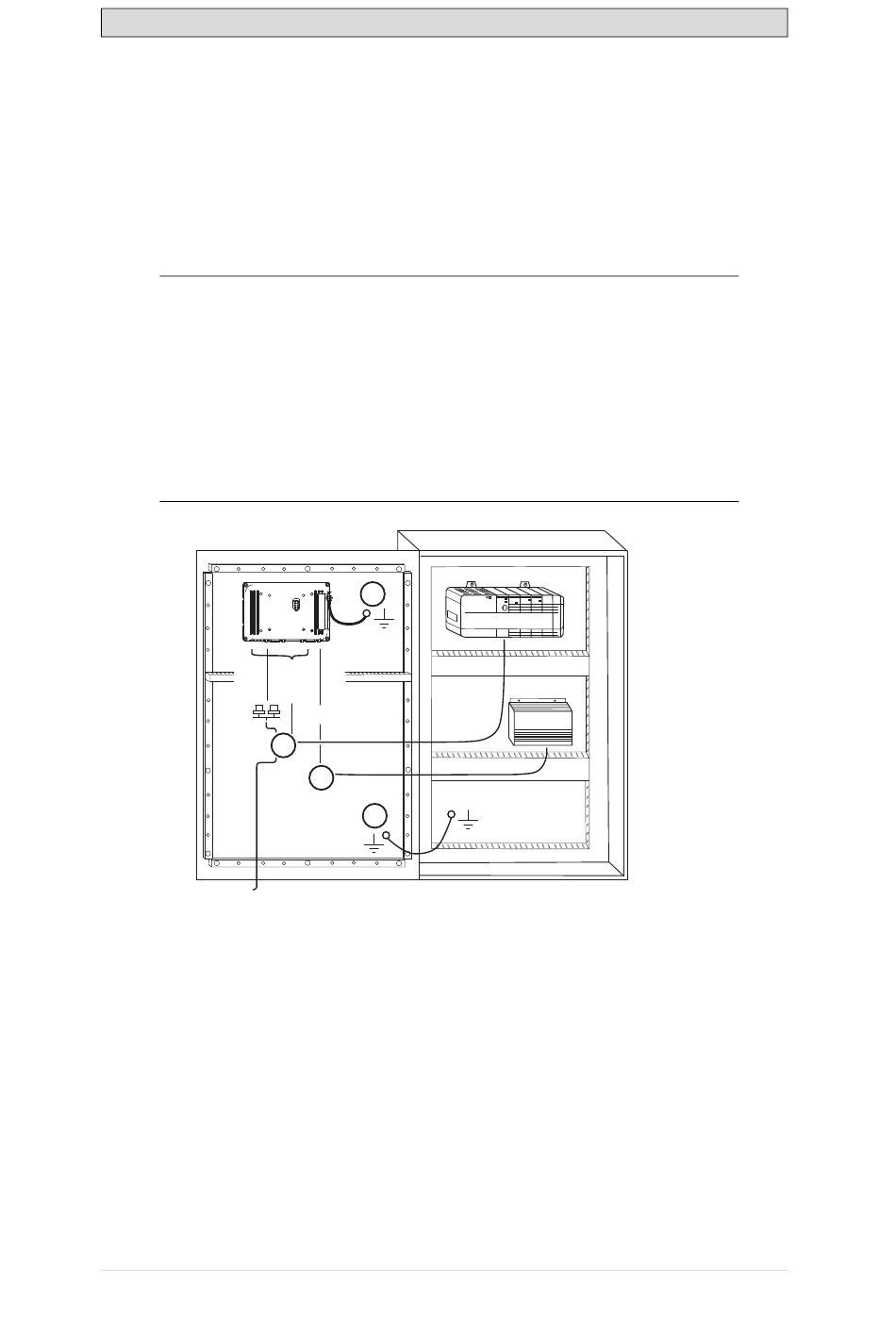

The image is illustrative only and may differ slightly from the actual panel.
Connect cable A.
–
Connect cable B, using 14-20 AWG (2.08–0.52 mm
–
torque.
Connect cable C.
–
Connect cable D. The recommended cross-section of the cable is 1.5
–
2
mm .
7. Carefully remove the protective film over the operator panel display, take care
to avoid static electricity that could damage the panel.
Beij er Electronics, MAEN328
B
Controller
24V DC
D
A
Power
24V DC
2
), 180–220 N-cm
Installation
