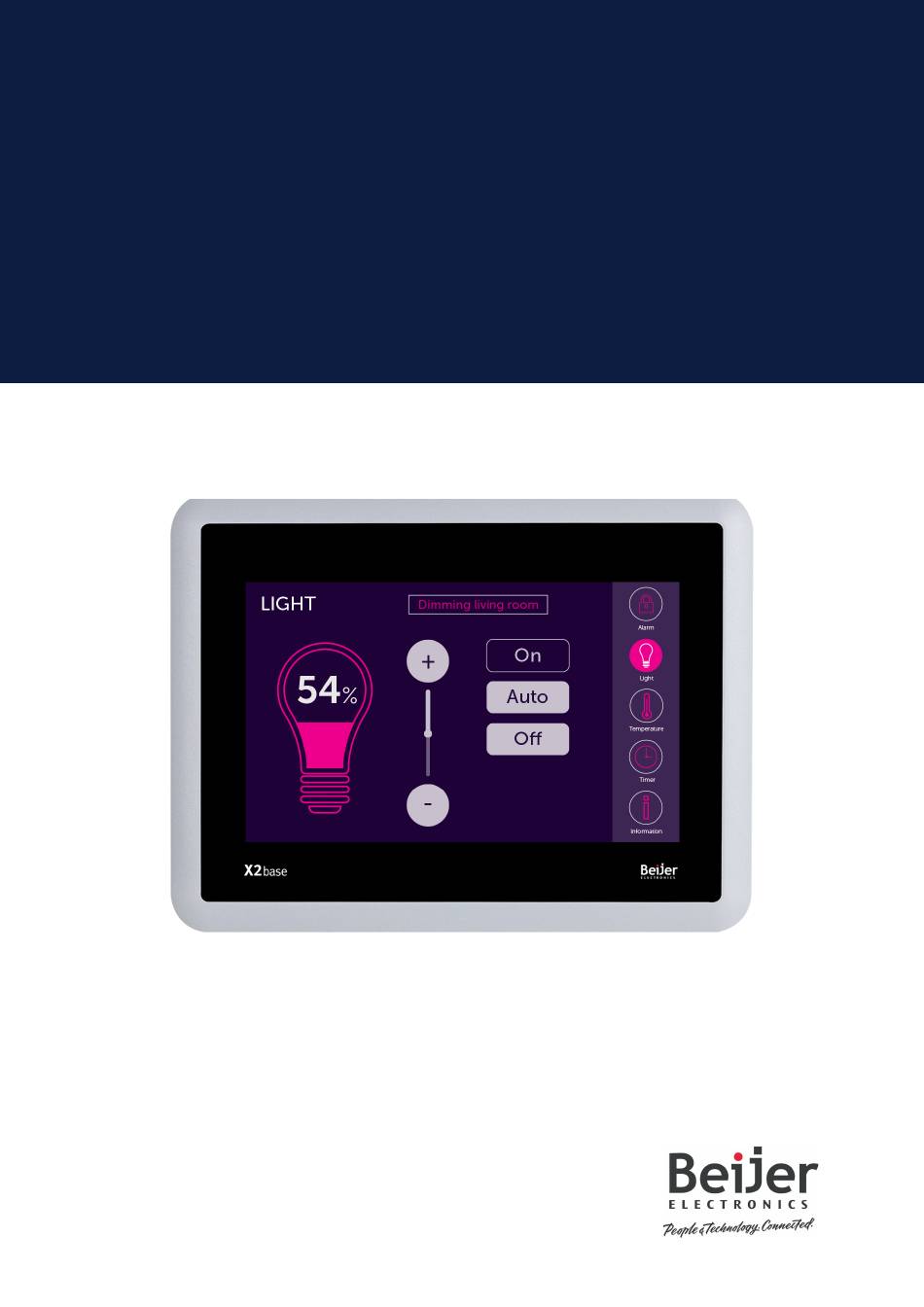

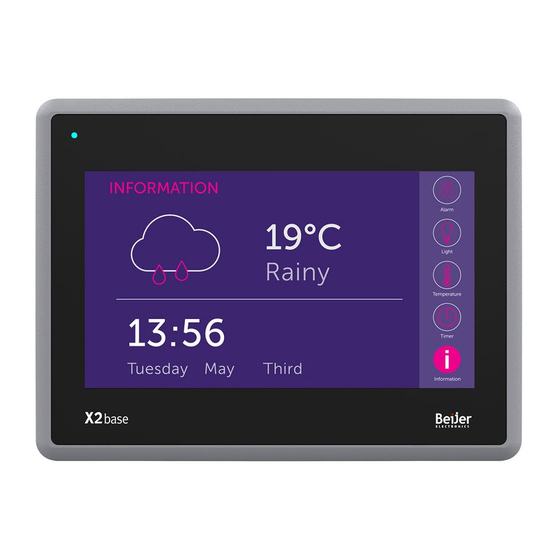

- Page 1 Hardware and Installation Manual X2 base 7 v2 HP MAEN330 2023-09...
- Page 2 The information in this document is subject to change without notice and is provided as availa- ble at the time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any information without updating this publication. Beijer Electronics AB, in- cluding all its group companies, assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
7.3. To Achieve Better EMC Protection ............24 7.4. Ambient Temperature ................25 7.5. Safety ..................... 26 7.6. Galvanic Isolation ................27 7.7. Cable and Bus Termination RS-485 ............28 7.8. USB Flash Drive .................. 28 7.9. Image Sticking ................... 28 Beijer Electronics, MAEN330 2023-09... -
Page 5: Safety Precautions
X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant threshold of the GB/T 26572-2011 standard. But still complies with the EU RoHS Directive 2011/65/EU. X: 表明该有害物质至少在部件的某一均质材料中的含量超出 GB/T 26572-2011 规定 的限量要求。但仍然 符合 EU RoHS 指令 2011/65/EU。 Beijer Electronics, MAEN330 2023-09... -
Page 6: Disposal Requirements Under Weee Regulations
1.5. During Installation • Install the HMI panel according to the accompanying installation instructions. • Ground the HMI panel according to the accompanying installation instructions. • Only qualified personnel may install the HMI panel. 2023-09 Beijer Electronics, MAEN330... -
Page 7: During Use
• Clean the display and surrounding front cover with a soft cloth and mild detergent. • The battery must be replaced by an authorized Beijer Electronics service center. 1.7.1. Cleaning the Display We recommend using a dry, clean cloth to wipe off dust regularly. Use alcohol or ammonia-based cleaning agent for cleaning only when necessary. -
Page 8: Dismantling And Scrapping
The layer structure of the touch screen contains air. In rare cases, the appearance of bubbles can arise. This is purely cosmetic and does not affect the functionality of the HMI panel. The appearance can occur under certain environmental conditions such as changes in temperature, humidity, or atmospheric pressure. 2023-09 Beijer Electronics, MAEN330... -
Page 9: Naming Convention
• X2 extreme 7 SL HP* • X2 extreme 12 SL HP SC* • X2 extreme 7 CO* • X2 extreme 12 SL HP RO NOTE Not all combinations are available. NOTE * indicates variants including IECEx\ATEX and C1D2 accreditation. Beijer Electronics, MAEN330 2023-09... -
Page 10: Installation
• A Phillips/slot screwdriver Do the following: Unpack and check the delivery. If damage is found, notify the supplier. NOTE Place the on a stable surface during installation. Dropping the HMI panel or letting it fall may cause damage. 2023-09 Beijer Electronics, MAEN330... - Page 11 To cut a correct opening for the HMI panel, use the cut out dimensions in the outline drawing. A separate cut out drawing is available for download from the Beijer Electronics web site. For more information, see chapters HMI Panel Drawings and Technical Data.
-
Page 12: Connections To The Controller
3.2.2. Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. 2023-09 Beijer Electronics, MAEN330... -
Page 13: Open Ports
In the firmware there are some ports that are open by default due to the operating system or that the internal application requires it. Type Description Open by default UDP and TCP Project transfer (9999) Netbios (137) Netbios (138) Filtered. Beijer Electronics, MAEN330 2023-09... -
Page 14: Technical Data
Technical Data 4. Technical Data Parameter X2 base 7 v2 HP Front panel, W×H×D 202x152x37 mm Cutout dimensions, W×H 186x136 (+/-1) mm Mounting depth 32 mm (132 mm including clearance) Mounting Switchboard installation Front panel seal IP 65 (Non-UL certified) - Page 15 Technical Data Parameter X2 base 7 v2 HP Active area of display, W×H 154.08x85.92 mm Pixel errors Class I (ISO 9241-307) Backlight brightness 300 cd/m2 Backlight lifetime 50000 hours Operating temperature -10°C to +50°C Storage temperature -20°C to +60°C Relative humidity in 5 - 90% non-condensed / 25°C...
-
Page 16: Chemical Resistance
10 minutes Isopropanol 10 minutes Toluene 5 hours The touch screen surface on the HMI panel is made of polyester with a hard coat to resist scratches and withstand exposure to many solvents without visible change. 2023-09 Beijer Electronics, MAEN330... -
Page 17: Touch Screen Protector
5.1.3. Touch Screen Protector For harsh environments and exposure to outdoor conditions, it is recommended to use a protective film to guard the touch screen from damage. This optional part can be ordered from Beijer Electronics. Beijer Electronics, MAEN330 2023-09... -
Page 18: Hmi Panel Drawings
Serial port pin assignment COM 1 COM 2 COM 3 RS-422 TX+ or RS-485 Tx+/Rx+ RS-232 RxD RS-232 TxD RS-422 RX+ RS-485 Tx+/Rx+ RS-422 TX- or RS-485 Tx-/Rx- RS-232 RTS RS-232 CTS RS-422 RX- RS-485 Tx+/Rx- 2023-09 Beijer Electronics, MAEN330... - Page 19 RS-422 TX- or RS-485 Tx-/Rx- RS-232 RTS RS-232 CTS RS-422 RX- The connector supports up to two independent serial communication channels and can be configured for RS-232 and RS-422 or RS-485. COM-C Serial port pin assignment RS-485 Tx+/Rx+ RS-485 Tx-/Rx- Beijer Electronics, MAEN330 2023-09...
-
Page 20: Hmi Panel Outline
HMI Panel Drawings 6.2. HMI Panel Outline NOTE Minimum thickness for the front plate is 2.0mm. 2023-09 Beijer Electronics, MAEN330... - Page 21 HMI Panel Drawings NOTE A Step CAD file is available on www.beijerelectronics.com Beijer Electronics, MAEN330 2023-09...
-
Page 22: Additional Installation Tips
• 3 turns around the ferrite core provide 9 times the suppression of 1 turn. • Connect a wire or grounding braid, that is sized correctly according to local electrical codes, between the chassis of the HMI panel and the closest grounding point. 2023-09 Beijer Electronics, MAEN330... -
Page 23: Ethernet Connection In The Hmi Panel
A good solution may be to use a shielded Ethernet cable, but to connect the shield at one end only. One option is to break the shield, see 3 in drawing above. Beijer Electronics, MAEN330 2023-09... -
Page 24: To Achieve Better Emc Protection
HF transients to ground. 7.3. To Achieve Better EMC Protection • Initially, use the original cabling from Beijer Electronics primarily. • Place the 24 V DC and communications cabling in one cable trunk/cable duct and 230/380 V AC in another. -
Page 25: Ambient Temperature
An approximate value of the net power consumption for the HMI panel can be calculated by multiplying the supply voltage with the current drawn by the HMI panel. This is assuming that all supplied power is transformed to heat. Beijer Electronics, MAEN330 2023-09... -
Page 26: Safety
• Safety is increased. The 24 V power supply is not live in the event of a faulty connection or short circuit between 0 V (24 V) and 230 V phase. • Transients on the 24 V feed are connected to the ground. 2023-09 Beijer Electronics, MAEN330... -
Page 27: Galvanic Isolation
HMI panel, and can cause errors. Use external units to improve communication and achieve galvanic isolation. Westermo has good industry-standard insulators that are also insulated from the 24 V DC feed. Beijer Electronics, MAEN330 2023-09... -
Page 28: Cable And Bus Termination Rs-485
Image sticking can be caused by: • Static images • No screensaver • Sharp contrast transition (e.g. black/white) • High ambient temperatures How Image sticking can be avoided or reduced: 2023-09 Beijer Electronics, MAEN330... - Page 29 • Use the screensaver functionality (see SW manual). • Changing constantly between static and dynamic images. • Avoid excessive brightness differences between foreground and background elements. • Use colors with similar brightness. • Use complementary colors in follow-up images. Beijer Electronics, MAEN330 2023-09...
