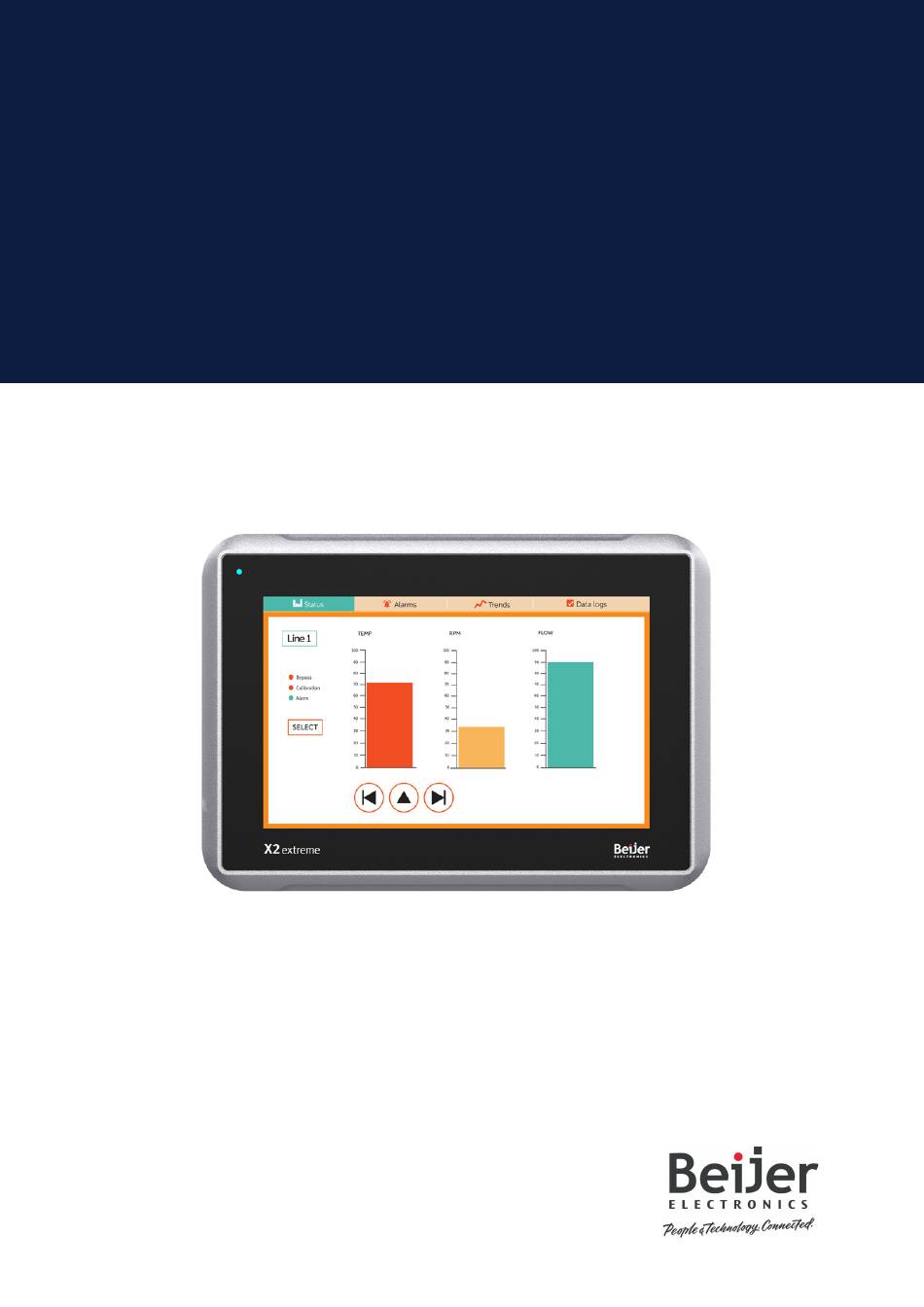

- Page 1 Installation Manual X2 extreme 7 SL HP MAEN253B 2023-09...
- Page 2 The information in this document is subject to change without notice and is provided as availa- ble at the time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any information without updating this publication. Beijer Electronics AB, in- cluding all its group companies, assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
7.5. CAN Interface ..................28 7.5.1. Cable Recommendations .............. 28 7.5.2. Termination ................28 7.5.3. Restrictions and Recommendations ..........28 7.6. Cable and Bus Termination RS-485 ............28 7.7. USB Flash Drive .................. 29 7.8. Image Sticking ................... 29 Beijer Electronics, MAEN253B 2023-09... -
Page 5: Safety Precautions
PCB and electronic components Cr6+ PBDE PCB 和电子元件 O: Indicates that this toxic or hazardous substance contained in all of the homogenous materials for this part is below the limit requirement in SJ/T 11363–2014. O: 表示该有害物质在该部件所有均质材料中的含量均在 SJ/T 11363–2014 规定的限量要求以下 Beijer Electronics, MAEN253B 2023-09... -
Page 6: Disposal Requirements Under Weee Regulations
• These devices are Class 2 supplies programmable controllers (industrial PCs) or the use in industrial control equipment and are intended to be (front) panel mounted. • For use on a flat surface of an enclosure. 2023-09 Beijer Electronics, MAEN253B... -
Page 7: Iecex/Atex Certificate And Dust Rating
1.8. During Use • Keep the HMI panel clean. • Emergency stop and other safety functions may not be controlled from the HMI panel. • Do not use excessive force or sharp objects when operating the touch screen. Beijer Electronics, MAEN253B 2023-09... -
Page 8: Service And Maintenance
• Clean the display and surrounding front cover with a soft cloth and mild detergent. • The battery must be replaced by an authorized Beijer Electronics service center. 1.9.1. Cleaning the Display We recommend using a dry, clean cloth to wipe off dust regularly. Use alcohol or ammonia-based cleaning agent for cleaning only when necessary. -
Page 9: Dismantling And Scrapping
The layer structure of the touch screen contains air. In rare cases, the appearance of bubbles can arise. This is purely cosmetic and does not affect the functionality of the HMI panel. The appearance can occur under certain environmental conditions such as changes in temperature, humidity, or atmospheric pressure. Beijer Electronics, MAEN253B 2023-09... -
Page 10: Naming Convention
• X2 marine 15 HB SC • X2 extreme 7 12V* • X2 extreme 12 HP SC* • X2 extreme 7 SL HP* • X2 extreme 12 SL HP SC* • X2 extreme 7 CO* • X2 extreme 12 SL HP RO NOTE Not all combinations are available. -
Page 11: Installation
Installation 3. Installation 3.1. Installation Process Measurement X2 extreme 7 SL HP 75 × 75 mm Hole size 5.5 ± 0.5 mm Thread type M5× 0.8 mm Max thread depth 8 mm Min required engagement 5 mm Torque (max) 3.5 Nm The following is needed: •... - Page 12 Drill the correct hole pattern in panel outlined above or install unit on VESA compliant mounting bracket. • Connect cable A to the terminal, using 14-20 AWG (2.08–0.52 mm2), 180–220 N-cm torque. NOTE Use minimum 85°C copper conductors only. 2023-09 Beijer Electronics, MAEN253B...
-
Page 13: Protective Connector Shield Installation Process
7.5 mm Gland (LAN) Binder 100-1150 99-1430-992-04 X2 extreme Connector, M12 SS 4p female 5.5 - 7.5 mm Gland (Power) 3.1.1. Protective Connector Shield Installation Process Do the following: Install the protective connector shield as shown. Beijer Electronics, MAEN253B 2023-09... - Page 14 Installation NOTE Torque: 45 Ncm. Secure the cables to the protective connector shield using the included cable ties 2023-09 Beijer Electronics, MAEN253B...
-
Page 15: Connections To The Controller
3.1.3. Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Beijer Electronics, MAEN253B 2023-09... -
Page 16: Technical Data
Technical Data 4. Technical Data Parameter X2 extreme 7 SL HP Dimensions, W×H×D 205 x 144 x 65 mm Sealing IP66 (IP65 for IECEx \ ATEX) Touch screen material Polyester on glass, ITO film, resistive Frame overlay Autoflex EBA 180L... -
Page 17: Compass Safe Distance
Technical Data Parameter X2 extreme 7 SL HP Power supply +24 V DC (18–32 V DC) CE: The power supply must conform with the requirements according to EN/IEC 60950 and EN/IEC 61558-2-4. UL and cUL: The power supply must conform with the requirements for class 2 power supplies. -
Page 18: Chemical Resistance
The Autoflex protective film covers the overlay surrounding the screen. Solvent Resistance The protective film withstands exposure of more than 24 hours duration under DIN 42115 Part 2 to the following chemicals without visible change: Acetonitrile Diesel Petroleum spirit 2023-09 Beijer Electronics, MAEN253B... -
Page 19: Touch Screen Surface
5.2.3. Touch Screen Protector For harsh environments and exposure to outdoor conditions, it is recommended to use a protective film to guard the touch screen from damage. This optional part can be ordered from Beijer Electronics. Beijer Electronics, MAEN253B 2023-09... -
Page 20: Hmi Panel Drawings
6.1.1. Power Supply Description M12. 4 pin male 6.1.2. Communication Ports COM B COM 3 M12, 8 pin female RS-485 Tx+/Rx+ CAN-H TERM+ TERM+ RS-485 Tx-/Rx- CAN-L TERM- TERM- NOTE The connector supports galvanic isolated RS-485 or CAN. 2023-09 Beijer Electronics, MAEN253B... - Page 21 RS-485 Tx+/Rx+ RS-232_RxD RS-232_TxD RS-422_Rx+ RS-422 Tx- CAN-L RS-485 Tx-/Rx- RS-232_RTS RS-422 Rx- NOTE The connector supports up to two independent serial communication channels and can be configured for RS-232, and RS-422 or RS-485 or CAN. Beijer Electronics, MAEN253B 2023-09...
-
Page 22: Hmi Panel Outline
HMI Panel Drawings 6.2. HMI Panel Outline 2023-09 Beijer Electronics, MAEN253B... - Page 23 HMI Panel Drawings NOTE A Step CAD file is available on the web site www.beijerelectronics.com Beijer Electronics, MAEN253B 2023-09...
-
Page 24: Additional Installation Tips
7.2. To Achieve Better EMC Protection • Initially, use the original cabling from Beijer Electronics primarily. • Place the 24 V DC and communications cabling in one cable trunk/cable duct and 230/380 V AC in another. If the cables need to be crossed, cross them at 90° only. Avoid combining the cabling for stronger 24 V DC outputs with the communication cabling. - Page 25 Ferrite cores that are snapped onto the shielded cabling may remove minor disturbances. Large ferrite pieces that are snapped onto unshielded cabling and where the wires go 2-4 times around the cores are approximately 5-25 times more efficient. Beijer Electronics, MAEN253B 2023-09...
-
Page 26: Safety
• Transients on the 24 V feed are connected to the ground. • No risk that the 24 V feed is at a high level in relationship to the ground. This is not unusual since there is high static electricity. 2023-09 Beijer Electronics, MAEN253B... -
Page 27: Galvanic Isolation
HMI panel, and can cause errors. Use external units to improve communication and achieve galvanic isolation. Westermo has good industry-standard insulators that are also insulated from the 24 V DC feed. Beijer Electronics, MAEN253B 2023-09... -
Page 28: Can Interface
• If maximum transfer distance and maximum transfer speed is needed, shielded and twisted pair cable should be used. The mutual capacitance may not exceed 52.5 pF/m, and the cable area should be at least 0.25 mm (AWG 24). 2023-09 Beijer Electronics, MAEN253B... -
Page 29: Usb Flash Drive
• Use the screensaver functionality (see SW manual). • Changing constantly between static and dynamic images. • Avoid excessive brightness differences between foreground and background elements. • Use colors with similar brightness. • Use complementary colors in follow-up images. Beijer Electronics, MAEN253B 2023-09...
