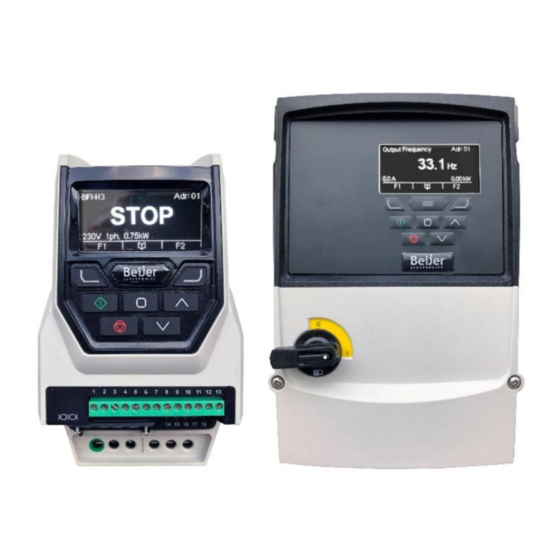

- Page 1 Quick start guide CANopen communication to BFI-P2/E3 SER0016 – X2 control communication with BFI-P2/E3 by CANopen...
-
Page 2: Function And Area Of Use
Copyright © Beijer Electronics, 2020 This documentation (below referred to as ‘the material’) is the property of Beijer Electronics. The holder or user has a non-exclusive right to use the material. The holder is not allowed to distribute the material to anyone outside his/her organization except in cases where the material is part of a system that is supplied by the holder to his/her customer. -
Page 3: Table Of Contents
Parameter settings for CANopen in BFI-P2/E3 ............17 Communication timeout ................. 17 8 Troubleshooting Communication problems ..............19 9 CANopen data in BFI-P2/E3 Register Mapping .............. 22 CANopen Protocol Specification ................ 22 PDO Default Mapping..................22 PDO transmission type ................... 23 CANopen specific Object table ................. -
Page 4: System Set Up
Here comes a short description of what needs to be done and tools to be used to make X2 control work together with one or several BFI-P2/E3 in a CANopen network: 1. Set up of Station number address and communication speed in each BFI 2. -
Page 5: Hardware
CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 5 Hardware The following chapter describes the ethernet connections of X2 control and BFI-P2/E3. CANopen port of X2 control Com, 9-pole D-sub, on X2 control contain one CANopen Network0 on pin1 and pin6. IP address setting in X2 control The setting of the Ethernet ports in X2 control is being done on the X2 control itself. -
Page 6: Canopen Port Of Bfi
CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 CANopen port of BFI CANopen port in BFI depends on model. It has either one or two RJ45 connector with pin configuration as in figure below. All BFI IP66 has two RJ45 connectors for incoming and outgoing network cabling. All BFI IP20 has one RJ45 for CANopen connection. -
Page 7: Function Block Bfi_Canopen
CANopen_Manager: 3.5.10.0 Baud rate: 500 kbits/sec Function Block X2_CANopen This function block is used to control and Read/Write Data Functionality with a BFI-P2/E3 by CANopen PLC Types X2 control (marine / extreme) or BoX2 pro (SC / motion) Version 1.0.0 Input_Output... - Page 8 CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 Input Type Function i_Start BOOL Start of Drive. 0=>Stop 1=>Running. Direction decided by sign of Set frequency. i_FastStop BOOL 1 => Fast stop of motor with ramp in P2-25 for BFI-P2 and P-24 for BFI-E3.
-
Page 9: Program Example Codesys, Bcs Tools And Ix Developer
CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 Program example CODESYS, BCS Tools and iX Developer BFI and X2 control Start Up project is a very powerful tool providing a project starting point way beyond what would otherwise be possible. The project contains one HMI-screen to handle the BFI, start/stop, read/write parameters, read type of BFI, handling alarms. -
Page 10: How To Add An Additional Bfi In The Network
Containing Function blocks, one FB for each BFI. Library Manager One of the libraries is X2 BFI-P2/E3 CANopen. Contains the FB to control BFI by CANopen. The FB is compiled and by that not possible to open up. Requires one FB per BFI. -
Page 11: How To Remove Bfi In The Network
CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 In Folder General, set Enable Expert Settings In Folder General, set Optional Settings • Chose the new BFI below CANopen_Manager. In this example new BFI is number 4 In Folder CANopen I/O Mapping. Copy all variable names form BFI_1, rename 1 to 4 and paste into the new BFI. -
Page 12: Canopen Setting In Codesys/Bcs Tools
CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 CANopen setting in CODESYS/BCS Tools The setting of CANopen ports must also be done in CODESYS/BCS Tools, both for the Master and for all Slaves. Number of the CAN network to be linked via the CANbus interface. - Page 13 CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 Start Slaves : The CANopen manager is responsible for starting the Slaves. : You must start the Slaves from the application, using the CiA405 NMT function block. NMT Error Behaviour Restart Slave. If an error occurs during Slave monitoring (NMT Error Event), then the Slave is restarted automatically by the stack (NMT Reset + SDO Configuration + NMT Start).
- Page 14 CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 The node number identifies the CAN module as unique and it corresponds to the number set on the module (value between 1 and 127). You provide the node ID as a decimal. Click this button to open a dialog for activating the SDO channels that are predefined in the EDS file.
- Page 15 Note: When you insert a device with the heartbeat function, its heartbeat settings are harmonized automatically with the master (CANopen manager). : Check the vendor ID of the Slave at start up. Vendor ID for Beijer Electronics is 145. If not, corresponding communication will not start up.
-
Page 16: Ix-Project
Take control of the BFI from this menu. PLC-program is neglected. Start/stop- Coast- and Fast stop buttons. Frequency Setpoint. Acceleration/Deceleration Time to be used if P-12=4 in BFI-P2/E3. Parameter handling a. Parameter number to be either tapped in or Increase/Decrease buttons b. -
Page 17: Eds Files Describing Bfi Slaves
- BFI-P2 Size4 to Size7: BFI-P2_Size4-7.eds The files are attached the program example but also available on www.beijerelectronics.com Parameter settings for CANopen in BFI-P2/E3 Set following parameters in BFI-E3 - P12=7. CANopen control with Acceleration and Deceleration time in parameter P-03 and P-04. - Page 18 CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 If the BFI is to continue when communication interruption, set as below: 18 (25)
-
Page 19: Troubleshooting Communication Problems
Check cabling of the network and splitters. Setting “Network”=0 in CANbus (CANbus)/General means CAN-H is Pin1 and CAN-L is Pin6. Termination resistor applied correctly in both end of network? Power turned on to BFI-P2/E3? Power on to X2 control? 19 (25) - Page 20 CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 Software or settings P1-12 = 6 in BFI-P2 and P-12 = 7 or 8 in BFI-E3? Communication speed setting in each Slave corresponding to Master setting in CODESYS, P- 36 in BFI-E3 or P5-01 in BFI-P2?
- Page 21 H 0.0 in display? Start signal arrived but no speed setpoint o Speed sent to BFI-P2/E3 must be a value between parameter value P1-01 and P1-02. o Speed into Function block is a REAL. Value 50.0 Hz means value 500 being sent to BFI-P2/E3 o Check that sent speed by bus corresponds with value in P0-07 in BFI-P2/E3.
-
Page 22: Canopen Data In Bfi-P2/E3 Register Mapping
CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 9 CANopen data in BFI-P2/E3 Register Mapping CANopen Protocol Specification The tables below show the Index and Sub Index required to address each parameter. All User Adjustable parameters are accessible by CAN, except those that would directly affect the communications. -
Page 23: Pdo Transmission Type
CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 PDO transmission type Various transmission modes can be selected for each PDO. For RX PDO, the following modes are supported: Transmission Mode Description Type 0 – 240 Synchronous The received data will be transferred to the drive active control register when the next sync message is received. -
Page 24: Parameter Access Overview Bfi-P2 And Bfi-E3
CANopen communication to BFI-P2/E3 SER0016_V1.0.0 2021-03 1401h RX PDO2 comms param. no. of entries RX PDO2 COB-ID C0000300h+Node ID RX PDO2 transmission type 1600h RX PDO1 1 mapping / no. of entries RX PDO1 1st mapped object 20000010h RX PDO1 2nd mapped object... -
