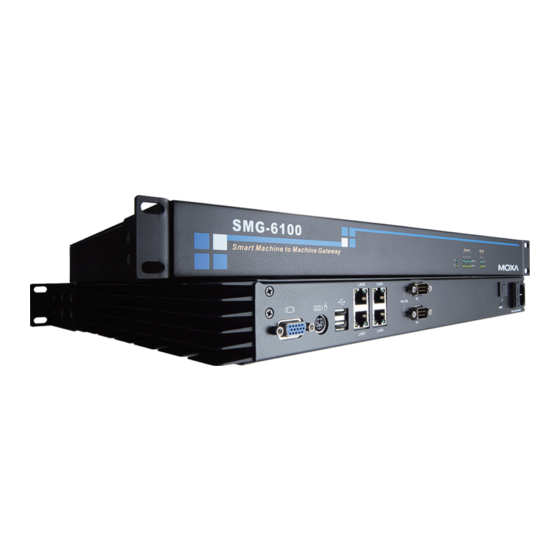

SMG-1100/6100 User's Manual
First Edition, January 2011
www.moxa.com/product
© 2011 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMG-6100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Moxa Technologies SMG-6100 Series

Summary of Contents for Moxa Technologies SMG-6100 Series

  • Page 1 SMG-1100/6100 User’s Manual First Edition, January 2011 www.moxa.com/product © 2011 Moxa Inc. All rights reserved. Reproduction without permission is prohibited.
  • Page 2 SMG-1100/6100 User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice Copyright ©2011 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. Trademarks The MOXA logo is a registered trademark of Moxa Inc.

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................1-1 Overview ............................1-2 Introduction to IPSec VPN Connectivity ....................1-2 IPSec VPN Requirements ......................1-2 Typical IPSec VPN Scheme ......................1-2 Planning IPSec VPNs ........................1-2 Configuring IPSec Tunnels ......................1-3 Introduction to MODBUS Gateway ......................1-3 MODBUS Gateway Applications .....................

  • Page 4: Introduction

    Introduction Thank you for using Moxa’s SMG-6100 IPSec Gateway and SMG-1100 MODBUS Gateway. These products help you easily establish the secured network communication with the IPSec protection and the protocol conversion between MODBUS/Serial and MODBUS/TCP. In this manual, you will learn how to configure and monitor the SMG-6100 and the SMG-1100 for your network communication.

  • Page 5: Overview

    SMG-1100/6100 Introduction Overview The SMG-6100 can be used as a smart gateway with sophisticated Machine-to-Machine solutions to help construct a tunnel server (IPSec) and bi-directional IP communications. When used with Moxa’s SMG-1100, the SMG-6100 can serve as a secure networking host over IPSec to back-end host computers and MODBUS TCP Master/Slave devices.

  • Page 6: Configuring Ipsec Tunnels

    SMG-1100/6100 Introduction Configuring IPSec Tunnels To set up IPSec tunnels between the SMG-6100 and the remote mobile SMG (the SMG-1100), refer to the VPN(IPSec) section in the SMG Manager chapter of this manual. We strongly recommend that IPSec tunnels be configured from the SMG-6100 and deployed to the SMG-1100 at the same time via SMG Managerat the local site.

  • Page 7: Managing Modbus Gateway

    SMG-1100/6100 Introduction MODBUS RTU/ASCII Master In the MODBUS Gateway configuration for a MODBUS RTU/ASCII master and MODBUS TCP slave, the software running on each MODBUS RTU/ASCII master device sends MODBUS RTU/ASCII request messages to the MODBUS Gateway via its connected serial port. The MODBUS Gateway then converts the messages to MODBUS TCP request messages and securely sends them to MODBUS TCP slaves in MODBUS TCP slave devices via the Internet, based on slave ID values in the MODBUS request messages and settings in the MODBUS Gateway.

  • Page 8: Installation

    Installation The following topics are covered in this chapter:  Installation  Deploying the SMG-1100  Installing Device Configuration Gateway  Installing SMG Manager  Uninstalling Device Configuration Gateway and SMG Manager...

  • Page 9: Installation

    SMG-1100/6100 Installation Installation Deploying the SMG-1100 You must use SMG Manager to configure the SMG-1100. In the example shown below, SMG Manager, Device Configuration Gateway, and the SMG-6100 are all on subnet 192.168.3.xxx. Each SMG-1100 also has an intranet IP address in subnet 192.168.30.xxx, and this IP address is used when the SMG-1100 is deployed at the remote site.
  • Page 10 SMG-1100/6100 Installation 2. Click Next to continue. 3. Next, select Browse if you would like DCG to be installed in a different folder. Click Next to continue. 4. Click Finish to complete the installation procedure.

  • Page 11: Installing Smg Manager

    SMG-1100/6100 Installation Installing SMG Manager SMG Manager should be installed on the computers at the control center. Once installed, the computers at the local site can connect to the Device Configuration Gateway and connect over the internet to the SMGs at the remote site.
  • Page 12 SMG-1100/6100 Installation 3. Next, select Browse if you would like SMG Manager to be installed in a different folder. Click Next to continue. 4. Click Next to confirm the installation. 5. Wait until the installation has finished.

  • Page 13: Uninstalling Device Configuration Gateway And Smg Manager

    SMG-1100/6100 Installation 6. Click Close to complete the installation procedure. Uninstalling Device Configuration Gateway and SMG Manager Follow these instructions to uninstall Device Configuration Gateway and SMG Manager. 1. Select Add or Remove Programs from Start  Settings  Control Panel. 2.
  • Page 14 SMG-1100/6100 Installation 3. Click Yes to start removing Device Configuration Gateway or SMG Manager from your computer.

  • Page 15: Smg Manager

    SMG Manager This chapter describes how to use SMG Manager to monitor and configure SMG-6100 and SMG-1100 devices at remote sites over the Internet. The following topics are covered in this chapter:  Launching Device Configuration Gateway  Launching SMG Manager ...

  • Page 16: Launching Device Configuration Gateway

    SMG-1100/6100 SMG Manager Launching Device Configuration Gateway Before using SMG Manager on your PC to manage SMGs, you must first run Device Configuration Gateway. 1. Select Device Configuration Gateway from the Start menu under All ProgramsMOXA. 2. The Device Configuration Gateway will run in the background; an icon will be displayed in the system tray. Launching SMG Manager 1.

  • Page 17: Connecting To Device Configuration Gateway

    SMG-1100/6100 SMG Manager 2. Once launched, the SMG Manager interface will appear. Connecting to Device Configuration Gateway 1. Choose Gateway Manager from Tools.
  • Page 18 SMG-1100/6100 SMG Manager 2. Type in the IP address and the name of the Gateway Server. Click Add to continue. 3. The Gateway information will be displayed as follows. Click Connect to continue. 4. If the information is correct, you will be able to connect to the Gateway Server and the main screen of the SMG Manager will appear.

  • Page 19: Introduction To The Smg Manager Interface

    SMG-1100/6100 SMG Manager 5. If you have left Gateway Server and would like to connect to the existing server again, right-click the name of the Gateway, and then select Connect. 6. Please note that only one Gateway Server is allowed to connect. If you would like to connect to another server, disconnect the first server and then connect the second one.
  • Page 20 SMG-1100/6100 SMG Manager Exit: Click this to quit SMG Manager. Function Each function will be introduced in the Toolbar Functions section. View Allows you to decide if the toolbar will be displayed. Check the Toolbar option to show the toolbar; uncheck the Toolbar option to remove the toolbar.

  • Page 21: Toolbar Functions

    SMG-1100/6100 SMG Manager About SMG Manager: The SMG Manager version number will appear in the SMG Manager window. Toolbar Functions The icons that appear on the toolbar, listed from left to right, are Login/Change Password, Locate, Set Device Name, Network Setup, GPRS, VPN(IPSec), Modbus, Import/Export Configuration, Apply, Monitor Connections, Firmware Upgrade and Reboot.

  • Page 22: Locate

    SMG-1100/6100 SMG Manager The default Username and Password is smguser. If you want to change password, click Login/Change Password again, and fill in old, new passwords and confirm the new password. Locate If you are managing multiple SMG units, it can be confusing to keep track of which physical SMG unit you are currently configuring in SMG Manager.

  • Page 23: Set Device Name

    SMG-1100/6100 SMG Manager Click OK once you have found the correct unit. Set Device Name You can enter a name to help you identify the unit, such as the location, function, etc. Network Setup SMG Manager provides a Network Setup function that allows users to configure network settings. Select and right-click on the SMG, and then select Network Setup to continue.
  • Page 24 SMG-1100/6100 SMG Manager This function configures the IP address and DNS settings. Click the IP tab to select the interface, and enter the related IP information, including the interface name, DHCP or Fixed IP, IP address, subnet mask, and default gateway.

  • Page 25: Gprs

    SMG-1100/6100 SMG Manager GPRS 3-11...
  • Page 26 SMG-1100/6100 SMG Manager Before using the GPRS, the APN (Access Point Name), Username (user ID account) and Password (user password) must be filled in for the modem initialization command. Connect rule: Select Connect at boot to configure the SMG-1100 to automatically connect to GPRS upon boot up, or select none if not using a GPRS connection.

  • Page 27: Vpn(Ipsec)

    SMG-1100/6100 SMG Manager VPN(IPSec) This section introduces how to configure the SMG-6100 as the IPSec Gateway.It also illustrates how to configure the SMG-1100 to work with the SMG-6100 via IPSec security on the Internet for secure data transmission and remote device monitoring. Client IP: Wan IP: Client IP:...
  • Page 28 SMG-1100/6100 SMG Manager You can see the IPSec tunnel list. Select which WAN interface you wish to use and click Add to continue. The following section describes how to make a offline configuration file for future/remote use, and how to directly import IPSec configuration into the client over the network.
  • Page 29 SMG-1100/6100 SMG Manager Off-Line Import IPSec Configuration Tunnel Name: Select the Off-Line Client and click Next to continue. Tunnel Name: Provide a name for this IPSec tunnel. In the screenshot below the tunnel is named T1. Server/Client Tunnel ID: Provide the ID that will be used in authentication. This ID must be in the form of a domain name preceded by @ or an IP address.
  • Page 30 SMG-1100/6100 SMG Manager Click OK to save the IPSec configuration. Select a local file to save. 3-16...
  • Page 31 SMG-1100/6100 SMG Manager In SMG-6100 page, you can see all IPSec configuration that you have set. Take this IPSec configuration file to corresponding SMG-1100s, and click Import to load the IPSec tunnel info. Connect Rule: whenever the SMG-1100 have IPSec tunnel info, you can select its activity mode. Select None to manually connect to the IPSec tunnel by yourself;...
  • Page 32 SMG-1100/6100 SMG Manager 3-18...
  • Page 33 SMG-1100/6100 SMG Manager On-Line Import IPSec Configuration If the SMG-1100 is online for configuration, you will see the IP in the drop-down list. Select the IP of the client you wish to configure and directly import the IPSec configuration. Refer to off-line configuration directions for information on IPSec settings. Click Add to continue. Select Auto import client configuration to SMG-1100 and click OK.

  • Page 34: Modbus

    SMG-1100/6100 SMG Manager Once you see the Import VPN configuration successfully popup message, the IPSec tunnel info has been configured in both the SMG-6100 and SMG-1100. Modbus In the device list, select the SMG-1100, then click the Modbus icon. 3-20...
  • Page 35 SMG-1100/6100 SMG Manager You will be guided to the Modbus Gateway Configuration dialog. Select either Slave or Master type for Port 1 and Port 2. Note that both Modbus serial ports use the same type, but can have different Transmission Modes: RTU or ASCII.
  • Page 36 SMG-1100/6100 SMG Manager The Serial tab is where each serial port’s communication parameters are configured. You can configure Baud Rate, Parity, Stop Bit, Flow Control, FIFO, and Interface Mode. Data bits is not configurable. The Slave ID Map tab is where slave IDs are managed. The definitions on this tab determine how requests will be routed by the unit.
  • Page 37 SMG-1100/6100 SMG Manager When the serial port is set to RTU Slave or ASCII Slave mode, simple select the Slave ID entry in the table and modify the range. For TCP slaves, you can add an entry that assigns a range of Slave IDs from any IP address access.

  • Page 38: Import/Export Configuration

    SMG-1100/6100 SMG Manager Import/Export Configuration To import or export the configuration of an SMG-6100/1100, click Import/Export Configuration, and then follow the onscreen instructions to upload/download the configuration file. 3-24...

  • Page 39: Apply

    SMG-1100/6100 SMG Manager Apply After configuring the SMG-6100/1100, remember to click Apply to save the information to the host system registry. Settings or changes to the SMG-6100/1100 will not become effective until they are applied. Monitor Connections Click Monitor Connections to check the status of GPRS, VPN and Modbus connections. 3-25...

  • Page 40: Upgrading The Firmware

    SMG-1100/6100 SMG Manager Upgrading the Firmware If you would like to upgrade the firmware on one device, first click the check box next to the SMG, and then right-click it and select Firmware Upgrade. You may also use the Firmware Upgrade icon in the toolbar. If you would like to upgrade the firmware on two or more devices, make sure that the devices have been selected, and then click the Firmware Upgrade icon to continue.
  • Page 41 SMG-1100/6100 SMG Manager In the Open window, choose the firmware file, and then click Open to continue. If you would like to upgrade the firmware on multiple SMGs, make sure that they are of the same model type and that you have the correct firmware file. Using the incorrect firmware may cause the system to crash. Select additional devices from the Non-selected device(s) list and use the arrow buttons to move them to the Selected device(s) list.

  • Page 42: Reboot

    SMG-1100/6100 SMG Manager Please note that when firmware upload is complete, it will still take several minutes for the SMG to update the new information. All the functions may not work during this period. Reboot SMG Manager provides a Reboot function that allows users to reboot the device. Select and right-click the SMG and then select Reboot to continue.
  • Page 43 SMG-1100/6100 SMG Manager 3-29...
