Table of Contents

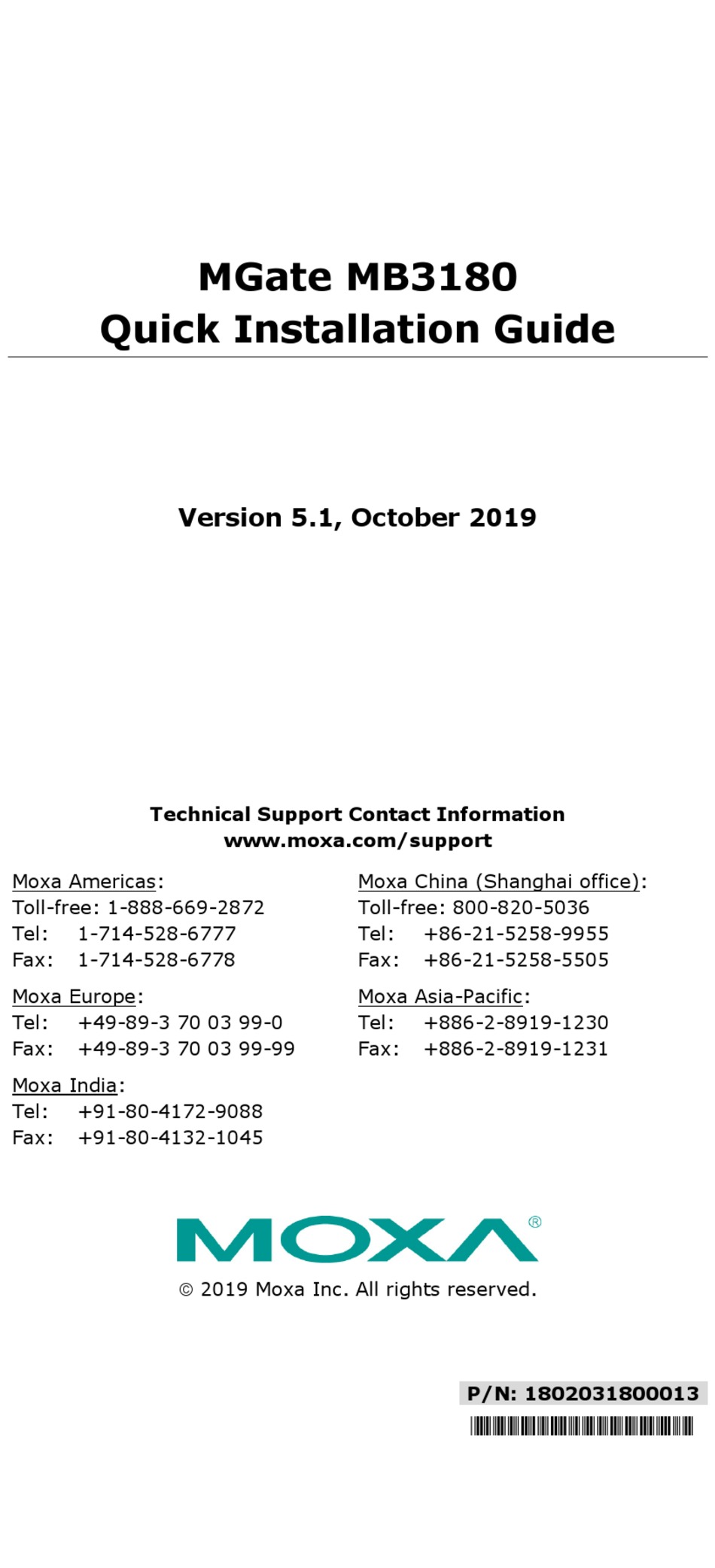

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
MGate MB3180
Version 5.1, October 2019
Technical Support Contact Information
www.moxa.com/support
 2019 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802031800013
*1802031800013*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGate MB3180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies MGate MB3180

Summary of Contents for Moxa Technologies MGate MB3180

  • Page 1 MGate MB3180 Quick Installation Guide Version 5.1, October 2019 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...

  • Page 2: Package Checklist

    Overview The MGate MB3180 is a 1-port Modbus gateway that converts between Modbus TCP and Modbus ASCII/RTU protocols. It can be used to allow Ethernet masters to control serial slaves, or to allow serial masters to control Ethernet slaves. Up to 16 TCP masters and 31 serial slaves can be connected simultaneously.

  • Page 3: Hardware Introduction

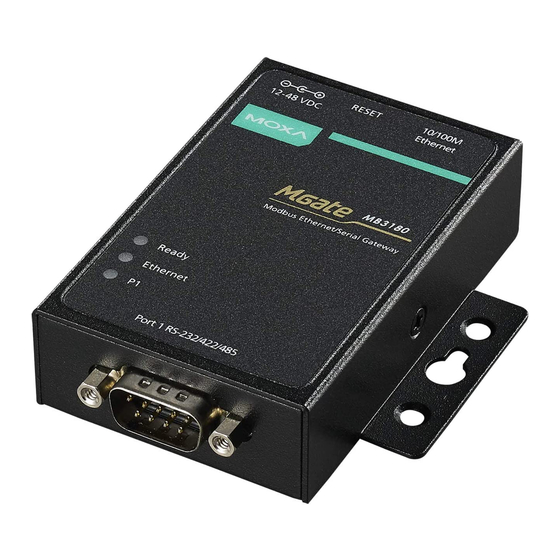

    Hardware Introduction As shown in the following figures, the MGate MB3180 has one DB9 male port for transmitting serial data. Reset Button—The reset button is used to load factory defaults. Using a pointed object such as a straightened paper clip to hold the reset button down for five seconds.

  • Page 4: Hardware Installation Procedure

    Ethernet cable if you are connecting the gateway directly to a STEP 3: Connect your device to the MGate MB3180’s serial port. STEP 4: Place or mount the MGate MB3180. The unit may be placed on a horizontal surface such as a desktop, mounted on a DIN rail, or mounted on the wall.

  • Page 5: Software Installation

    Search Utility (DSU) from Moxa's website: www.moxa.com. Please refer to the User’s Manual for additional details on using the MGate Manager and DSU. The MGate MB3180 also supports login via a web browser. Default IP address: 192.168.127.254 Default account: admin...

  • Page 6: Pin Assignments

    Pin Assignments Ethernet Port (RJ45) Signals Serial Port (Male DB9) RS-422/485 RS-485 (2- RS-232 (4-Wire) Wire) TxD-(A) – TxD+(B) – RxD+(B) Data+(B) RxD-(A) Data-(A) – – – – – – – – – Environmental Specifications Power Requirements Power Input 12 to 48 VDC Power Consumption 200 mA @ 12 VDC, 60 mA @ 48 VDC Operating Temperature 0 to 60°C (32 to 140°F)
