- Page 1 MGate 5216 Series Quick Installation Guide Version 1.0, September 2024 Technical Support Contact Information www.moxa.com/support 2024 Moxa Inc. All rights reserved. P/N: 1802052160010 *1802052160010*...
-
Page 2: Package Checklist

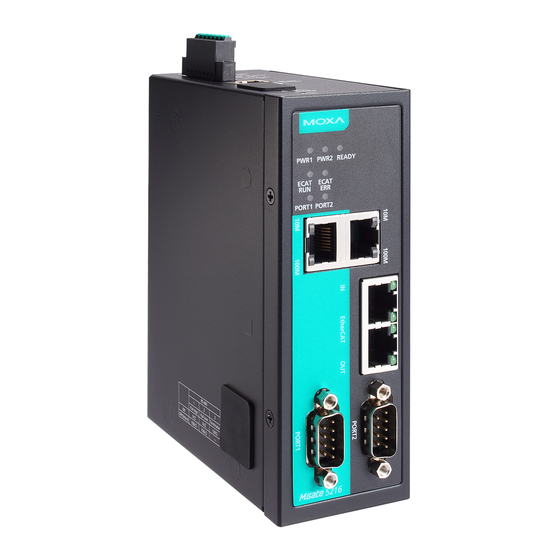

Overview The MGate 5216 is an industrial Ethernet gateway that converts data between the Modbus RTU/ASCII, proprietary serial, and EtherCAT protocols. All models are protected by a rugged metal housing, are DIN-rail mountable, and offer built-in serial isolation. Package Checklist Before installing the MGate 5216, verify that the package contains the following items: •... -
Page 3: Led Indicators
LED Indicators Color Description Green Power is on PWR1, PWR2 Power is off Steady: Power is on, and the MGate is functioning normally Green Blinking (1 second): The MGate has been located by the Moxa utility DSU Location function READY Steady: Power is on, and the MGate is booting up Blinking (0.5 second): Indicates an IP conflict, or the DHCP server is not responding properly... - Page 4 – – – – *Signal ground Console Port (RS-232) The MGate 5216 Series can use an RJ45 serial port to connect to a PC to configure the device. Signal Power Input and Relay Output Pinouts DC Power DC Power DC Power DC Power N.O.
- Page 5 Dimensions DIN-rail Mounting - 5 -...
-
Page 6: Hardware Installation Procedure
Wall Mounting Hardware Installation Procedure 1. Connect the power adapter. Connect the 12-48 VDC power line or DIN-rail power supply to the MGate terminal block. Make sure the adapter is connected to an earthed socket. 2. Use an EtherCAT cable to connect the MGate to an EtherCAT PLC or other EtherCAT master. -
Page 7: Software Installation Information
Software Installation Information Please download the user's manual and Device Search Utility (DSU) from Moxa’s website: www.moxa.com. Please refer to the User’s Manual for additional details on using the DSU. The MGate 5216 also supports login via a web browser. Default IP address: 192.168.127.254 Default account: admin Default password: moxa... - Page 8 Conditions of Safe Use 1. The manufacturers intend Ethernet communications devices to be mounted in a tool-accessible IP54 enclosure and used in an area with no more than pollution degree 2, as defined by IEC/EN 60664-1. 2. Conductors suitable for an ambient temperature greater than 85°C must be used for the power supply terminal.
- Page 9 NOTE This device is intended for use indoors and at altitudes up to 2,000 meters and below Pollution degree 2. NOTE Clean the device with a soft cloth, dry or with water. NOTE The power input specification should comply with the SELV (Safety Extra Low Voltage) requirements and the power supply should comply with UL 61010-1 and UL 61010-2-201 requirements.
