Great Little Trading L5353 Quick Start Manual

Great Little Trading L5353 Quick Start Manual

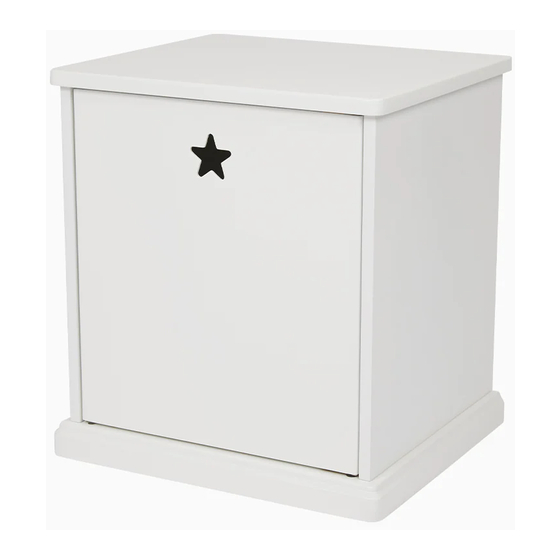

Star bright bedside cupboard

Advertisement

Quick Links

Star Bright Bedside Cupboard
L5353 & L5350
Assembly Difficulty
one-person job
easy -
medium
- hard
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
A few important pointers before you start:
Please read the instructions right through before you start, and
check that all the components have been included in the pack;
we find separating all the hardware into piles makes it easier to
be sure that everything is present and correct.
Make sure you have the right tools. Allen keys are provided
if required, but screw drivers and other tools are not. You'll
find details of the tools you need at the beginning of the
instructions.
It's a good idea to build the unit in the room where you are
going to be using it, to avoid the need to move it after it's been
assembled.
Do not throw away any packing materials until assembly is
complete, just in case you accidentally discard smaller parts or
hardware.
Could we do better?
If there is anything you think could be improved in these instructions or in the
assembly of this product we'd be grateful if you could let us know; we'll pass
any helpful hints and tips on to other customers via our website and update
the instructions.
All you need to do is drop us a line at instructions@gltc.co.uk
V1
Thank you
29/04/22
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the L5353 and is the answer not in the manual?

Questions and answers

Summary of Contents for Great Little Trading L5353

  • Page 1 Star Bright Bedside Cupboard • Please read the instructions right through before you start, and L5353 & L5350 check that all the components have been included in the pack; we find separating all the hardware into piles makes it easier to be sure that everything is present and correct.
  • Page 2: Safety Warnings

    SAFETY WARNINGS! AVERTISSEMENTS! • Adult assembly required. • L’assemblage doit être réalisé par un adulte. • In an unassembled state product contains small parts which may pose a choking hazard, not • Le produit non assemblé contient de petites pièces qui peuvent présenter un risque suitable for children under 3 years.
  • Page 3 WARNHINWEISE! ADVERTENCIAS! • Zusammenbau durch einen Erwachsenen erforderlich. • El montaje debe hacerlo un adulto. • Im nicht zusammengebauten Zustand enthält das Produkt Kleinteile, die eine Erstickungsgefahr • El producto contiene piezas pequeñas que, sin montar, pueden suponer un riesgo de asfixia, darstellen können und ist daher für Kinder unter 3 Jahren nicht geeignet.
  • Page 4: Component Checklist

    Component Check List Hardware Check List 4x Bolts 4x Barrel Nuts 42mmL 4x Cam Dowels 4x Cam Locks 35mmL 14mm Diameter 1x Base Panel 1x LH Side Panel 1x Screw 6x Screws 10mmL 14mmL 12x Screws 8x Wooden Dowels 16mmL 20mmL 1x RH Side Panel 1x Top Panel...
  • Page 5 STEP 1: STEP 2: Attach the base panel - position the base panel with rounded corners facing up, grooved Fit the magnetic catch (#14) to the underside of the top panel D using 2x screws edge on the floor. (#7) . Insert 4x cam dowels (#3) and 4x wooden dowels (#8) to the underside of Insert 4x wooden dowels (#8) into the inner holes on the base panel A.
  • Page 6 Hardware for Step 3: Hardware for Step 5: STEP 3: Fit the back panel E with 10x screws (#7). 10x #7 Screws 16mmL 1x #11 Keeper Plate 1x #5 Screws 10mmL 1x #12 Lower Hinge 3x #6 Screws 14mmL STEP 5: Prepare the door - all the work is on the inside of the door.
  • Page 7 2x #6 Screws 14mmL Hardware for Step 6: 1x #15 Hinge Stopper 1x #10 Top Hinge 1x #6 Screws 14mmL Copyright© 2013 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.

This manual is also suitable for:

L5350
