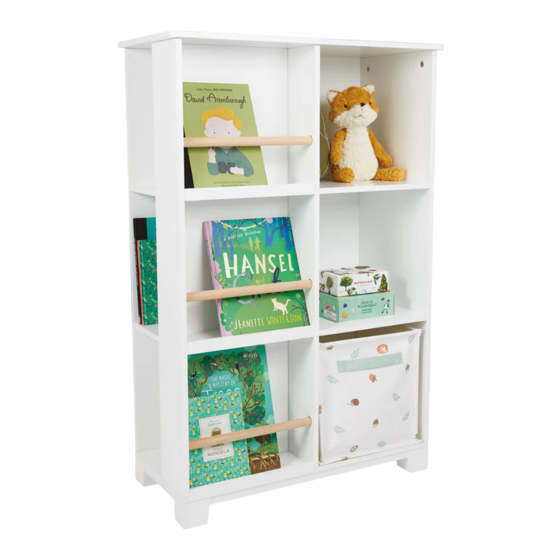

Wonderland Bookcase
Assembly Difficulty
one-person job
easy -
medium
- hard
L5291
V1
27/10/2021
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.
A few important pointers before you start:
•
Please read the instructions right through before you start, and
check that all the components have been included in the pack;
we find separating all the hardware into piles makes it easier to
be sure that everything is present and correct.
•
Make sure you have the right tools. Allen keys are provided
if required, but screw drivers and other tools are not. You'll
find details of the tools you need at the beginning of the
instructions.
•
It's a good idea to build the unit in the room where you are
going to be using it, to avoid the need to move it after it's been
assembled.
•
Do not throw away any packing materials until assembly is
complete, just in case you accidentally discard smaller parts or
hardware.
1
Advertisement
Related Manuals for Great Little Trading Wonderland Bookcase L5291
Summary of Contents for Great Little Trading Wonderland Bookcase L5291
- Page 1 Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make assembling this item as quick and painless as possible. Wonderland Bookcase A few important pointers before you start: L5291...
- Page 2 Safety Warnings: Customer Service: • Adult assembly required. • If you find that any components are missing or damaged, please do not begin assembly and do not use the item. Please contact GLTC • Unassembled product contains small parts which may present a choking Customer Services on 0344 848 6000 immediately.
-
Page 3: Component Checklist
Component Check List Component Check List 1x Top Panel 2x Batons 1x Front Vertical 2x Shelves Divider 1x Back Panel (Main Storage) 1x LH Side Panel Hardware Check List 1x Side Vertical Divider (Storage Side) x 17 Cam Dowels x 36 Wooden Dowels 1x RH Side Panel 3x Wooden Poles (Full Depth) - Page 4 STEP 1: STEP 2: Working on a protective surface like a carpet or a rug, take Take the side vertical divider panel (C) and push into the slots front vertical divider panel (B) and position with the slots on the 2x shelves (A) on the left hand side. facing up and the large drill holes on the side facing left (as Ensure panel (C) is positioned with any drill holes facing the shown).
- Page 5 STEP 4: STEP 3: Hardware for Step 3: Hardware for Step 4: Adding the wooden poles and the book storage side panel. Prepare LH side panel (D) by inserting 2x cam dowels (#1) into the Firstly, add 2x wooden dowels (#2) into the outer holes in central drill holes as shown using a the ends of BOTH shelf panels (A).
- Page 6 STEP 5: Hardware for Step 6: Hardware for Step 5: Prepare the RH Side panel (F) by inserting 4x cam dowels (#1) into the outer holes on each set of drill holes. 4x #1 Cam Dowels 4x #2 Wooden Dowels 4x #3 Cam Locks (With larger drill holes)
- Page 7 STEP 7: STEP 8: Hardware for Step 7: Hardware for Step 8: Prepare the thicker back panel (G) by Insert 2x wooden dowels (#2) into the inner inserting 4x cam dowels (#1) into the outer holes on the edges of BOTH shelf panels (A). holes on each set of drill holes.
- Page 8 STEP 9: STEP 10: Hardware for Step 10: Hardware for Step 9: Take top panel (I) and base panel (H) and position Add the base panel. with the drill holes facing up. Start by inserting 2x barrel nuts (#5) into the 10x #2 Wooden Dowels Insert 5x cam dowels (#1) into the holes shown on holes on the inside face of side panel (F).
- Page 9 STEP 12: STEP 11: Hardware for Step 12: Hardware for Step 11: Attach the top panel. Attach the 2x batons (J) on each side of the base panel. Insert 10x wooden dowels (#2) into the 10x #2 Wooden Dowels following panels: Insert 2x wooden dowels (#2) into the holes 4x #2 Wooden Dowels next to the feet.
- Page 10 STEP 14: STEP 13: Hardware for Step 14: Hardware for Step 13: Carefully stand the unit up on its feet. Attach the remaining back panel. Position back panel (K) on the unit and check Add the final cam lock into the drill hole on the inside of side panel (D), it is accessed through the alignment of the holes in the panel with 14x #7 Back Panel Screws...
- Page 11 Your unit is now ready to be attached to the wall using hardware that is suitable for the walls in your home. Copyright© 2022 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
